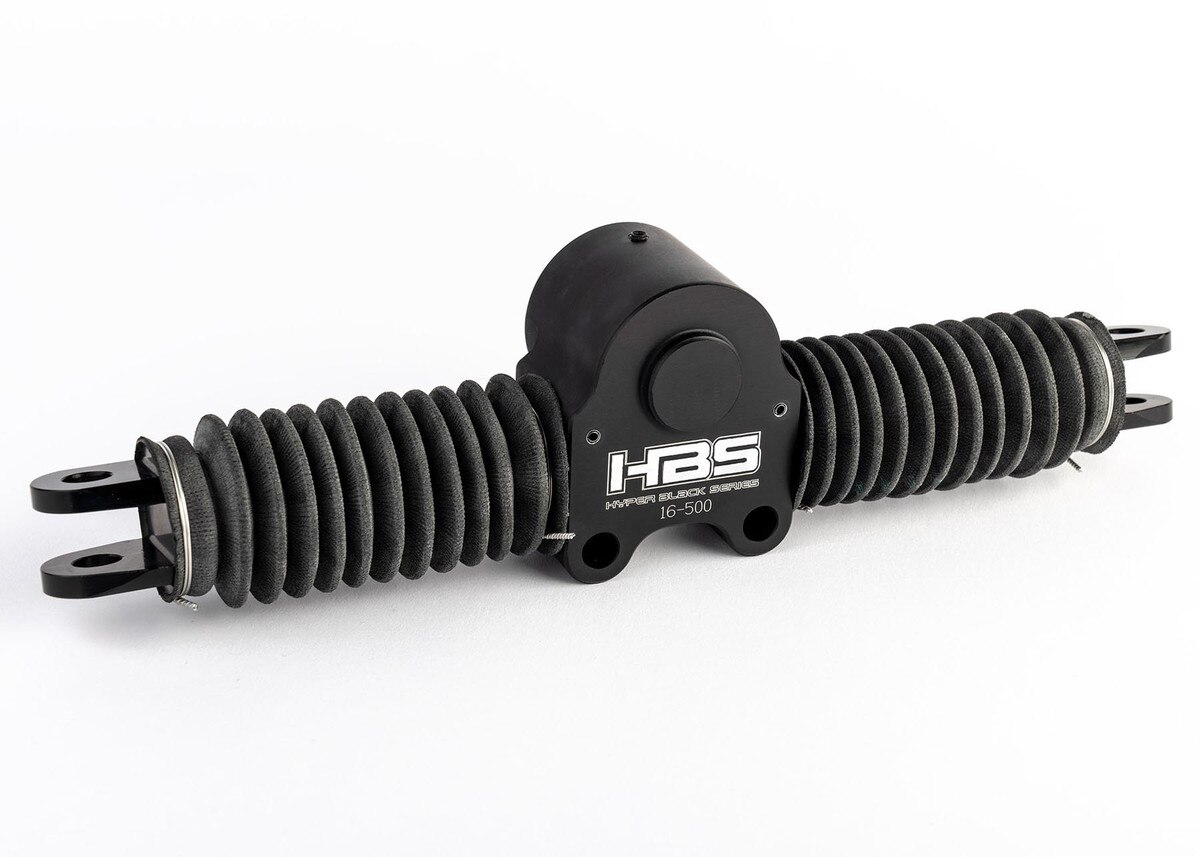

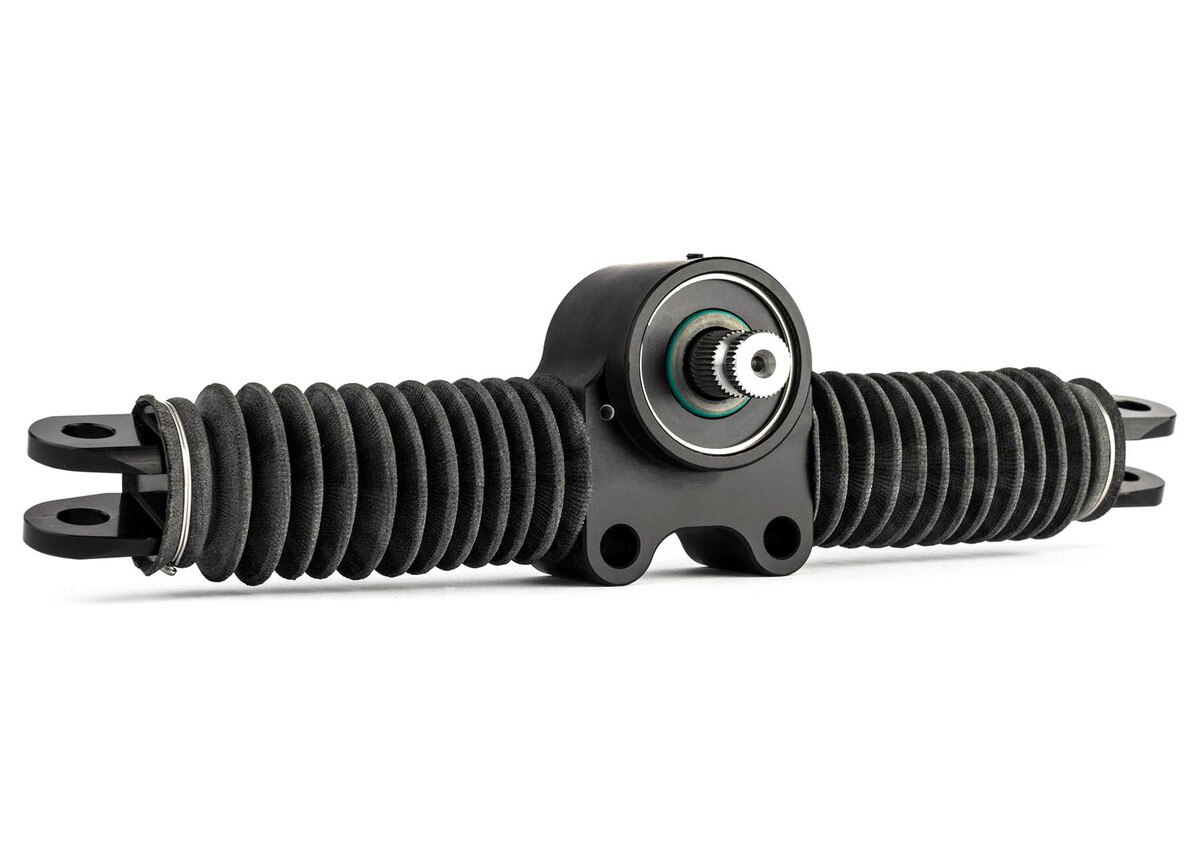

HBS Axle Mounted Steering Box 7/16"

SKU 16-500
$389.00
(0)No Reviews yet

This item is IN STOCK

Current Stock: 43

Brief Description

Steering Box, HBS Axle Mounted Steering Box, with 7/16" Rod Ends for 600 Micro Sprint

Details

Fits Hyper Chassis or other cars using an axle mounted rack box.

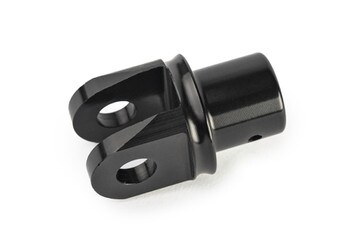

Designed to accept 16-194 (3"), 16-193 (2-3/8") steering arms. Rack has aluminum clevises for a 7/16" rod end and are 15 degrees from the face. 5/8"-36 spline. 3/8" mounting holes. Use with one of our splined steering columns and 16-600,16-625, or 16-622 (Ti) universal.

Tighten the 3/8" mounting bolts to 20-22 foot-pounds and use thread locker. Tightening these bolts too much can result in the rack box not being able to steer easily.

Box may feel a little tight until after the first race due to the exact tolerances it is machined to and the effort to eliminate any play.

  • Ratio: One turn of steering wheel = 4.8" of travel of rack.
  • Total stroke of the rack is 4-1/8"
  • Center to center of steering rod mounts is 11"
  • Mounting holes to mount rack to axle (or clamp) is 1-3/4", 3/8" diameter
  • Distance from rack centerline to pinion centerline is 1"
  • Distance from rack centerline to mounting holes is 3/4"
  • Housing of pinion is 2" deep
