Steering Arm, Deluxe Spindle, Axle Mount Box

SKU 16-194
(0)No Reviews yet

Brief Description

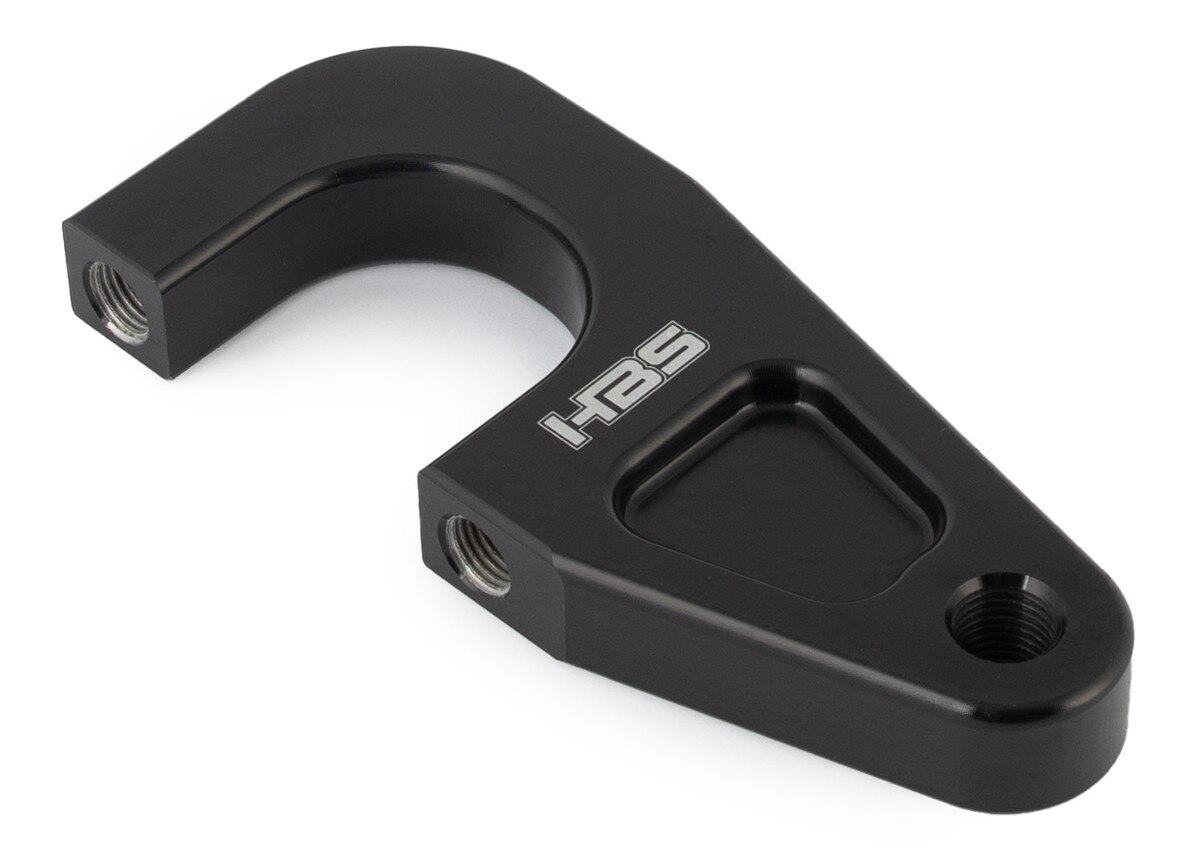

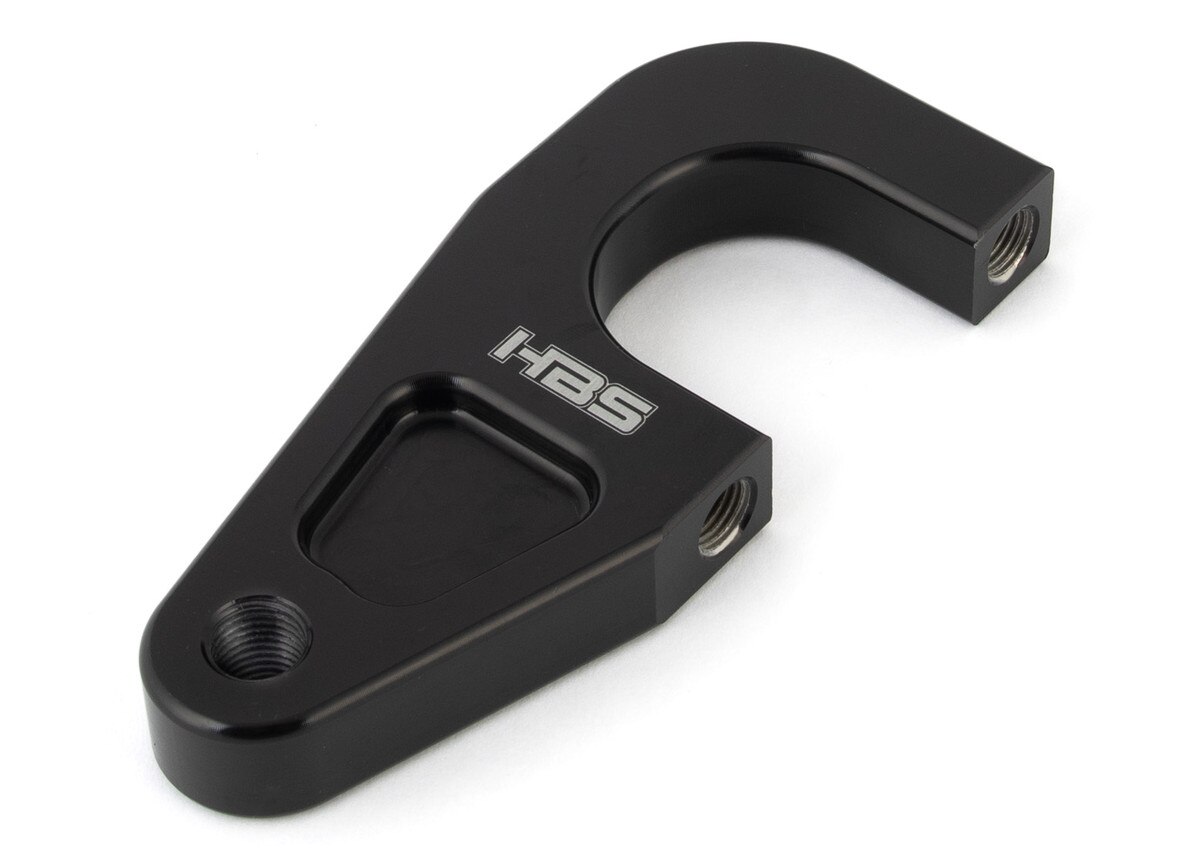

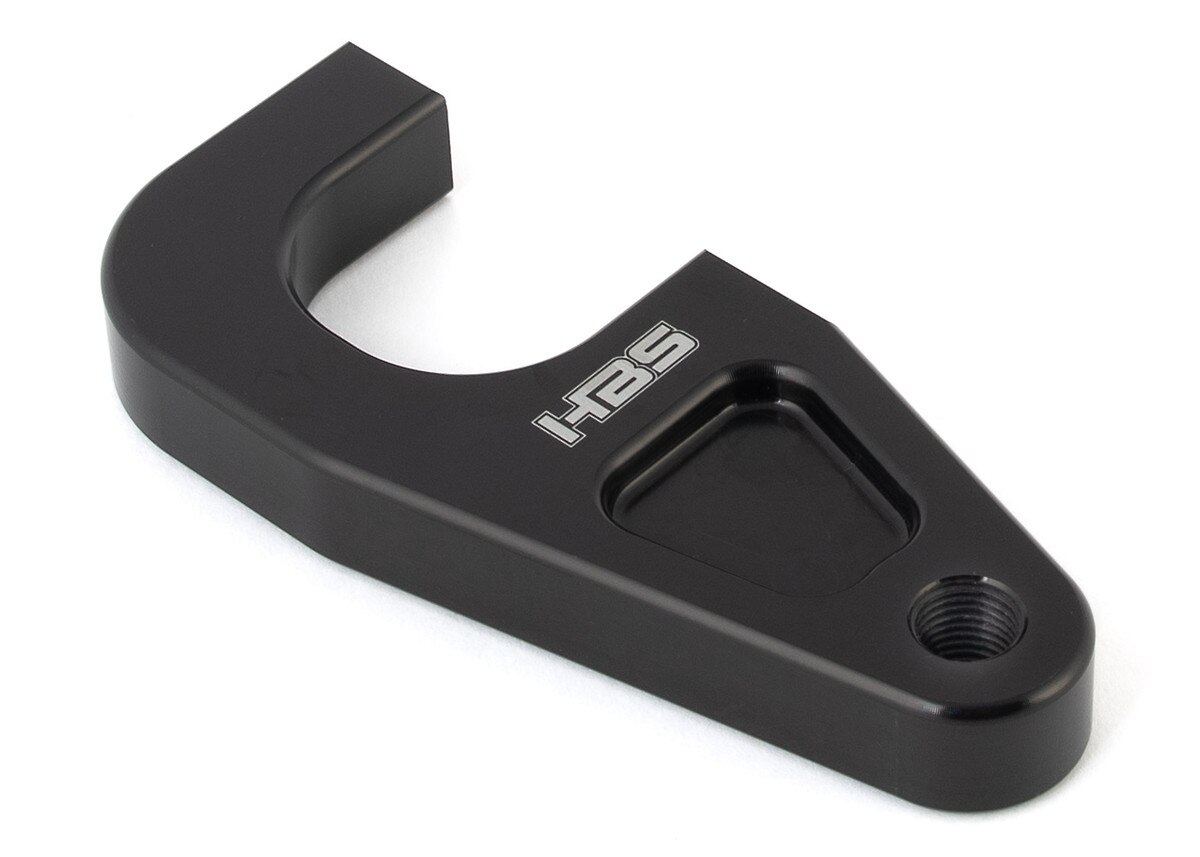

Steering Arm for HBS Deluxe Spindle, Axle Mount Steering Box


This new design for 2020 features a threaded hole for the steering rod. This will help eliminate any play in the bolt hole which can cause toe misalignment during contact.

Fits both right and left sides. Use only with the axle mounted steering box. Holes are closer to the king pin than 16-1965. Distance is 3.00" from the steering rod mounting hole to the center of the king pin. This is the steering arm that comes standard on 2004 and up Hyper 600 Sprint Chassis.

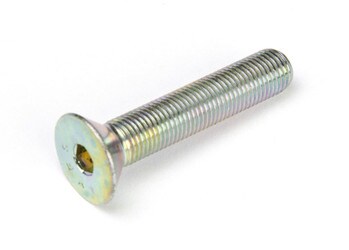

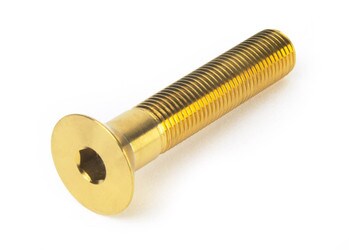

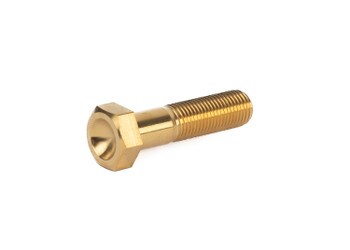

Bolt hole spacing for mounting to the spindle is 2-1/8". Uses 3/8"-24 x 1-1/2" HHCS bolts or 3/8"-24 x 2" long flat head cap screws (FHCS) when using the 366-050 Front Brake Caliper.
