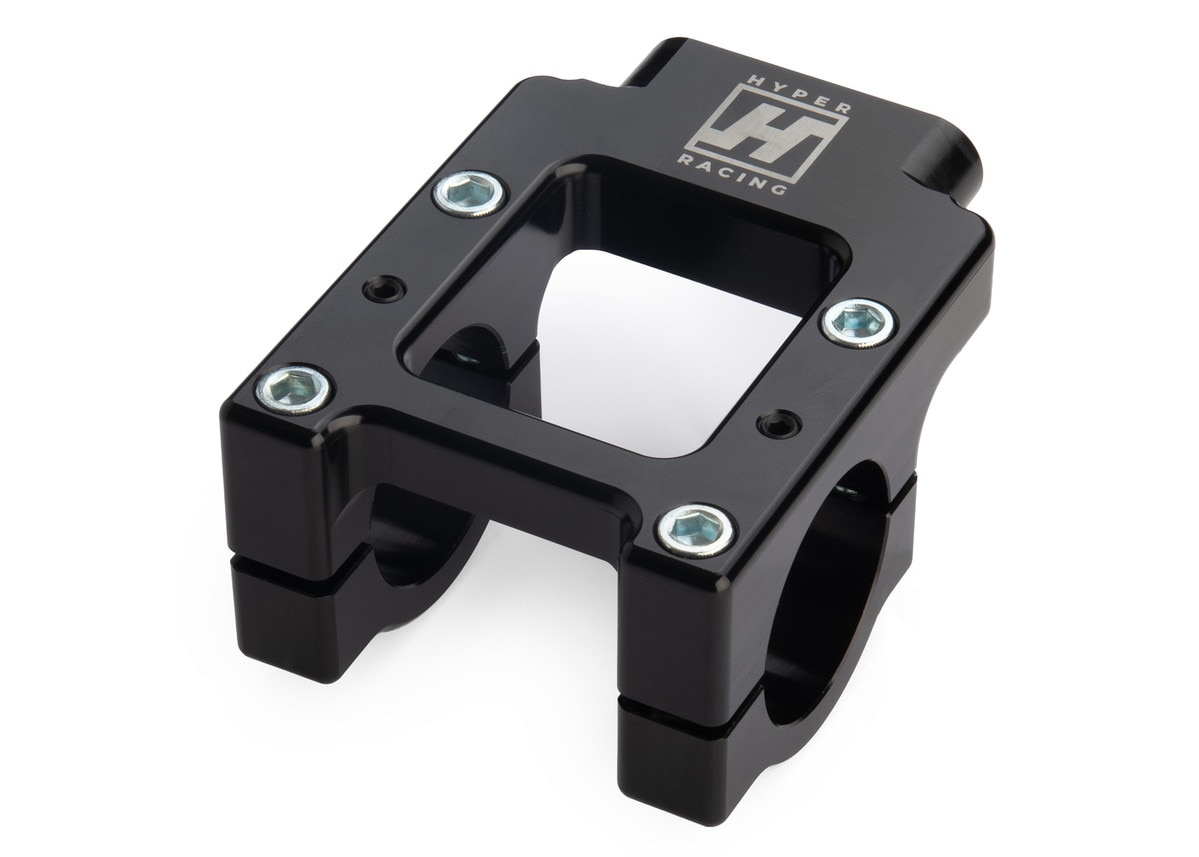

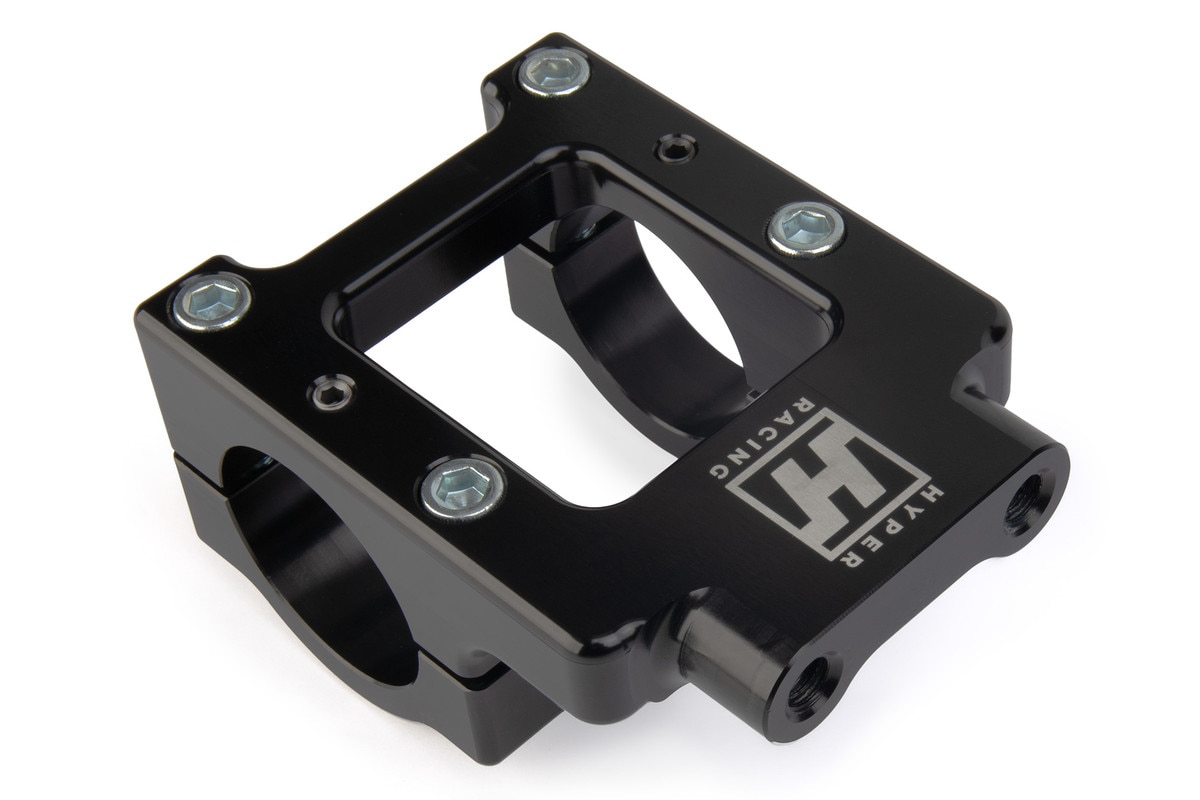

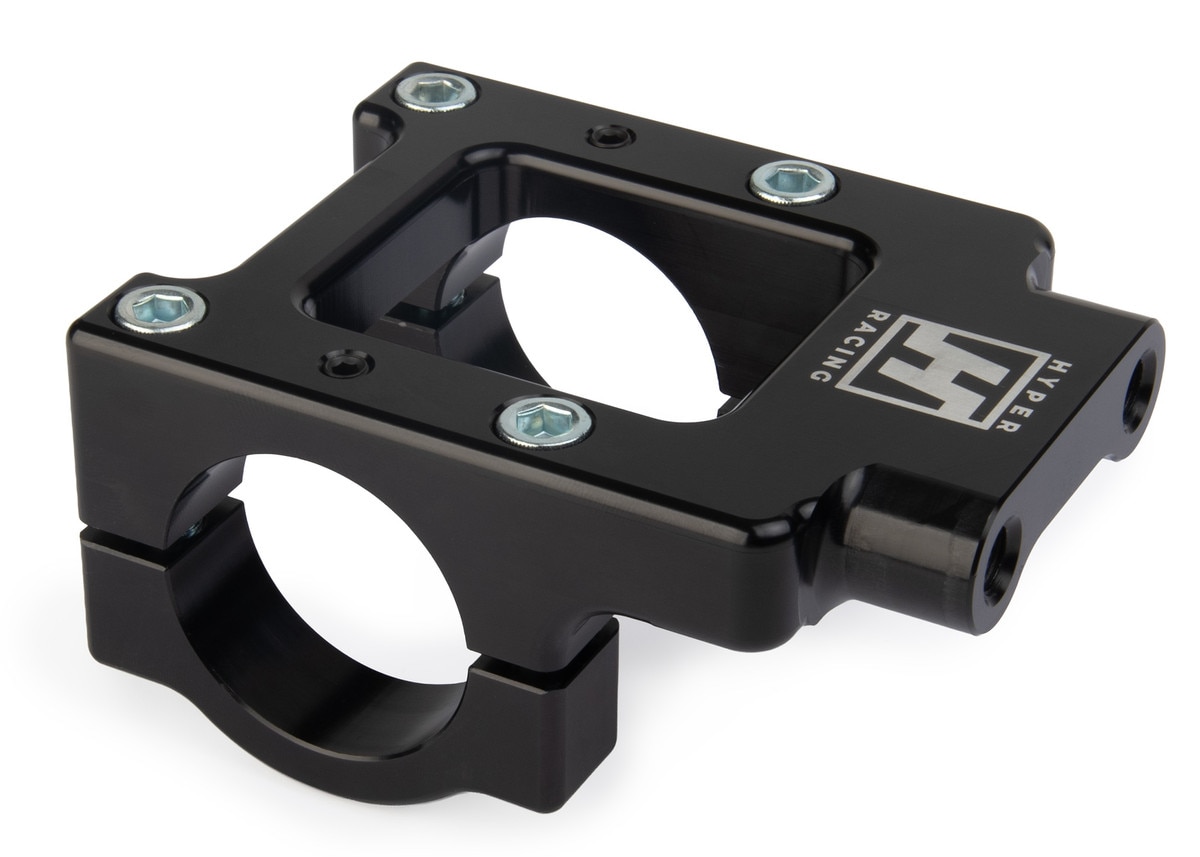

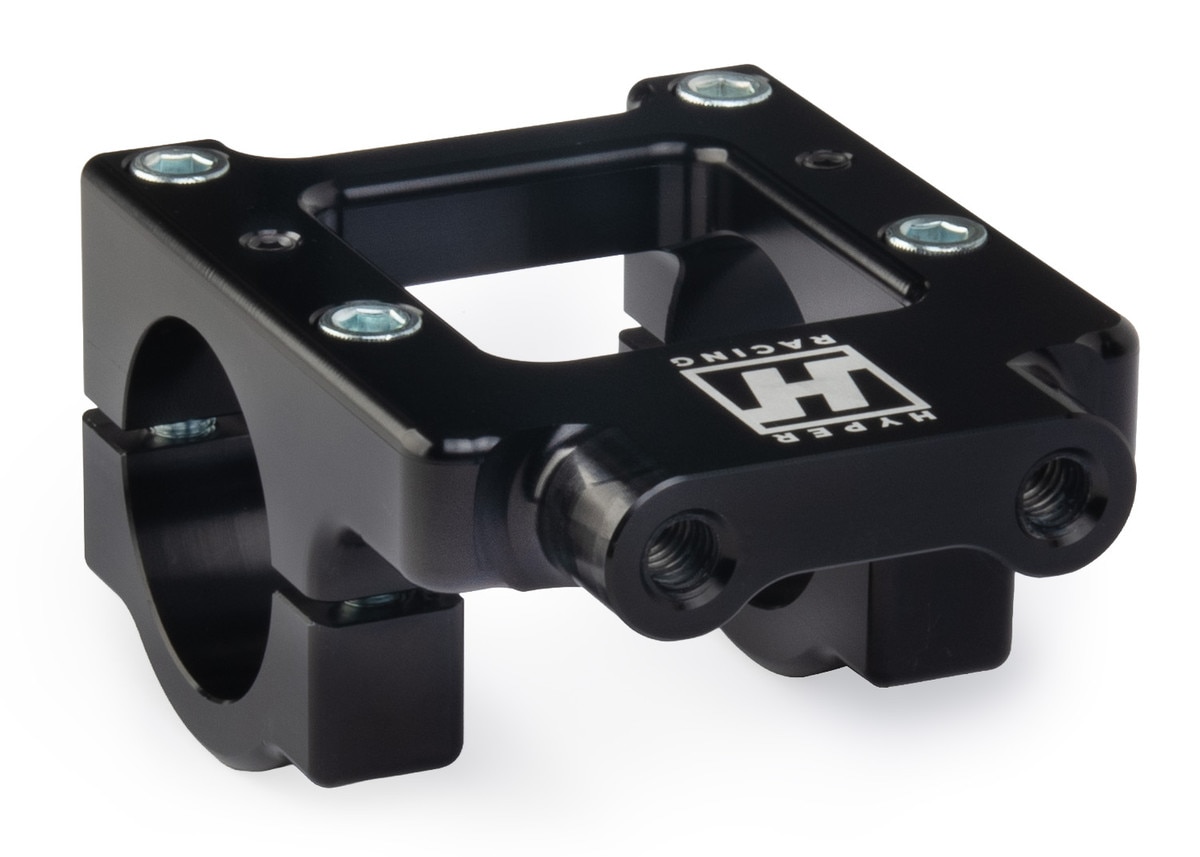

1-3/4" Axle Mount Steering Box Clamp, Heavy Duty

Built to Hold. Engineered to Stay Put.
This heavy-duty clamp is designed to deliver serious clamping power where it matters most so you can help eliminate the rack box sliding on the front axle.

Why It’s Stronger

• Uses 5/16-24 ASTM A574 bolts (stronger than Grade 8)
• Upgraded from the 1/4-20 bolts used in the 16-527 clamp
• Four bolts deliver 20,880 lbs of clamping force compared to 11,440 lbs on the 16-527, that’s nearly double the clamping strength
• Two cone point ¼-28 set screws further secure the clamp into position

Optimized Steering Geometry

• Positions the rack box further from the front axle centerline
• Keeps steering rods more parallel to the front axle creating a more consistent steering ratio
• Designed for use with axle-mounted steering boxes 16-540, 16-500, 16-499, and 16-498

Pro Tip for Maximum Holding Power

• Apply anti-seize or heavy grease to the bolt threads. This reduces thread friction and increases effective clamping force without requiring additional torque.

HYPER RACING’S GOLD STANDARD: Components marked with the gold H-Mark logo are part of Hyper Racing’s Gold Standard lineup, recommended for X4–X7 600cc Micro Sprint Chassis. Each one is tested and proven to deliver the highest level of performance, giving you confidence that you’re running parts built to meet our standard.
