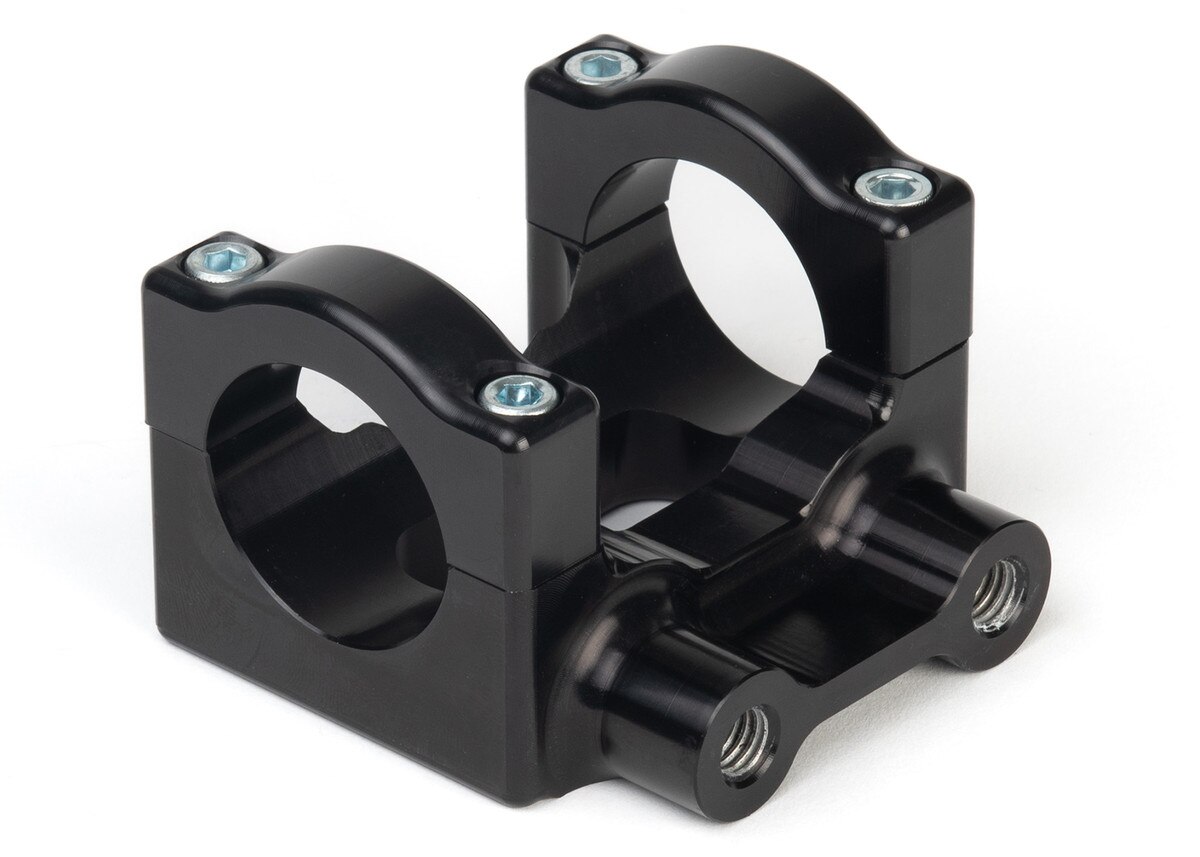

1-1/2" Axle Mount Clamp, Junior Sprint

Use with our axle mounted steering box, 16-540 or 16-500. This clamp is made just like our 16-526 except the 1/4" screws are inserted from the opposite direction because this clamp is mounted upside down on our Junior Sprints. 6061 T-6 aluminum.

To help stop the clamp from sliding in a crash, use anti- seize or heavy grease on the screw threads. This will provide considerably more clamping force and less force needed to overcome thread friction.

Use (2) 3/8"-16 x 2-1/4" long hex head cap screws to hold rack box onto this clamp. Tighten the 3/8" mounting bolts to 20-22 foot-pounds and use thread locker. Tightening these bolts too much can result in the rack box not being able to steer easily.
