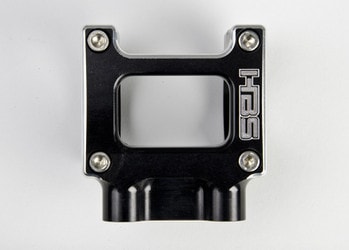

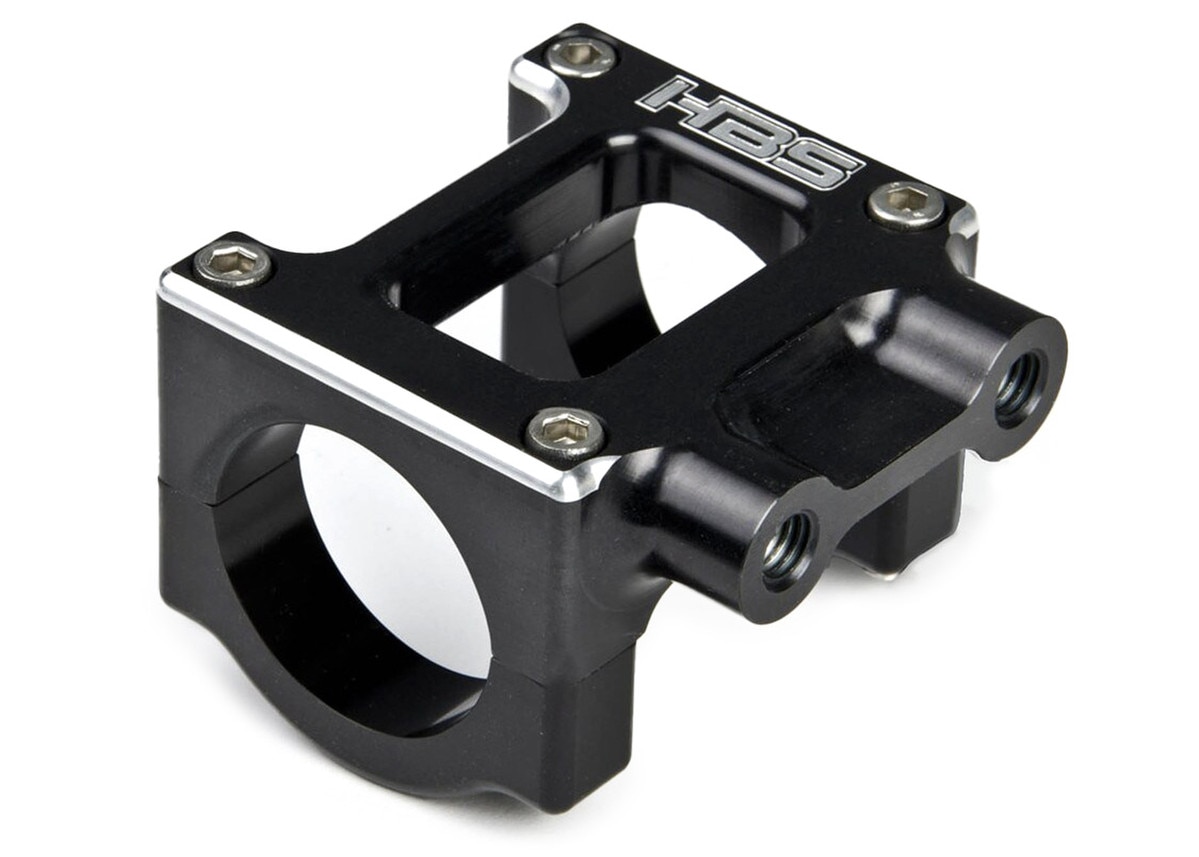

1-3/4" Axle Mount Clamp

Use with our axle mounted steering box 16-540 or 16-500.

To help stop the clamp from sliding in a crash, use anti- seize or heavy grease on the screw threads. This will provide considerably more clamping force and less force needed to overcome thread friction.

Use (2) 3/8"-16 x 2-1/4" long hex head cap screws to hold rack box onto this clamp.

Tighten the 3/8" mounting bolts to 20-22 foot-pounds and use thread locker. Tightening these bolts too much can result in the rack box not being able to steer easily.
