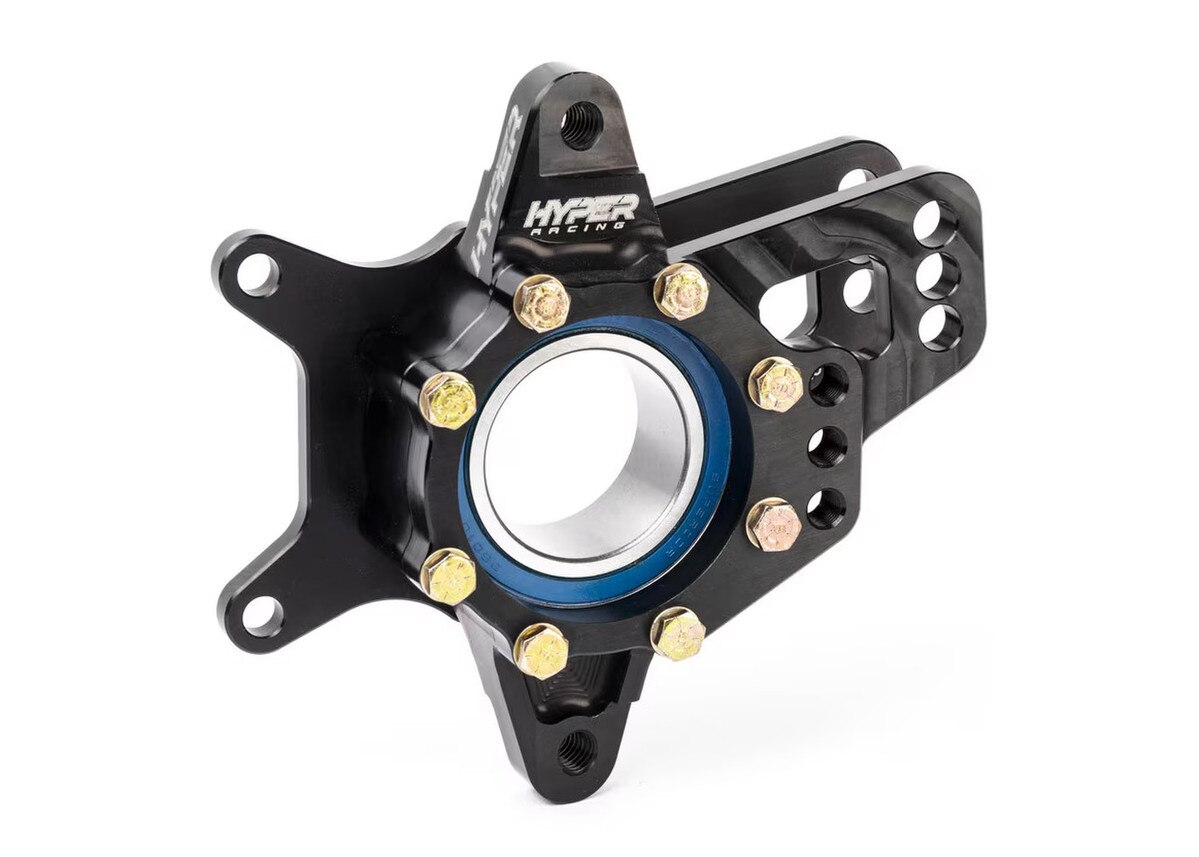

2" 2X7RJBS Bearing Carrier 2P 9 Short Wheelbase

For 2" Splined Rear Axle. Fits the X7 Chassis on the right side. Use when configuring for the short wheelbase, rear axle forward location. Use this bearing carrier to mount the 2-piston Wilwood Dynalite Single brake caliper 36-100 (no brake floater) on a 9-1/4" rotor. 3-1/4" brake mount bolt center distance.

CNC machined Bearing Carrier includes double row angular contact bearing, bubble level, and grease fitting. Control arm mount distance is 6".

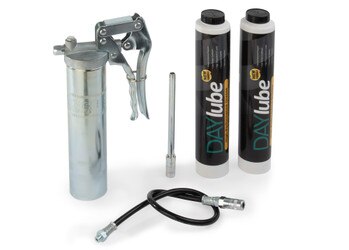

We recommend the bearings be greased with DAYLube™ High Performance Grease 77-800 or 77-805.

Hardware:

• (8) ¼-20 x 2" HHCS with (8) ¼" AN washers

Additional hardware not included in kit:

• (2) 7/16-14 x 1-¼" HHCS to attach the wishbone
• (2) 3/8-24 x 1¼" HHCS with (2) 3/8" AN Washers and (2) 3/8" nylock half nuts to attach brake caliper to birdcage
