X7 or X6 Left Side Bearing Carrier, Build Your Own

Click the Configure button to specify our fully customizable X7 or X6 Left Side Bearing Carrier for your Hyper Chassis.

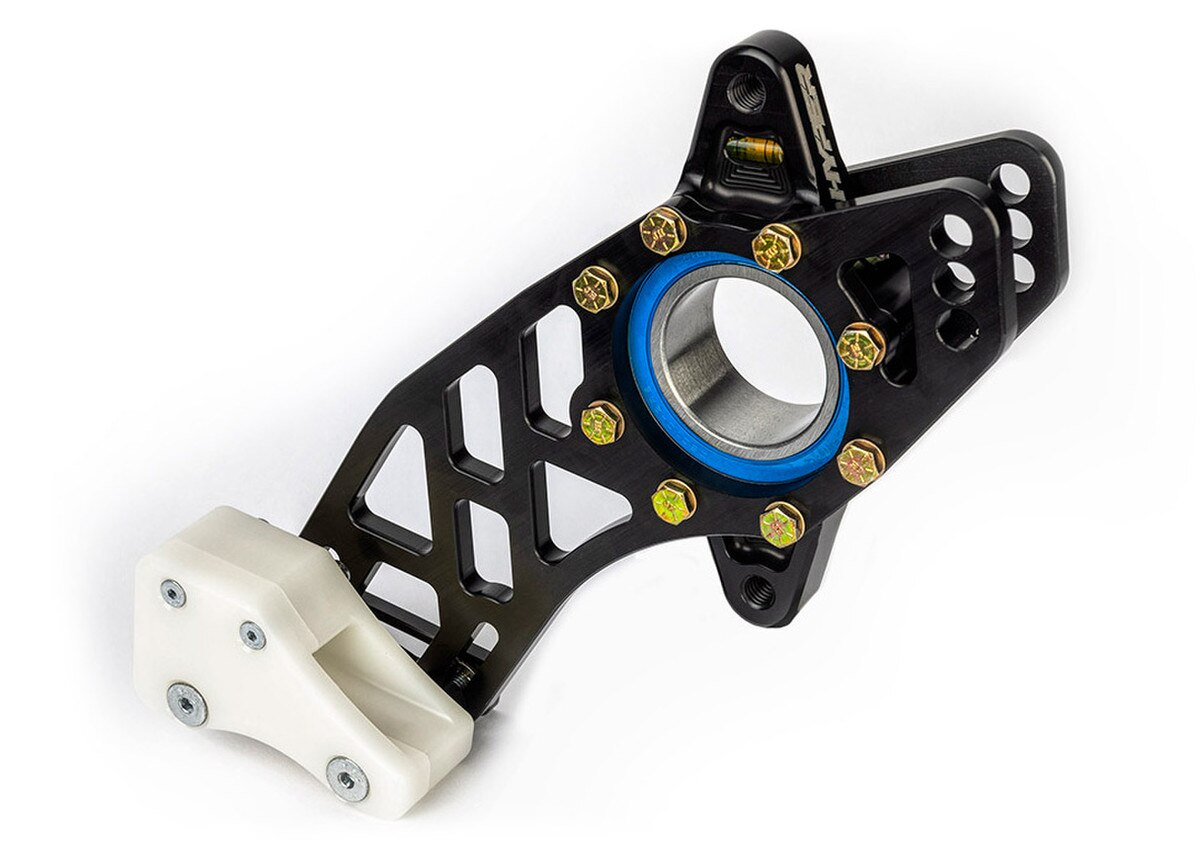

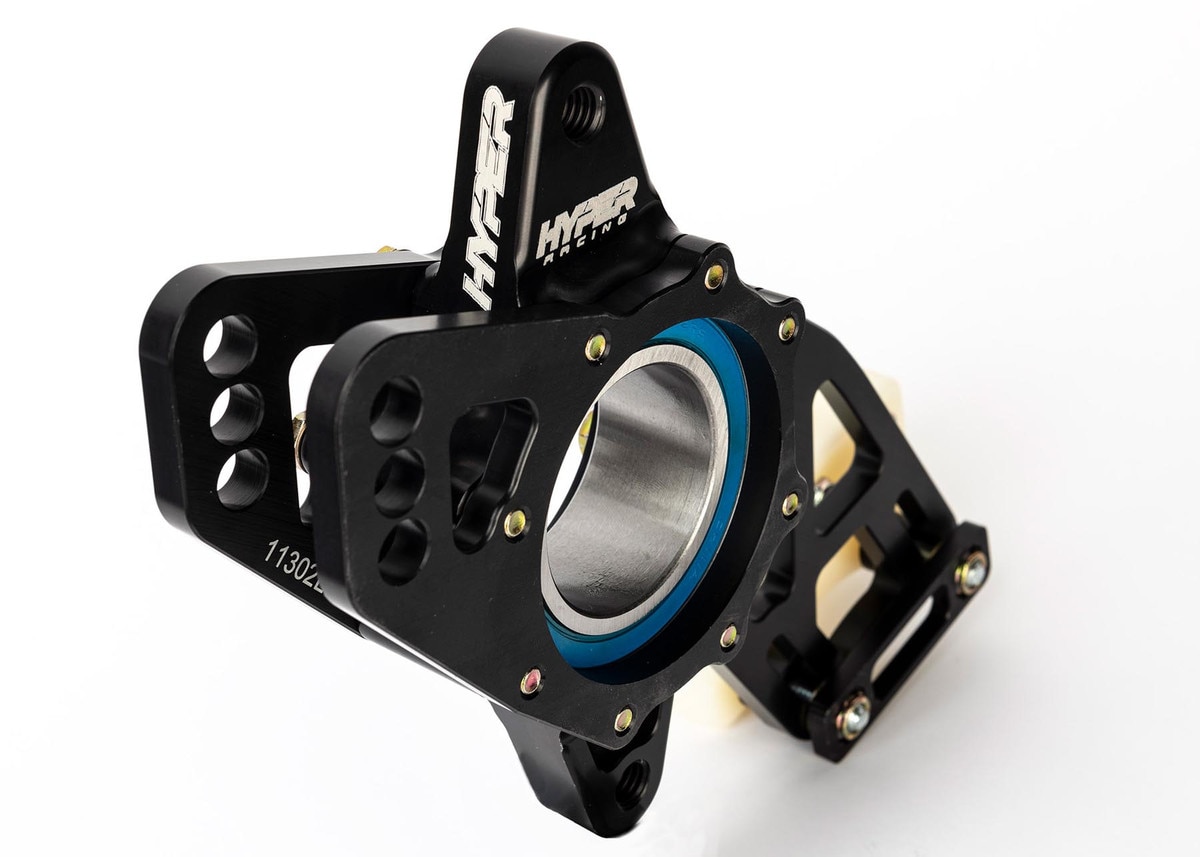

CNC machined Bearing Carrier includes double row angular contact bearing, bubble level, and grease fitting. Control arm mount distance is 6".

Grease bearings before the first use with DAYLube™ High Performance Grease 77-800 & 77-805.

Hardware:
(8) 1/4-20 x 2" HHCS
To fasten Chain Guide Block, refer to the spacer size below.
(2) 5/16-18 x 4" FHCS with (2) 5/16" hard washers for the 1-1/4" or 1-1/2" spacers
(2) 5/16-18 x 3-1/2" FHCS with (2) 5/16" hard washers for the 1" or 3/4" long spacers
(2) 5/16-18 x 3" FHCS with (2) 5/16" hard washers for 1/2" or 5/16" spacers

HYPER RACING’S GOLD STANDARD: Components marked with the gold H-Mark logo are part of Hyper Racing’s Gold Standard lineup, recommended for X4–X7 600cc Micro Sprint Chassis. Each one is tested and proven to deliver the highest level of performance, giving you confidence that you’re running parts built to meet our standard.
