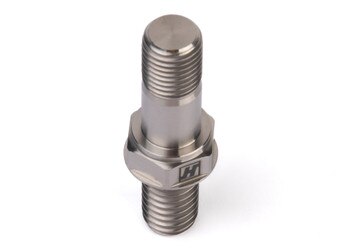

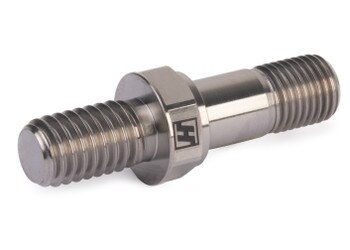

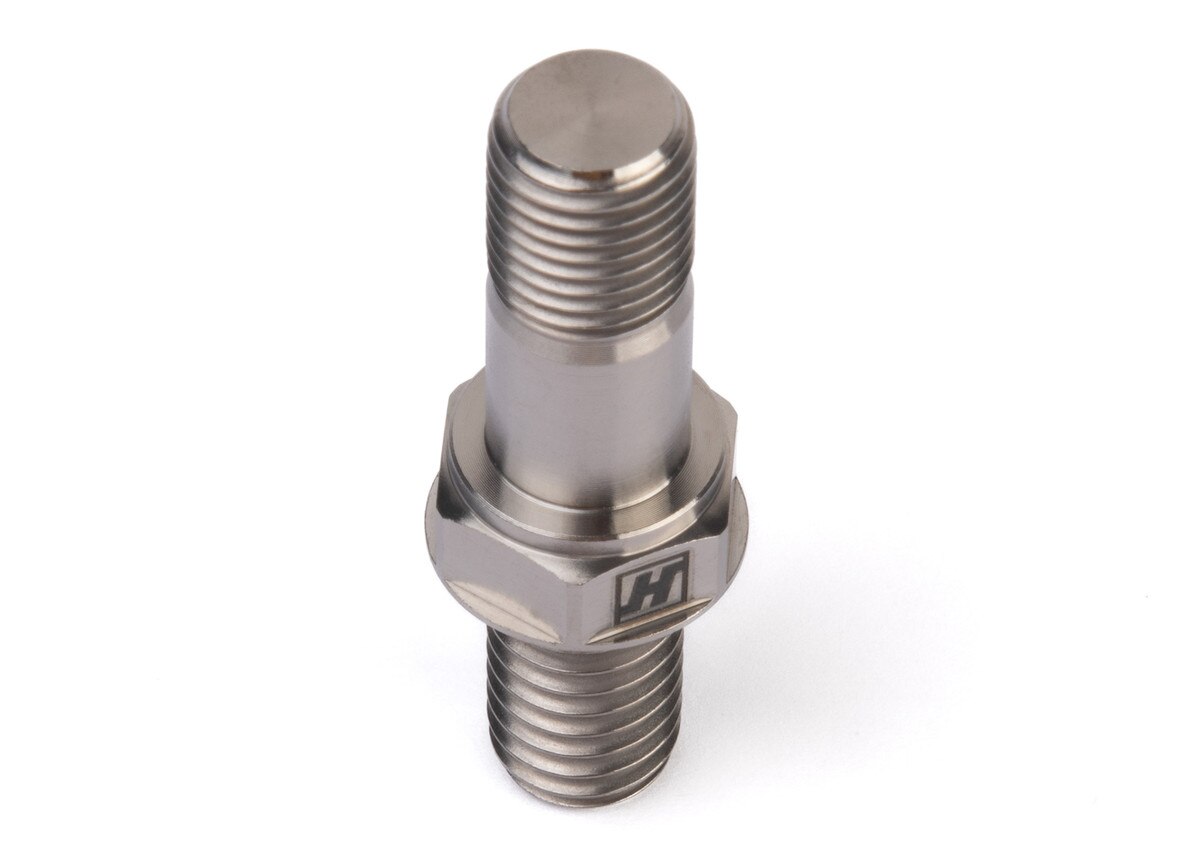

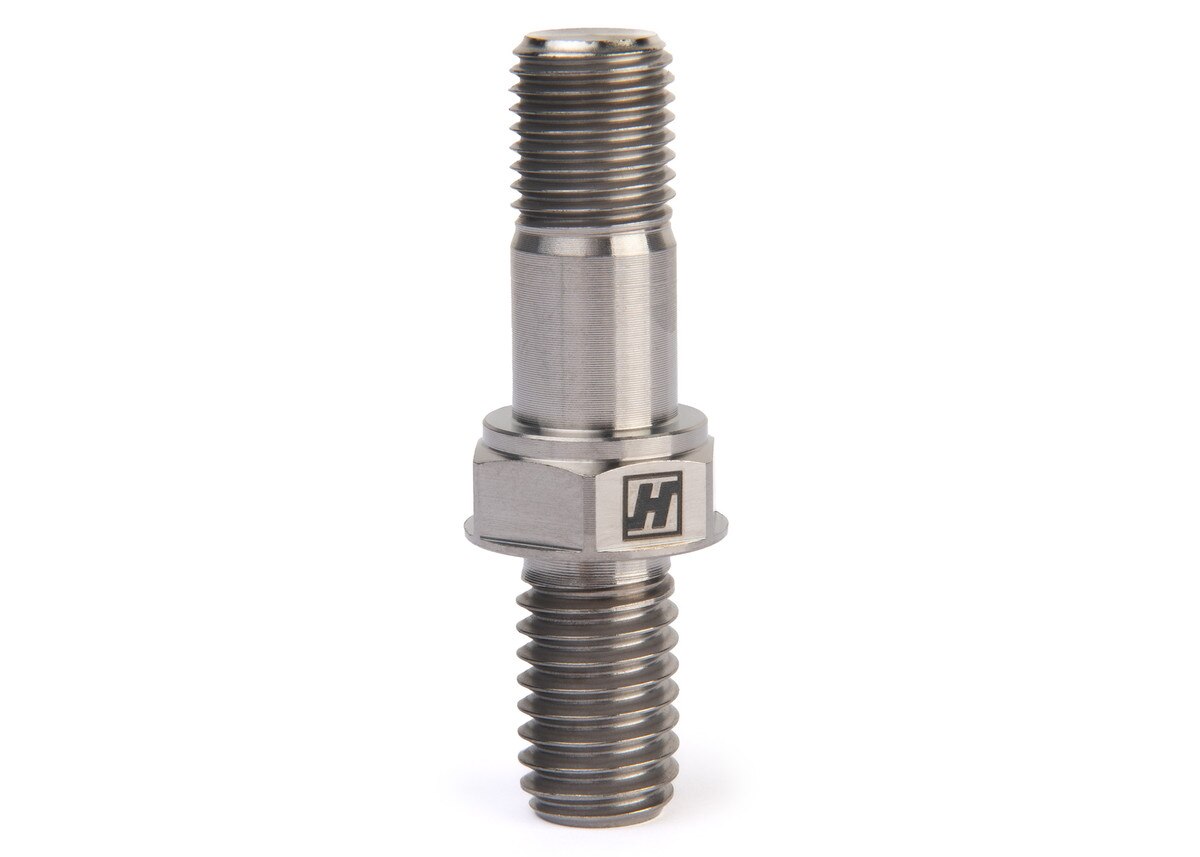

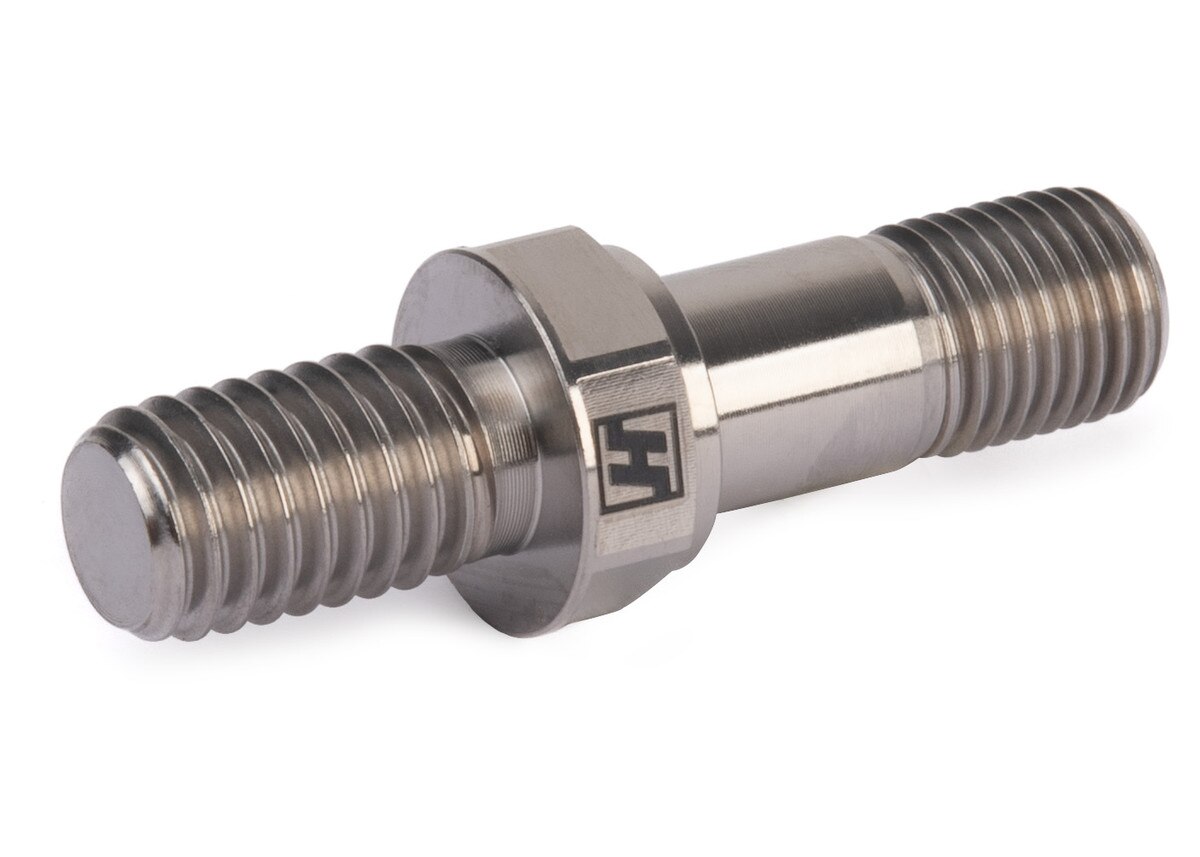

Wishbone Stud for Bearing Carrier, Titanium

Our H-Mark Wishbone Stud just made mounting your wishbones a whole lot easier.

Built in shoulder provides an increased misalignment angle to help prevent binding of the wishbones rod ends.

The machined in washer prevents gouging of the bearing carrier by the hex.

Made from the highest quality 6AL4V Titanium for maximum strength and weight reduction.

During the manufacturing process of the wishbones, welding tension will cause unpredictable misalignment of the rod ends with the bearing carriers. This makes mounting the wishbones a challenge. This stud will make this job much easier.

7/16-20 threads for rod end side, 7/16-14 threads on bearing carrier side. 2-1/16" overall length, 5/8" hex for wrench

Blue Loctite is recommended.
