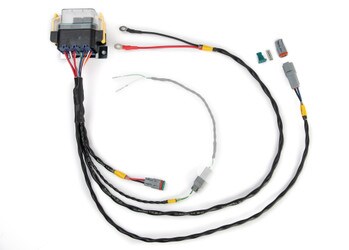

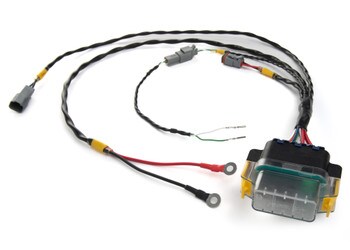

Raychem Fuel Pump and Fan Relay Assembly

The Raychem Relay Assembly is for ECU controlled fuel pump and fan activation. It eliminates the use of a dash mounted manual switch for the fan and fuel pump.

***Important, you will need to purchase the 608-4192 ECU Pigtailseparately as this is different for each ECU make.***

Using the ECU to control the fuel pump is much safer than a manual switch as the fuel pump will shut off automatically when the engine stops to prevent fuel from pumping out any broken lines or fittings as soon as possible. It also allows data extraction from the ECU without the fuel pump running the entire time. The Fan relay will automatically turn the fan on and off preventing the engine from overheating or running too cool.

Includes one ECU relay harness adapter to pin into the ECU which is what actuates the relays to turn the pump and fan on and off. If you have a spare ECU, you will want to purchase a second ECU relay adapter harness 608-4192.

Includes one connector to add to your existing fan.

Features Raychem DR-25, TXL wire, and Deutsch style connectors.

Fuel Pump Relay Signal Wires in ECU’s (green wire on pigtail)

Yamaha R6 ’03-’05 - Pin 32 (OEM wire color - light green)

Yamaha R6 ’08-’16 - Pin 23, left connector (OEM wire color - blue/yellow)

Yamaha R6 ’17 & Up - Pin 30, right connector (OEM wire color - blue/white)

Suzuki GSX-R ’08 & Up - Pin 4, left connector (OEM wire color - yellow/black)

Kawasaki ZX-6R ’05-’06 - Pin 4, left connector (OEM wire color - brown/yellow)

Kawasaki ZX-6R ’09-’12 - Pin 12, right connector (OEM wire color - brown/yellow)

Kawasaki ZX-6R ’13-’18 - Pin 7, right connector (OEM wire color - brown/yellow)

PE3 - Digital output 1 Pin 11, left connector (Hyper wire color - light green)

Fan Relay Signal Wires in ECU’s (white wire in pigtail)

Yamaha R6 ’03-’05 - Pin 42, (OEM wire color - green/yellow)

Yamaha R6 ’08-’16 - Pin 5, left connector (OEM wire color - blue/yellow)

Yamaha R6 ’17 & ’Up - Pin 20, right connector (OEM wire color - green/yellow)

Suzuki GSX-R ’08 & ’Up - Pin 6, left connector (OEM wire color - green/red)

Kawasaki ZX-6R ’05-’06 - Pin 6, left connector (OEM wire color - black/blue)

Kawasaki ZX-6R ’09-’12 - Pin 13, right connector (OEM wire color - black/blue)

Kawasaki ZX-6R ’13-’18 - Pin 17, left connector (OEM wire color - black/blue)

PE3 - Digital output 2 Pin 2, left connector (Hyper wire color-white)
