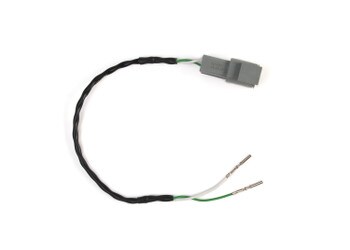

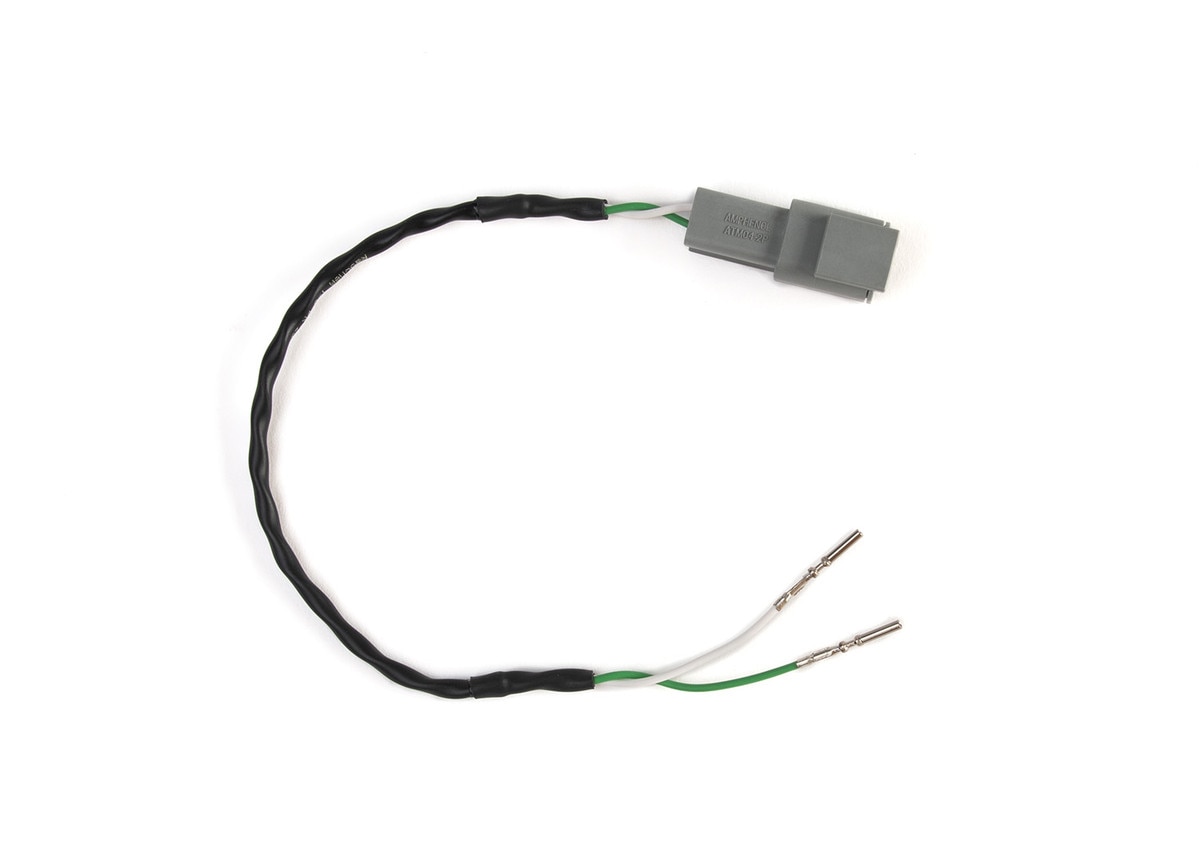

Raychem ECU Relay Harness Adapter Pigtail

This is the sub harness that connects the ECU to our 608-4191 Fuel Pump & Fan Relay Assembly. It comes with the pins needed to insert into your selected ECU.

Fuel Pump Relay Signal Wires in ECU’s (green wire on pigtail)

Yamaha R6 ’03-’05 - Pin 32 (OEM wire color - light green)

Yamaha R6 ’08-’16 - Pin 23, left connector (OEM wire color - blue/yellow)

Yamaha R6 ’17 & Up - Pin 30, right connector (OEM wire color - blue/white)

Suzuki GSX-R ’08 & Up - Pin 4, left connector (OEM wire color - yellow/black)

Kawasaki ZX-6R ’05-’06 - Pin 4, left connector (OEM wire color - brown/yellow)

Kawasaki ZX-6R ’09-’12 - Pin 12, right connector (OEM wire color - brown/yellow)

Kawasaki ZX-6R ’13-’18 - Pin 7, right connector (OEM wire color - brown/yellow)

PE3 - Digital output 1 Pin 11, left connector (Hyper wire color - light green)

Fan Relay Signal Wires in ECU’s (white wire in pigtail)

Yamaha R6 ’03-’05 - Pin 42, (OEM wire color - green/yellow)

Yamaha R6 ’08-’16 - Pin 5, left connector (OEM wire color - blue/yellow)

Yamaha R6 ’17 & ’Up - Pin 20, right connector (OEM wire color - green/yellow)

Suzuki GSX-R ’08 & ’Up - Pin 6, left connector (OEM wire color - green/red)

Kawasaki ZX-6R ’05-’06 - Pin 6, left connector (OEM wire color - black/blue)

Kawasaki ZX-6R ’09-’12 - Pin 13, right connector (OEM wire color - black/blue)

Kawasaki ZX-6R ’13-’18 - Pin 17, left connector (OEM wire color - black/blue)

PE3 - Digital output 2 Pin 2, left connector (Hyper wire color-white)
