Sealed Ignition Switch
Details

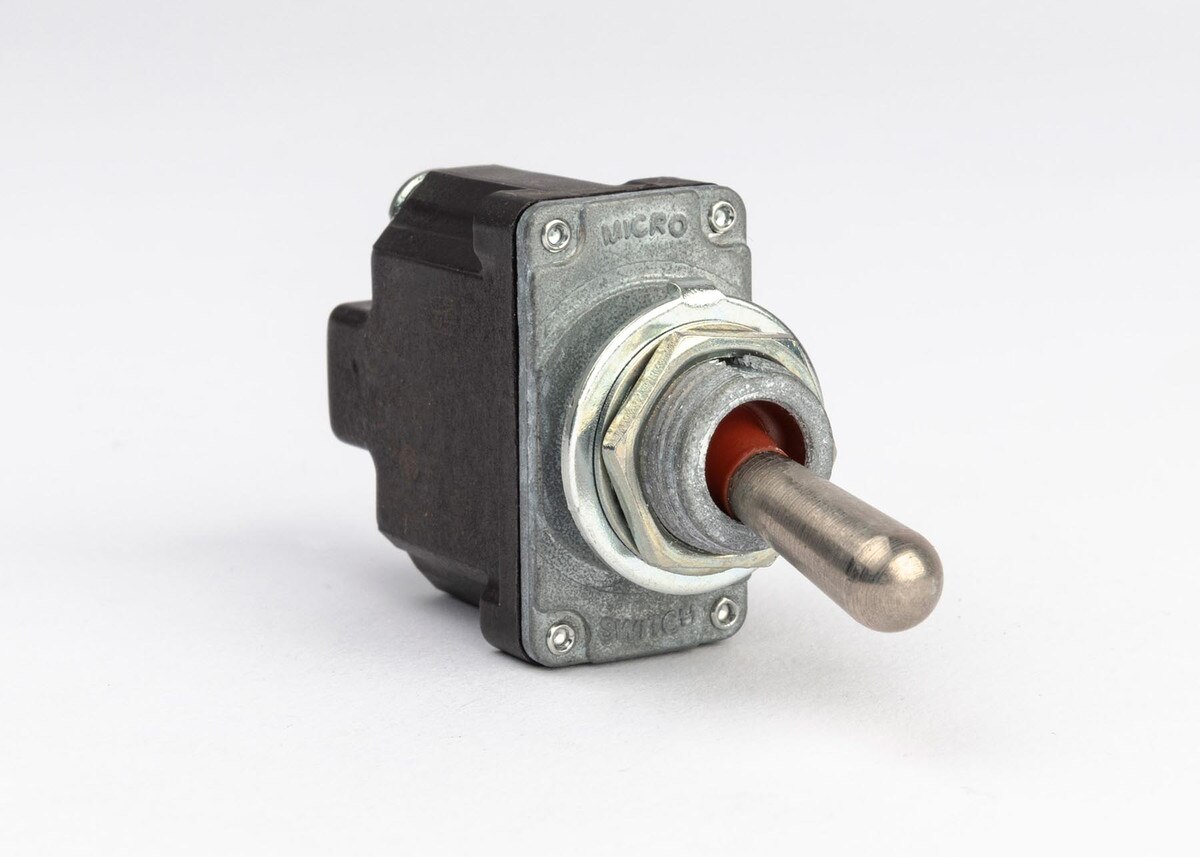

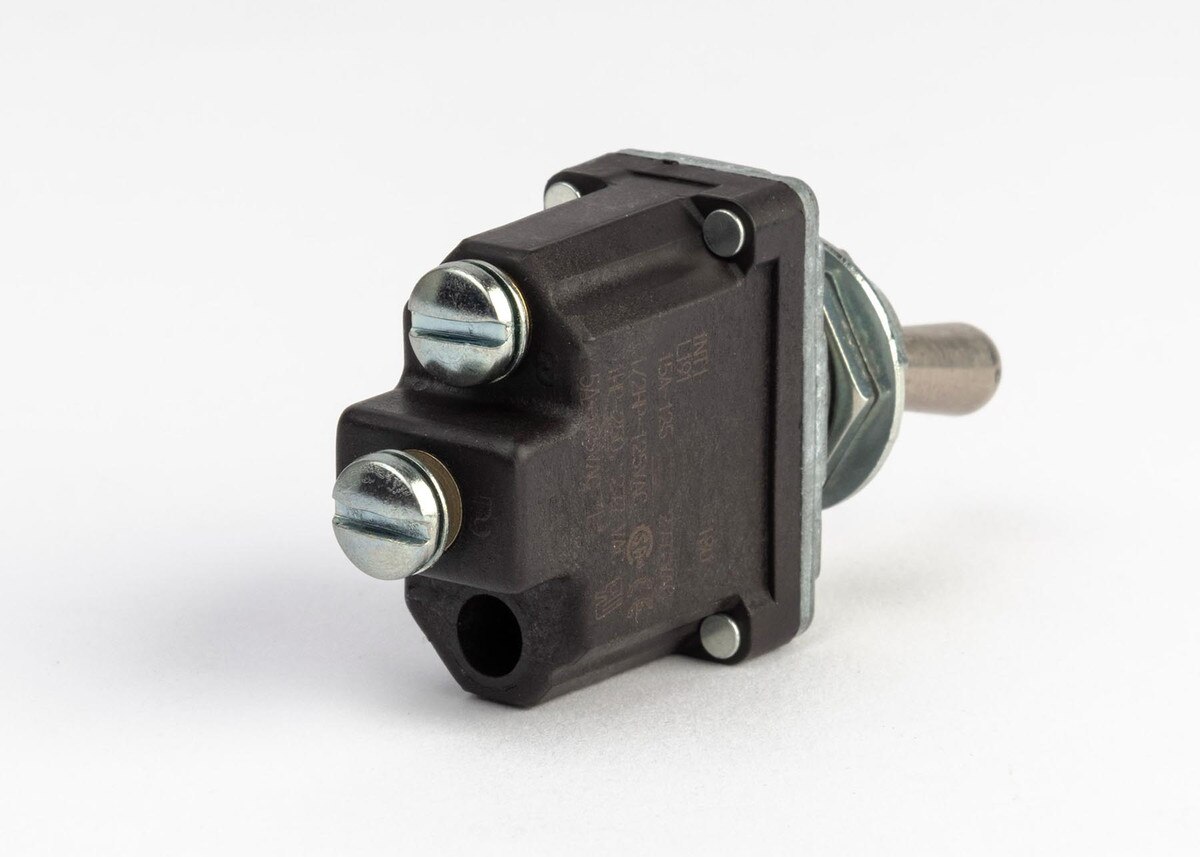

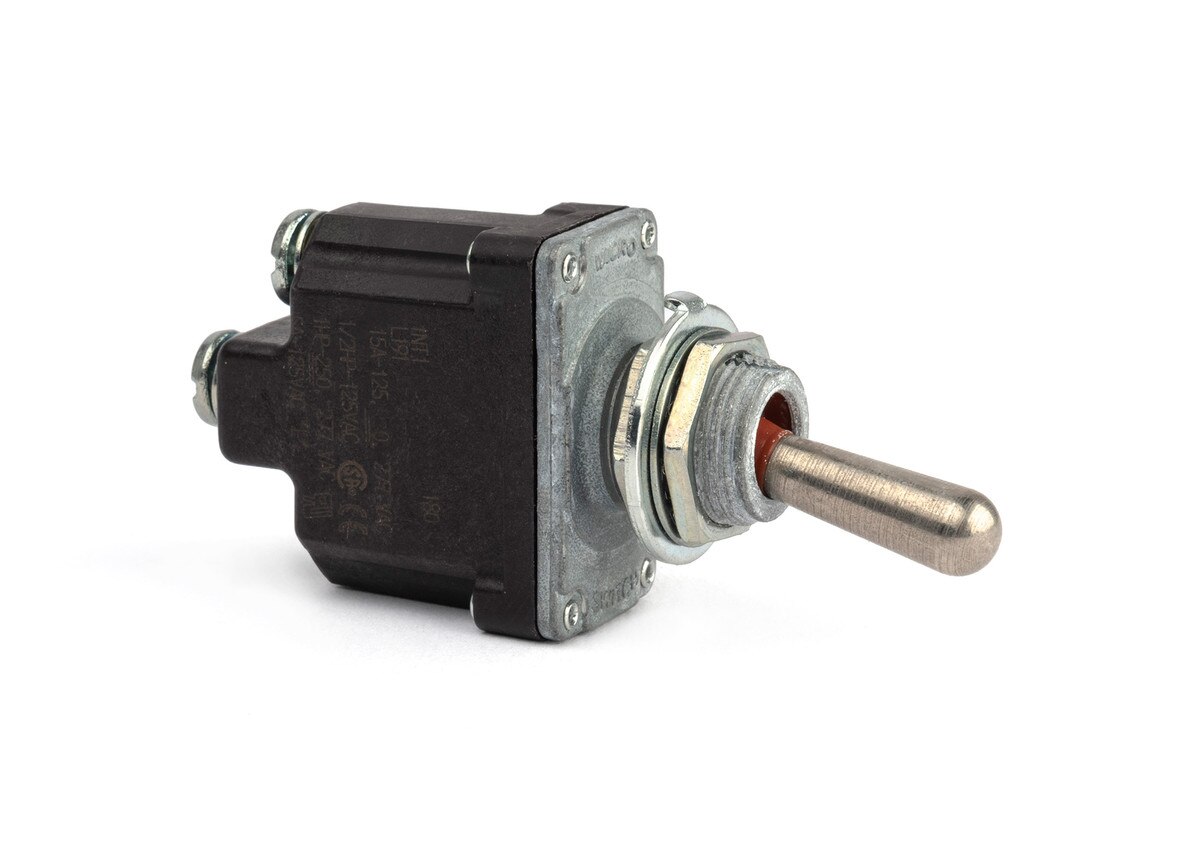

Honeywell SPST ON-OFF 17.02mm actuator length, 15/32-32 thread, 15AMP @125VAC, lead free. RoHS compliant.
This is our ignition switch, it is one of the best in the world, manufactured by Honeywell, branded as Micro Switch. Honeywell makes this same switch for the US Military under a very strict Mil-Spec certification. This is the same switch with the commercial spec designed for use in very harsh environments.
Here is part of Honewells description:

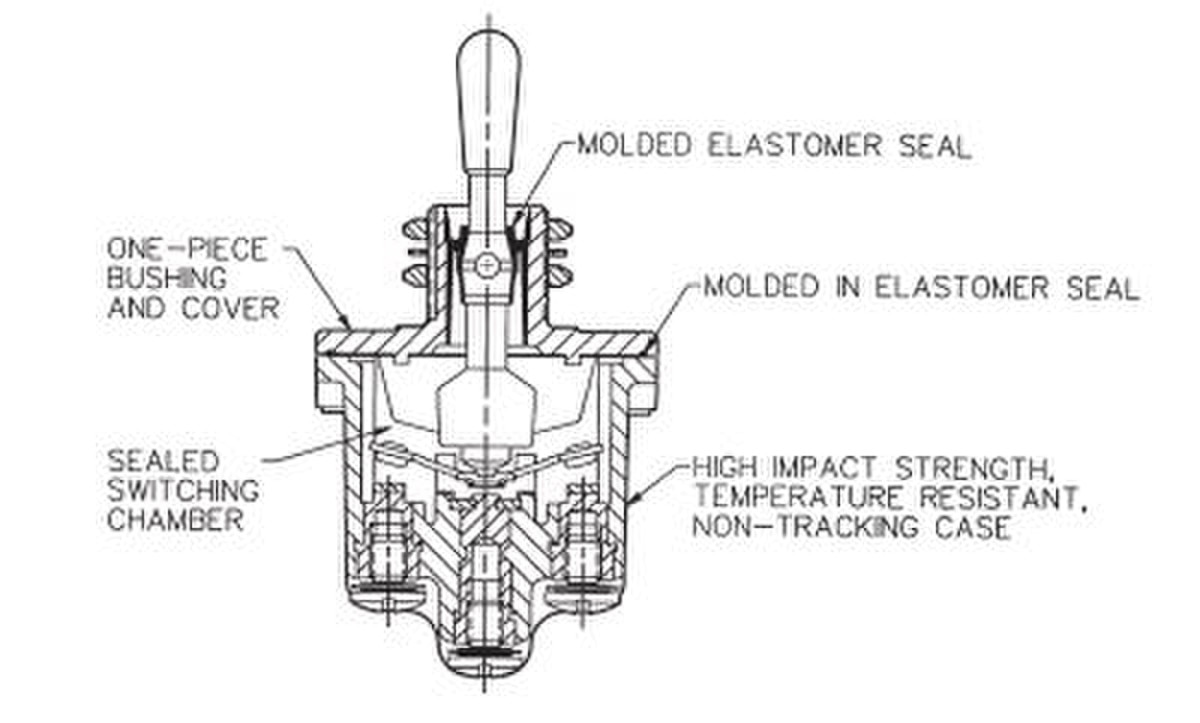

MICRO SWITCH NT Series toggle switches meet severe environment application needs for a rugged, cost-effective toggle switch. Quality construction features include a molded-in elastomer seal between the toggle lever and bushing, and between the cover and case. The terminal inserts are molded into the high impact strength thermoplastic case.
Complete sealing of the switching chamber enables NT toggles to comply with UL 508, paragraph 13.3 hosedown test.
