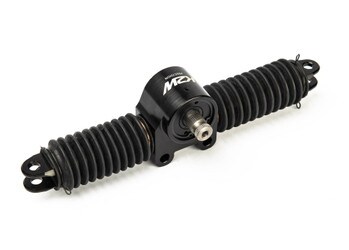

K2W Axle Mounted Steering Box 7/16"

Designed to accept 16-194 or 16-1995/16-1996 steering arms or steering arms with a 3" distance from king pin center to steering arm mounting hole. Rack has aluminum clevises for a 7/16" rod end and are 15 degrees from the face. 5/8"-36 spline output shaft. Use with one of our splined steering columns and 16-600/16-032 universal.

Tighten the 3/8" mounting bolts to 20-22 foot-pounds and use threadlocker.

One turn of steering wheel = 4.8" of travel of rack.

Total stroke of the rack is 4-1/8"

Center to center of steering rod mounts is 11"

Mounting holes to mount rack to axle (or clamp) is 1-3/4", 3/8" diameter

Distance from rack centerline to pinion centerline is 1"

Distance from rack centerline to mounting holes is 3/4"
