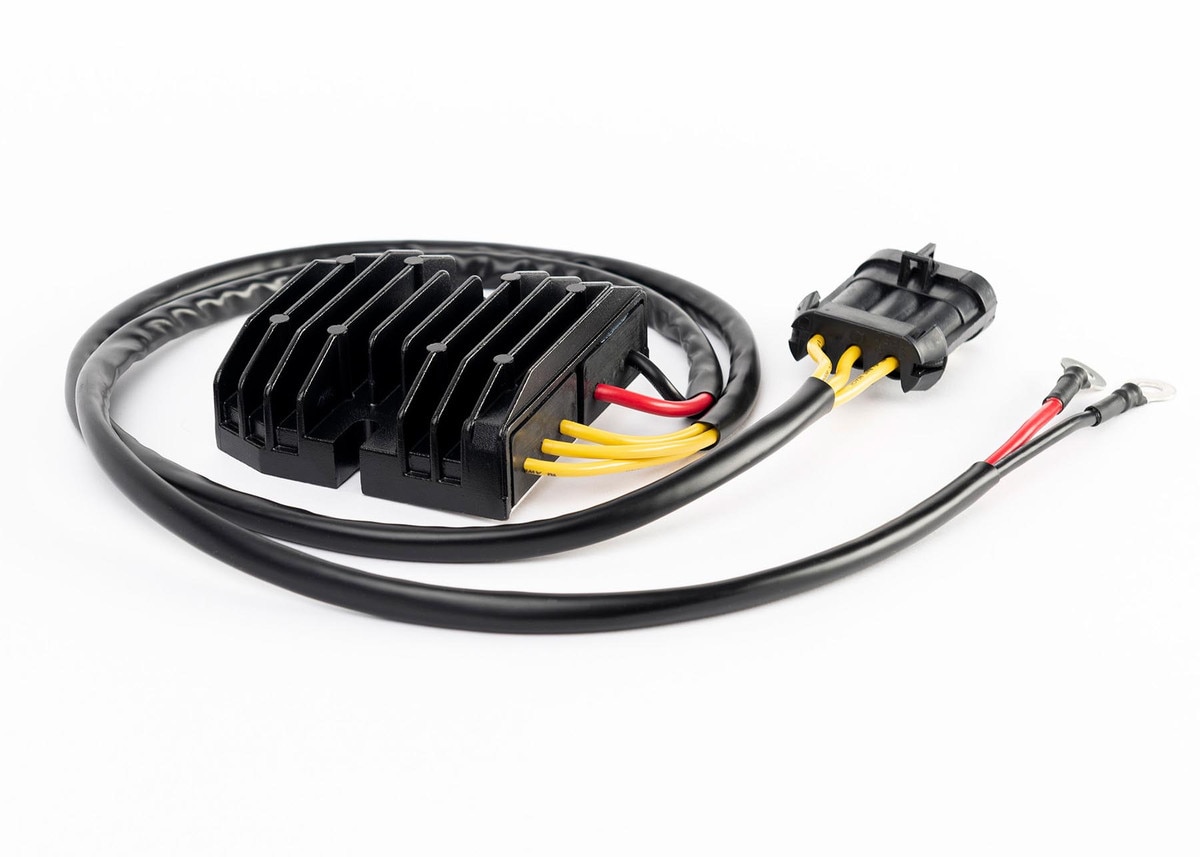

Hot Shot Rectifier, Lithium-Ion w/ Sealed Connector
Details
The reason so many batteries fail or melt down on the 600cc or 1000cc motorcycle engines is because the factory charging systems can put out too much or not enough voltage when charging the battery. Stock factory rectifiers vary greatly on the charging voltage output. The Hot Shot Rectifier for Lithium-Ion Batteries uses MOSFET technology to achieve a constant charging voltage set point of 14V +/-.2.
MOSFETs (Metal Oxide Semiconductor Field Effect Transistor) are semiconductor switches which act to control the flow of electrical current. The design relies on a switching mechanism that provides a more precise control than other models, particularly in low-power applications like motorcycles due to its quicker switching capabilities. This in turn produces less heat as less energy is lost through the switching process. The result is a part that runs cooler and more efficiently improving engine performance and a more reliable unit due to the cooler running condition creating less stress to the internal electronics.
This Hot Shot Rectifier for Lithium-Ion Battery with Sealed Connector will work on any of the major motorcycle engines that use a lithium-ion battery. Not for use with standard lead acid batteries. For lead acid batteries, use part numbers 609-0021 or 609-002.
609-0011 Hot Shot Rectifier for Lithium-Ion Battery with Sealed Connector includes:
MOSFETs (Metal Oxide Semiconductor Field Effect Transistor) are semiconductor switches which act to control the flow of electrical current. The design relies on a switching mechanism that provides a more precise control than other models, particularly in low-power applications like motorcycles due to its quicker switching capabilities. This in turn produces less heat as less energy is lost through the switching process. The result is a part that runs cooler and more efficiently improving engine performance and a more reliable unit due to the cooler running condition creating less stress to the internal electronics.
This Hot Shot Rectifier for Lithium-Ion Battery with Sealed Connector will work on any of the major motorcycle engines that use a lithium-ion battery. Not for use with standard lead acid batteries. For lead acid batteries, use part numbers 609-0021 or 609-002.
609-0011 Hot Shot Rectifier for Lithium-Ion Battery with Sealed Connector includes:

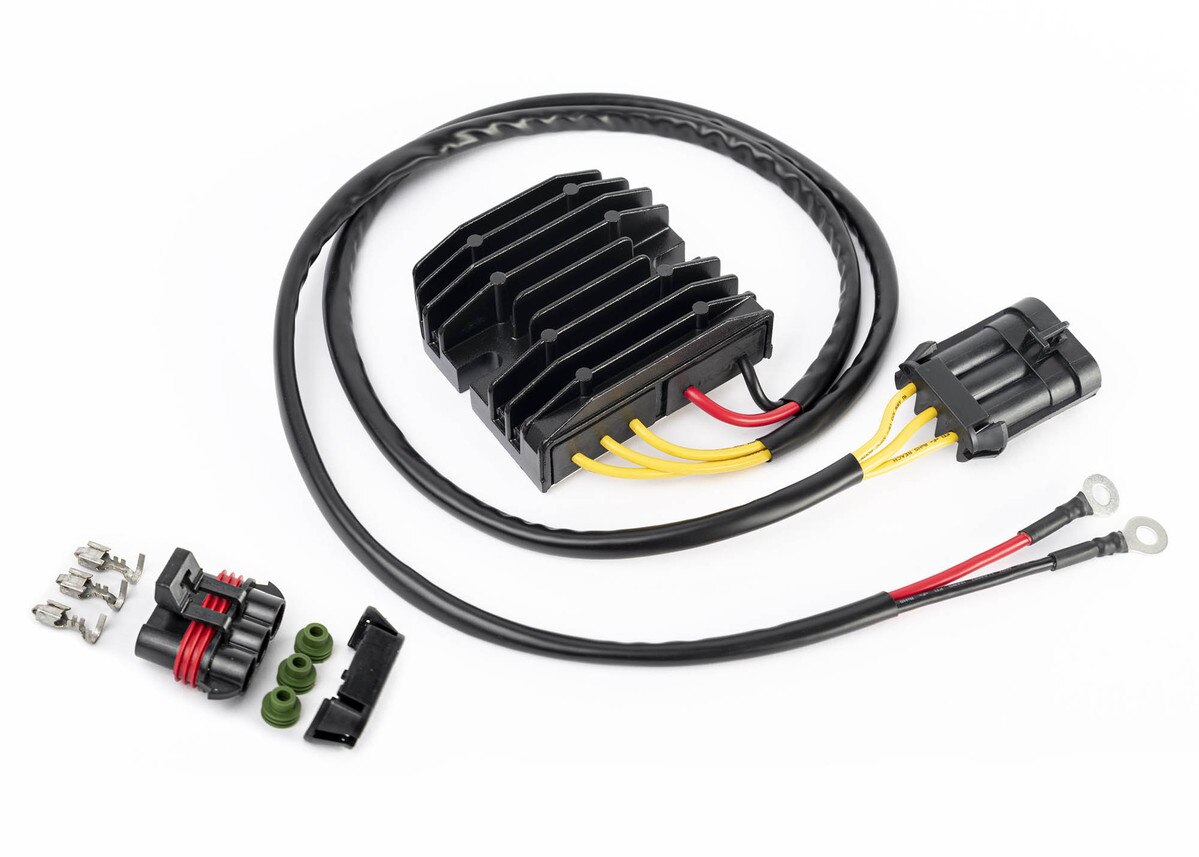

- rectifier with 5 wires: 3 stator wires, and 2 wires that go directly to the battery
- sealed connector, crimped onto the rectifier (rated at 46 amp!)
- battery connectors, crimped onto the battery wires
- connector for the engine side stator, uninstalled (User will need to crimp on.)
