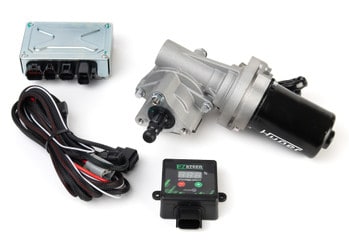

Factory Adjustable Power Steering Unit

This item is fully customizable using our customizing tool found by going to 16-700-K.

Hyper Racing always has you covered with the latest in technology and design.

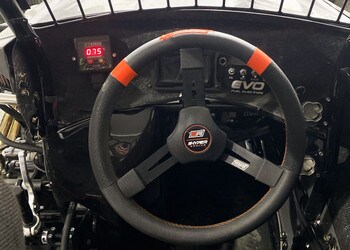

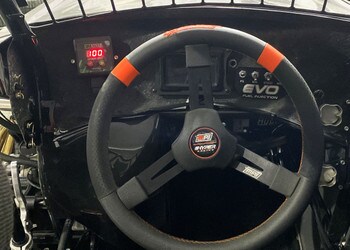

We worked with EZ-Steer to bring this exclusive product to the market. Allows the driver to adjust the amount of power steering assist right from the dash! Adjust it from 0% up to 100%. This allows the driver to dial in the preferred feel of the right front tire.

You will need the upper steering shaft, collapsible steering shaft, and the upper u-joint if you are converting from manual steering to power steering.

Instructions:
The white wire on the harness goes to a switch on the dash. The other screw on the switch goes to 12 volt positive terminal on the battery. The large diameter black and red wires on the harness will go directly to the battery.

Turn the power steering on after the car is started to avoid a voltage drop to the PS which can cause a fault while racing.

We highly recommend the 16-Cell Anti Gravity or the 14 Amp Deka Battery when using this unit. The 8-Cell Anti-Gravity or other small amp battery may not work correctly with this unit as the draw from the power steering is too high.

HYPER RACING’S GOLD STANDARD: Components marked with the gold H-Mark logo are part of Hyper Racing’s Gold Standard lineup, recommended for X4–X7 600cc Micro Sprint Chassis. Each one is tested and proven to deliver the highest level of performance, giving you confidence that you’re running parts built to meet our standard.
