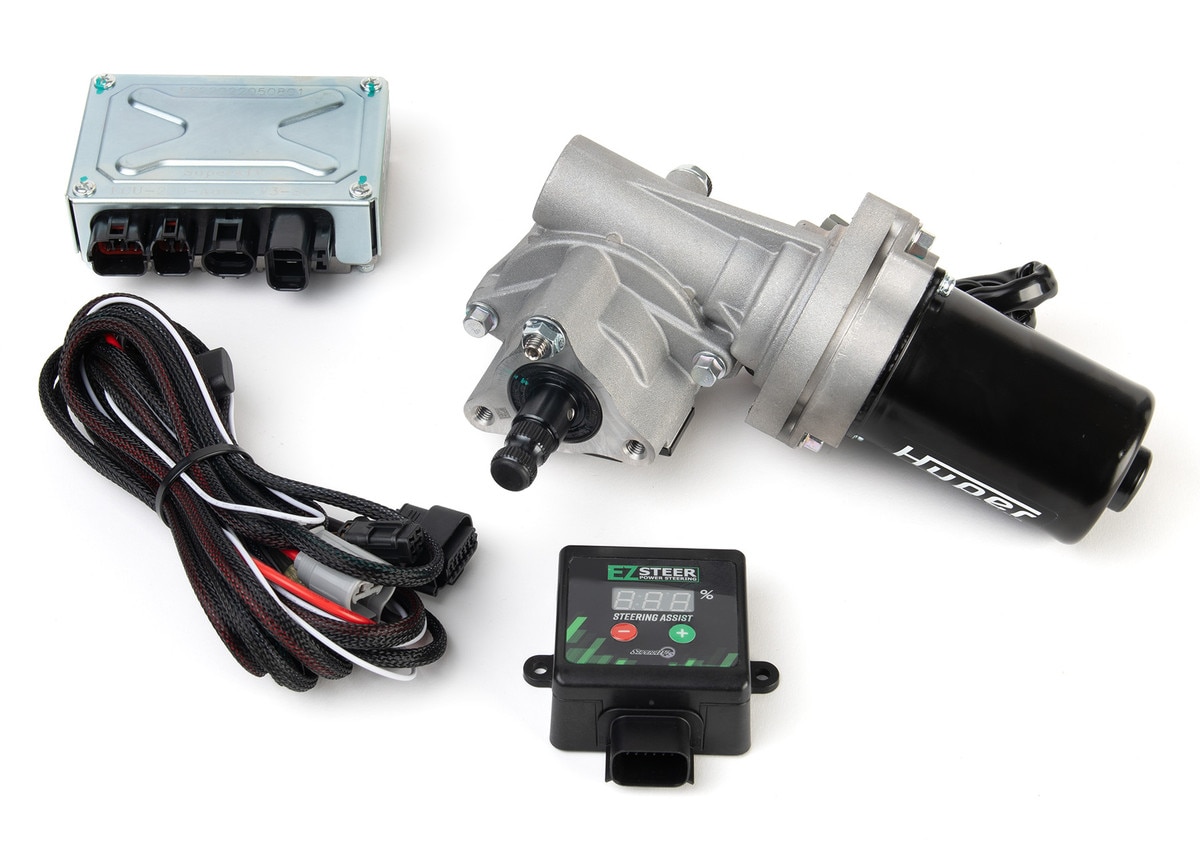

Power Steering Unit, Build Your Own

Click the Configure button to specify our fully customizable Power Steering Unit.

Hyper Racing always has you covered with the latest in technology and design.

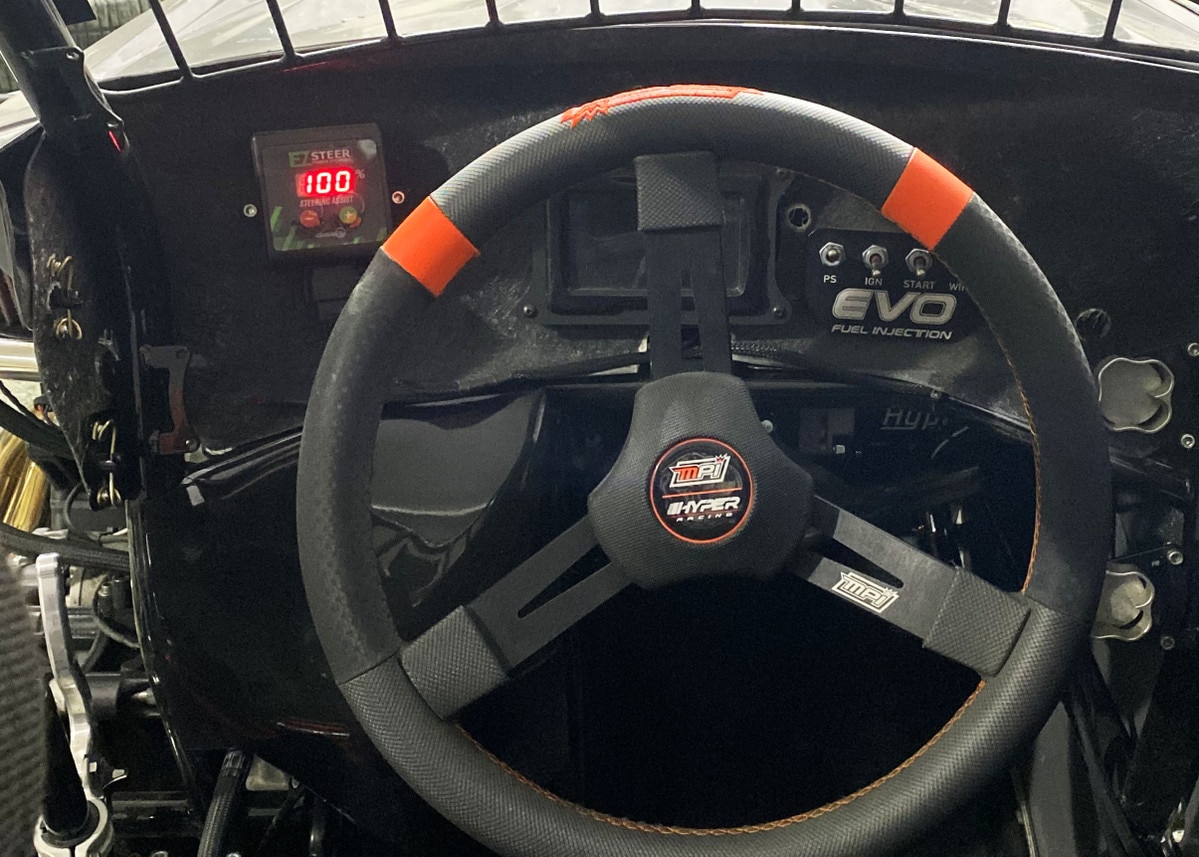

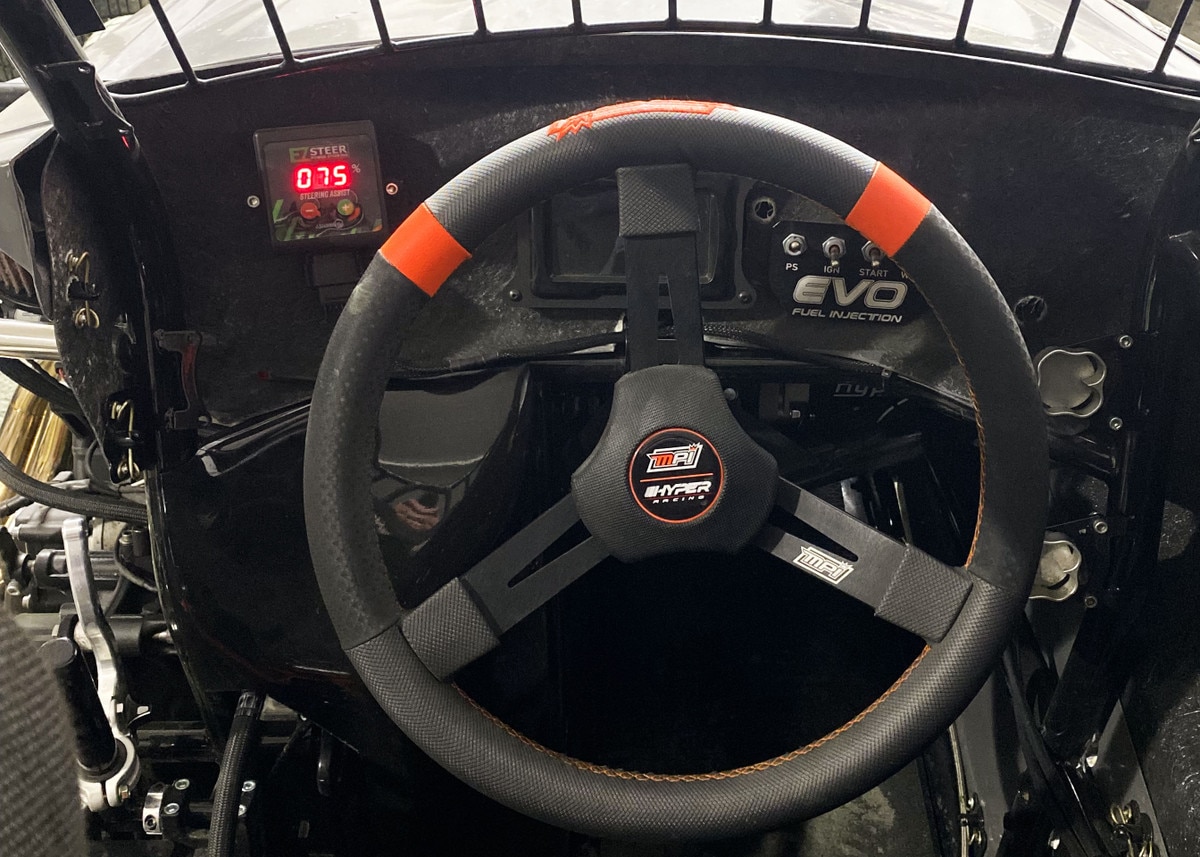

We worked with EZ-Steer to bring this exclusive product to the market. Allows the driver to adjust the amount of power steering assist right from the dash! Adjust it from 0% up to 100%. This allows the driver to dial in the preferred feel of the right front tire.

This item is fully customizable using our customizing tool. Click on the Configure button to select the options you would like on this Power Steering Unit.

Instructions:
The white wire on the harness goes to a switch on the dash. The other screw on the switch goes to 12volt +. The large diameter black and red wires on the harness will go directly to the battery.

Turn the power steering on after the car is started to avoid a voltage drop to the PS which can cause a fault while racing.

The 8 Cell Anti-Gravity or other small amp battery may not work correctly with this unit as the draw from the power steering is too high.

Hyper Racing always has you covered with the latest in technology and design. We worked with EZ-Steer to bring this exclusive product to the market.
