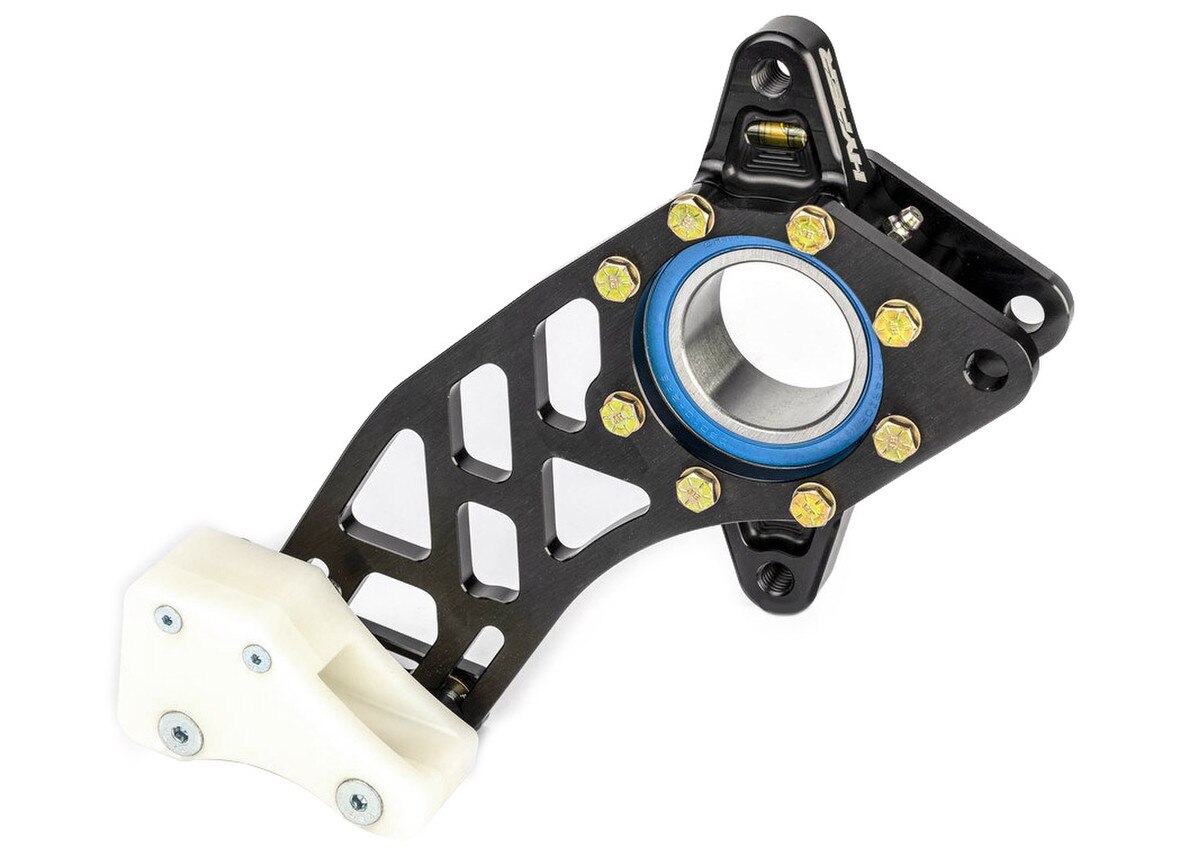

2" Bearing Carrier X6 Jacob's Ladder 2TLC

2" Bearing Carrier for Hyper 2" Splined Rear Axle, Jacobs ladder version with chain guide. Uses the short shackle X4, X6 style.

Hyper 600cc bearing carrier for Jacobs ladder-wishbone chassis (will not work with the panhard bar configuration).

Select size of guide block (520 or 530 Chain) and length of spacers, most all engines will use the 1-1/2" long spacers. CNC machined Bearing Carrier, includes bearing. Control arm mount distance is 6". All double bearing carriers include level and grease fitting.

We recommend the bearings be greased before the first use with Champion Grease 74-332.

Uses (8) 1/4-20 x 2" HHCS.
(2) 5/16-18 x 4" FHCS to hold Chain Guide Block when using 1-1/4" or 1-1/2" long spacers with (2) 5/16" Hard Washers. For the 1" or 3/4" long spacers, use (2) 5/16-18 x 3-1/2" FHCS and for 1/2" or 5/16" spacers, use (2) 5/16-18 x 3" FHCS.
