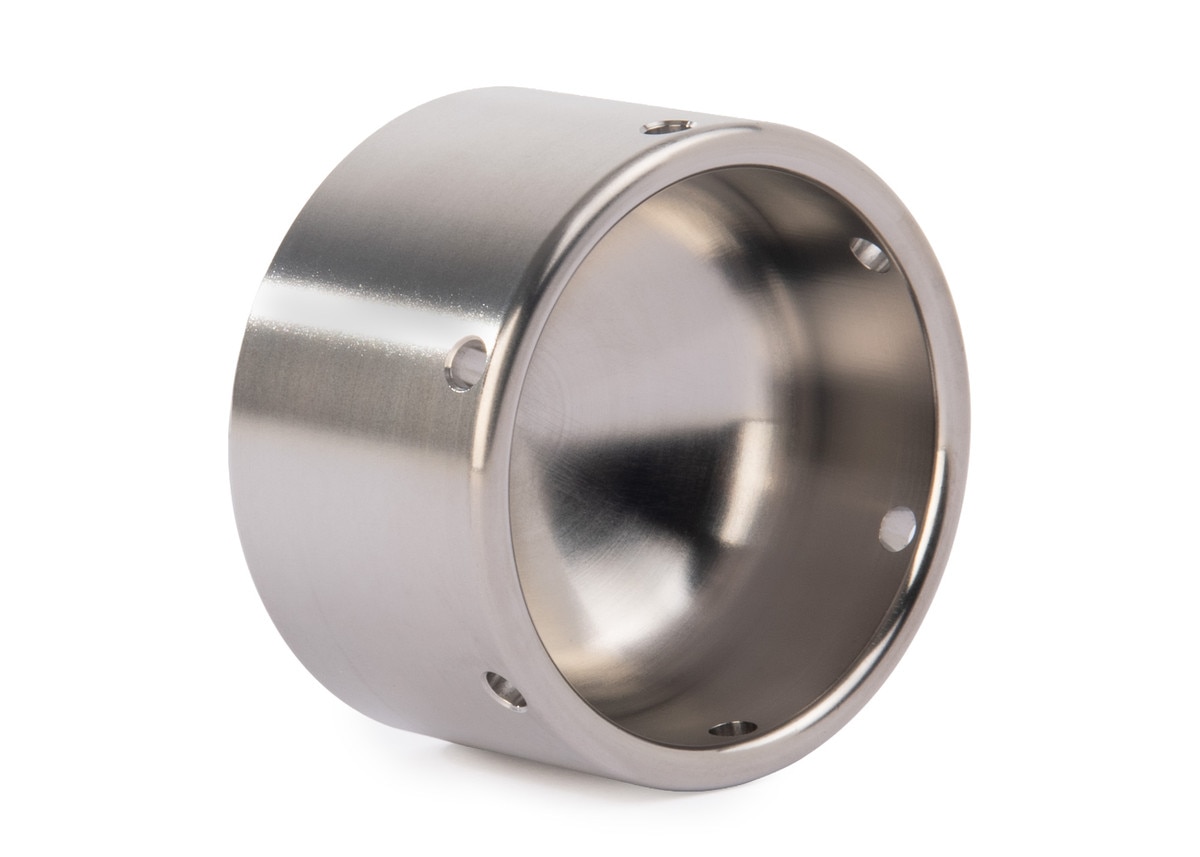

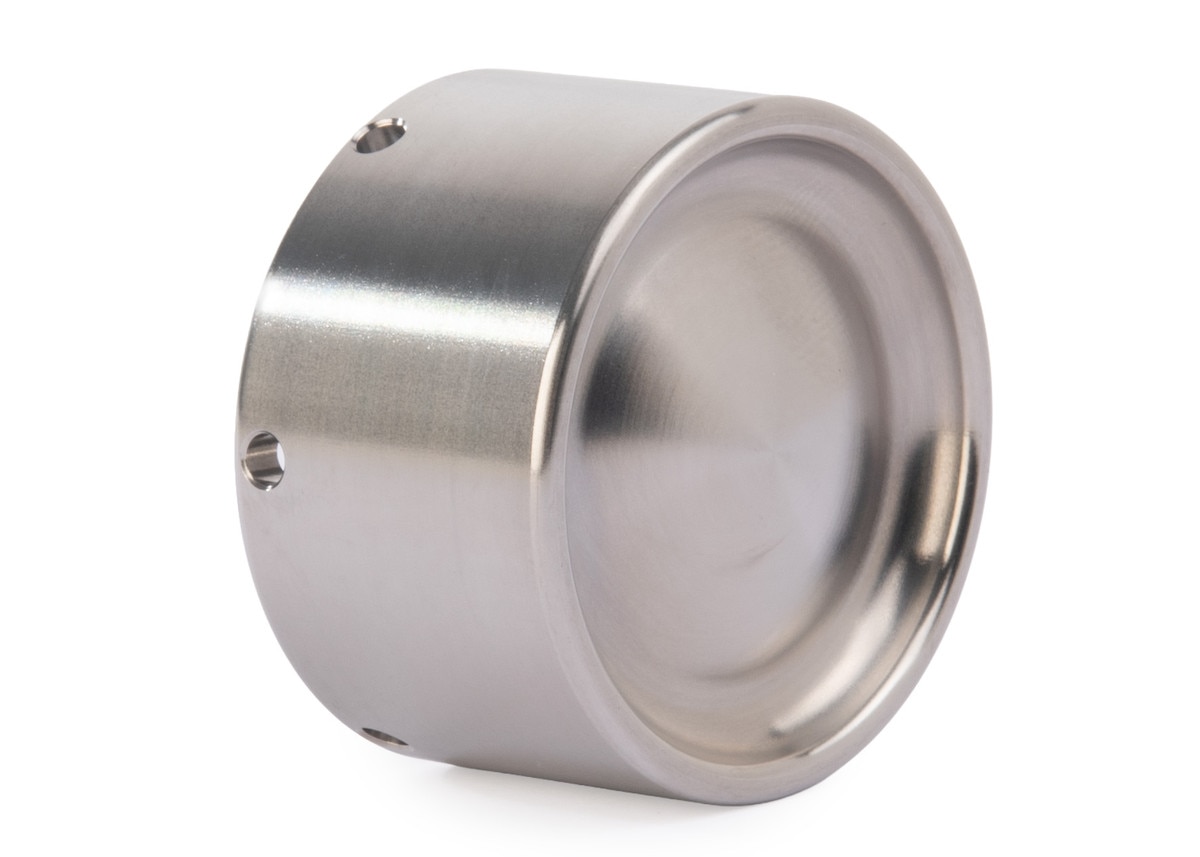

Ti Piston for Dynalite, 3/16" or 1/4" Rotor (each)
Details
Recommended for 600 Sprints running a 3/16" or 1/4" rotor. Use the 36-1051Ti to eliminate the need for brake pad spacers. Sold as each.
Note: 36-1051Ti Pads will not work with the thicker Smith Ti pads and our 1/4" Ti rotor. Use the 36-105Ti pistons for use with them.
Vented titanium piston will reduce heat build up and heat transfer to the brake fluid! Reduce the chances of boiling your brake fluid. Save weight (62 grams per pair).
Hyper Racing's very own 6AL-4V Titanium Brake Caliper pistons are made from extremely low heat conductive titanium material to significantly reduce the chances of you boiling your brake fluid. As you can see by the chart below, titanium will transfer 3 times less heat than Wilwood's stainless steel piston.
HYPER RACING’S GOLD STANDARD: Components marked with the gold H-Mark logo are part of Hyper Racing’s Gold Standard lineup, recommended for X4–X7 600cc Micro Sprint Chassis. Each one is tested and proven to deliver the highest level of performance, giving you confidence that you’re running parts built to meet our standard.
Material | Grade | Thermal Conductivity |
Aluminum | 7075 – T6 Alloy | 130 |
Steel | 1330 | 51.9 |
Steel Alloy | 4118 | 44.5 |
Stainless Steel | 304 | 21.5 |
310 | 14.2 | |
Titanium | CP, commercially pure, Grade 2 | 16 |
3.2 AL-4V alloy | 11.8 | |
6AL-4V alloy, Grade 5* | 6.7 |
