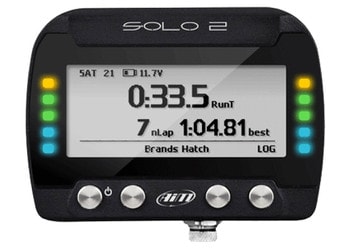

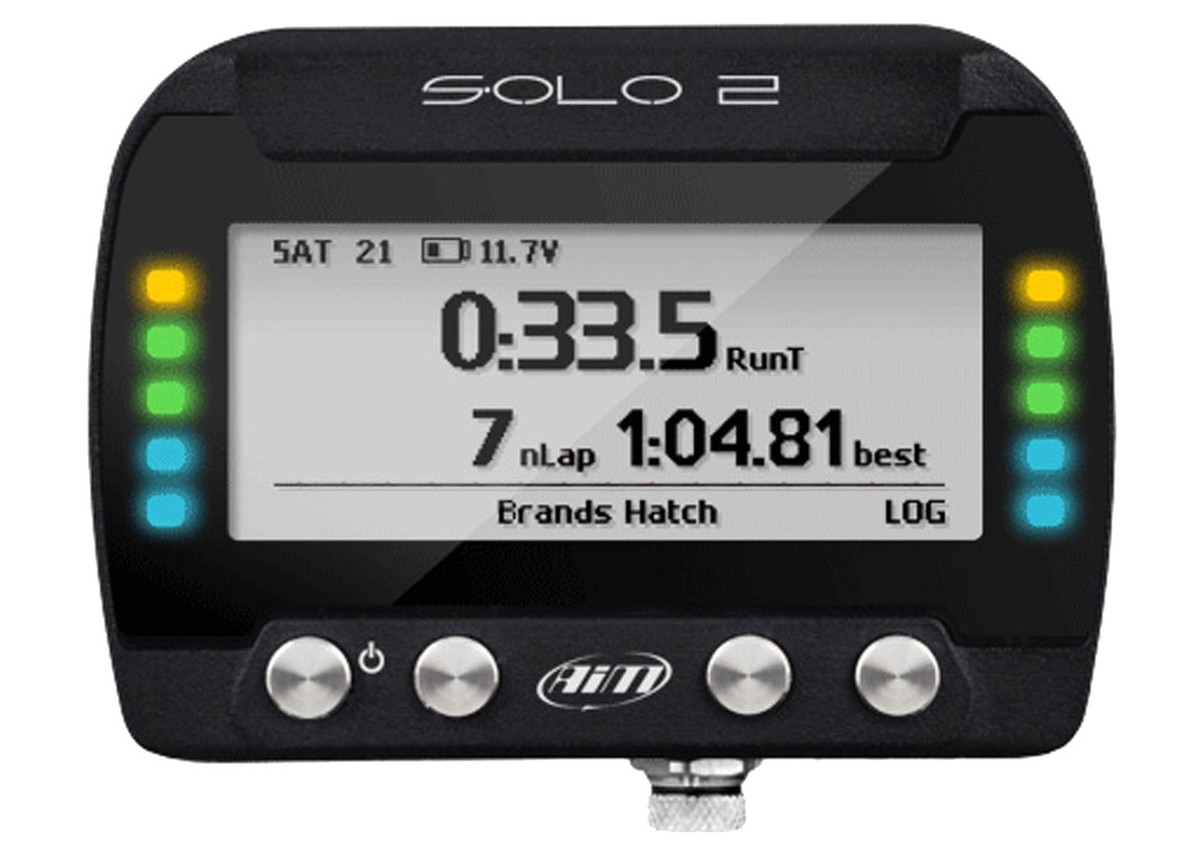

AiM SOLO 2 DL

The big advantage of the AiM SOLO 2 DL Data Logger for your 600cc micro sprint is that we can set it up to read the live data stream from the ECU. This enables recording of the critical data needed to perform data tunes for the ECU. It will record RPM, TPS values, MAP and Baro sensor, water temp sensor (no need for an external sensor) and many other useful streams of data directly from one wire going to the ECU.

The new SOLO 2 DL receives the data from two satellites constellations, GPS and Glonass: this is a huge step forward since it is unbelievably faster and more precise than the previous version and the lap times are calculated within a maximum gap not higher than 2/100 sec.

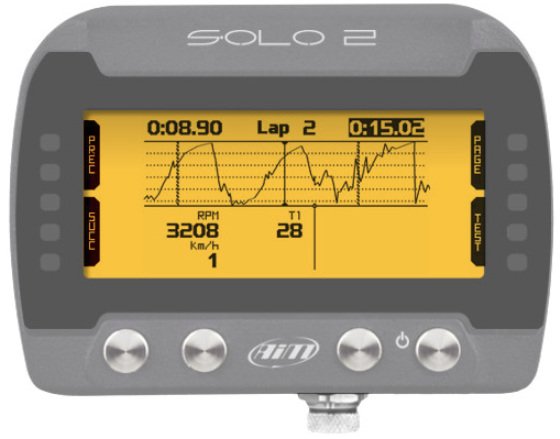

Solo 2 Race Data Recall on Screen

At the end of your test, you can quickly review all the key information on your display.

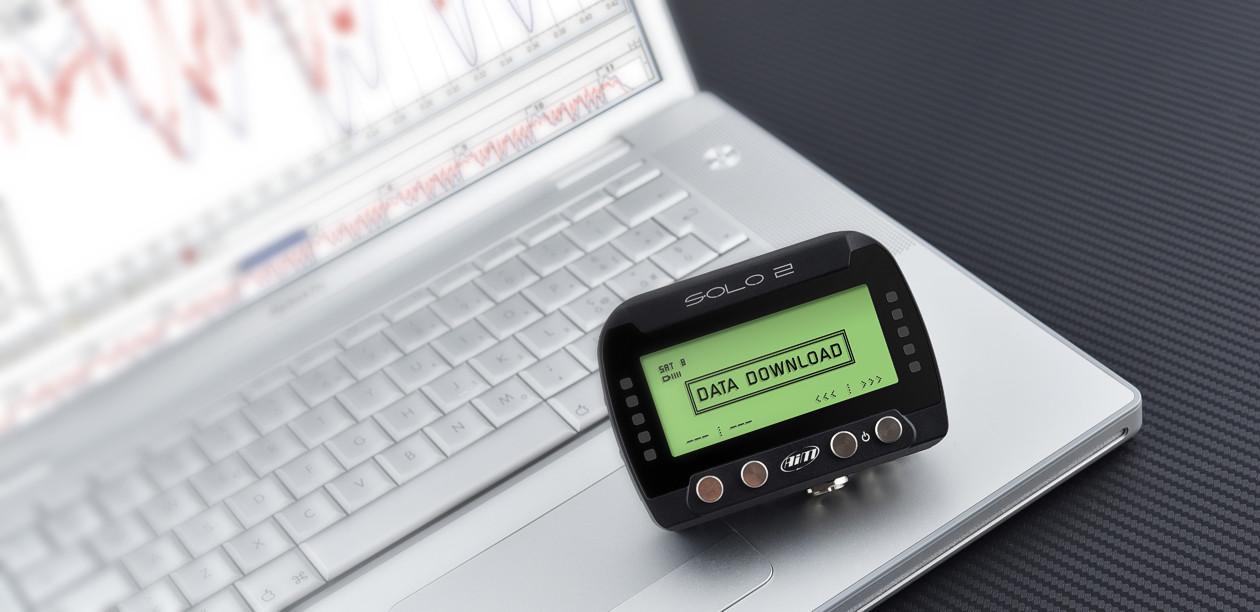

Solo 2 Wi-Fi Communication with the PC

Wi-Fi connection is easy and fast without connectors or cables, Simply the best way to configure your Solo 2, to manage the track database and to download the data to your PC.



SmartyCam 3 connection

The perfect connection: get all the data from your ECU, merge them with the GPS information and transmit everything to the SmartyCam 3 cameras, that will show them in graphical overlay in the video.

• 7 different colors on screen to choose from.
• Data recall on screen for quick gearing evaluation
• Wifi communication with the PC

These ECU will work with the Solo 2 DL:

• '05 & Up GSX-R 600/750/1000
• '13 & Up ZX6R
• '03 & Up Honda CBR 600RR
• '04 & Up Honda CBR 1000RR
• '17 & Up Yamaha YZF-R6
• '15 and Up Yamaha YZF-R1

Includes:

• Solo 2 DL, power cable with AC adapter
• mounting bracket with screws
• CAN/K-Line/External power cable with OBDII connector
