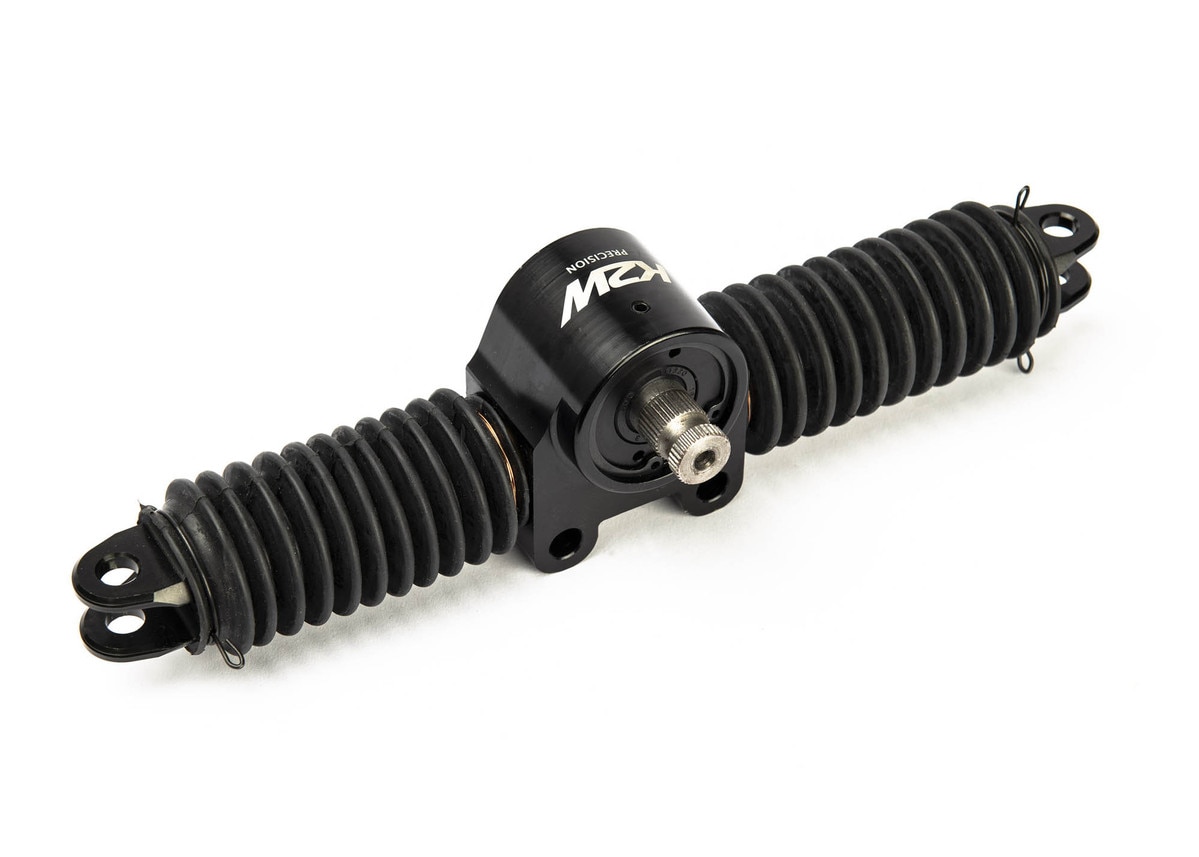

K2W Axle Mounted Rack Box 3/8"

Brief Description

K2W Axle Mounted Rack Box, use 3/8" Rod End for 600 Micro Sprint

Does not fit Hyper Chassis.

Use with one of our splined steering columns and 16-600/16-032 universal.

Tighten the 3/8" mounting bolts to 20-22 foot-pounds and use threadlocker.

One turn of steering wheel = 4.8" of travel of rack.

Total stroke of the rack is 4-1/8"

Center to center of steering rod mounts is 11"

Mounting holes to mount rack to axle (or clamp) is 1-3/4", 3/8" diameter

Distance from rack centerline to pinion centerline is 1"

Distance from rack centerline to mounting holes is 3/4"
