120 Micron Fuel Filter -6AN

Compatible with gasoline. See special notes to use with Methanol (88-1721 is recommended to use with methanol)

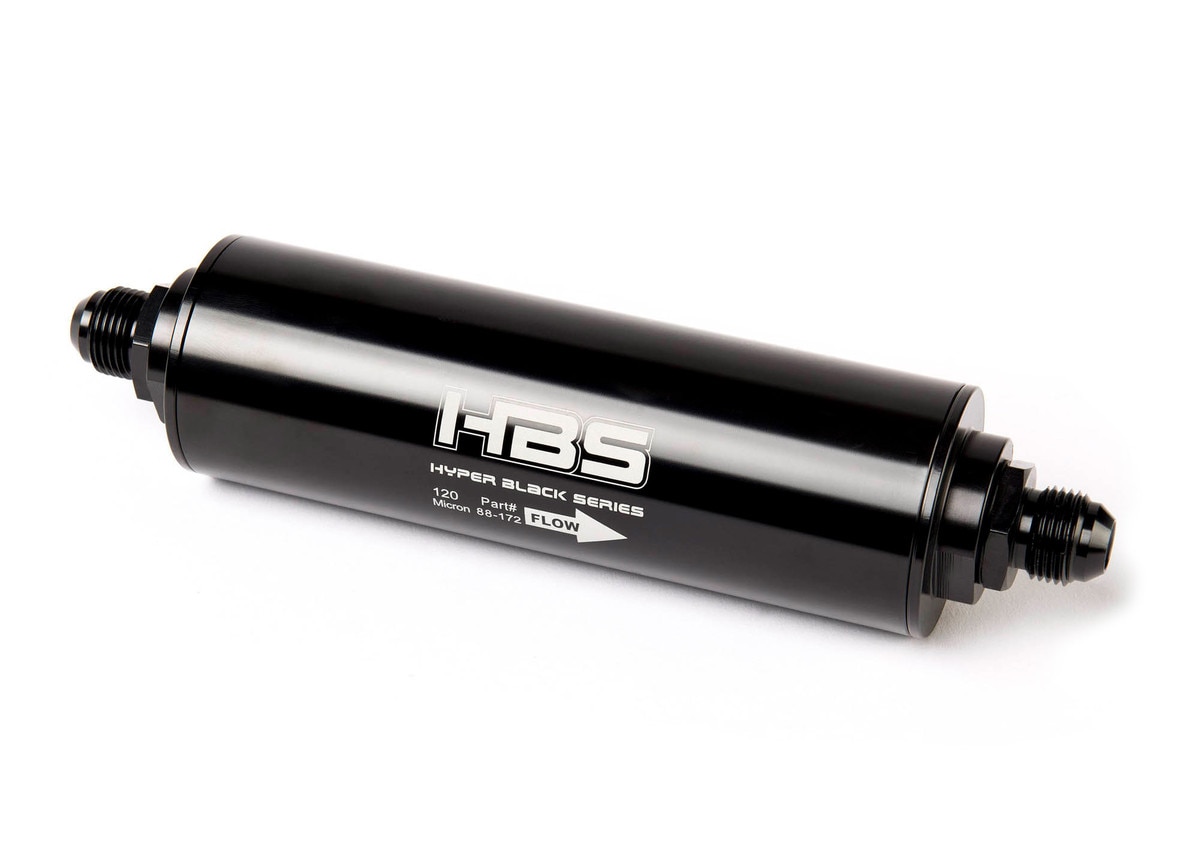

The HBS Fuel Filter with 120 Micron Filter Element is recommended for electronic fuel injection to be used before the fuel pump. Aluminum housing with 6AN inlet and outlet. 120 micron stainless steel pleated filter element is removable for cleaning.

HBS Filter features:

• Removable 6AN fittings that can be replaced if damaged or replaced with a -10 or -8AN fittings if needed.

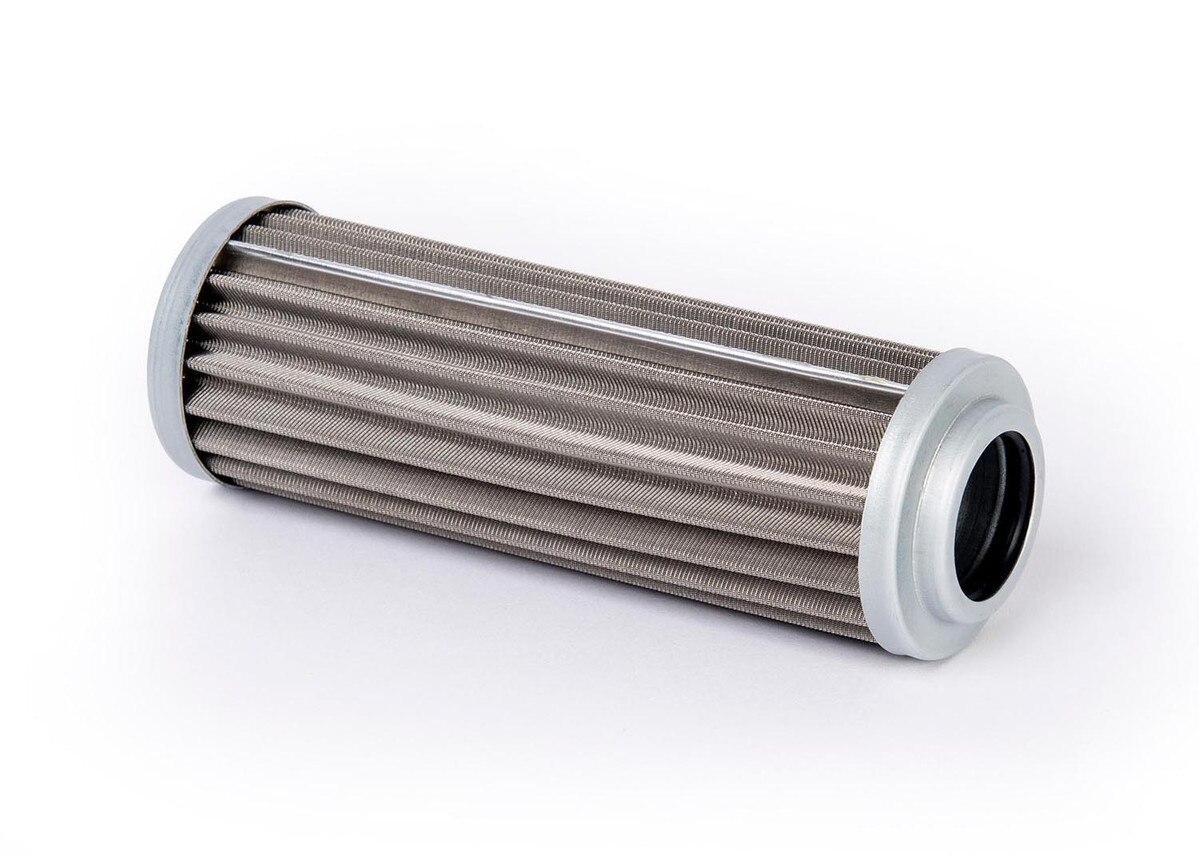

• Huge stainless steel pleated element with an o-ring seal internally to ensure no dirt slips through.
• Black anodized throughout to help stop corrosion
• Epoxy Glue to secure Screen to end caps on the element, perfect for gasoline.

This filter should be cleaned using our Ultrasonic Cleaner 80-675. Compressed air and solvent will not clean the element properly.

To help this filter element last if used with methanal, do not allow it to set in methanal alcohol for more than 1 week. Turn the fuel pump on every 3 days to keep the fuel circulating and oxygen out of the system. For best results when using methanal, use the full stainless steel version of this, 88-1721.

2" diameter and 6-1/4" long.
