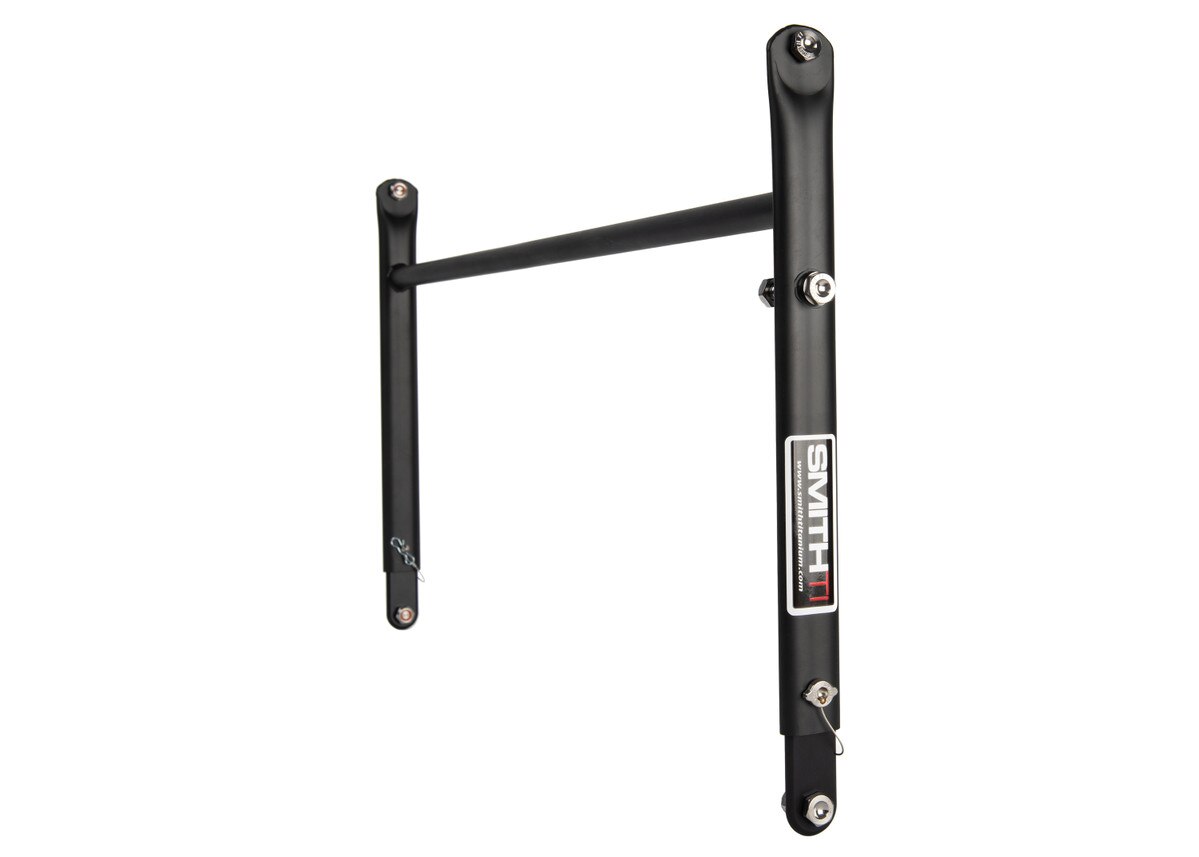

Smith Titanium Rear Wing Tree, 25"

If you are looking for impeccable quality, look no further than the Smith Titanium Rear Wing Tree for Micro Sprints!

• Aero tube
• Titanium 6-4
• 7075 aluminum internal sliders
• Flat black ceramic coating
• Ti bolts
• Exclusive wing pins

Includes:
(1) Aero tube wing pin kit (WP-KIT-A)
(2) 5/16-24 x 3/4" hex head (wing straps to chassis)
(2) 5/16-24 x 5/8" hex head (wing tree to wing)
(1) 5/16-24 x 1-5/8" hex head (wing adjuster to wing tree)
(5) 5/16-24 Titanium nylock nuts (.330 tall)

Measurements:

• Top: 24-3/4" inside to inside of tree  / 25" outside to outside
• Bottom: 24-1/2" inside to inside of the aluminum straps  / 25" outside to outside
• Height adjustment: 12-3/4" minimum height
• 17-1/4" Maximum height
• 3/4" Adjustment increments
