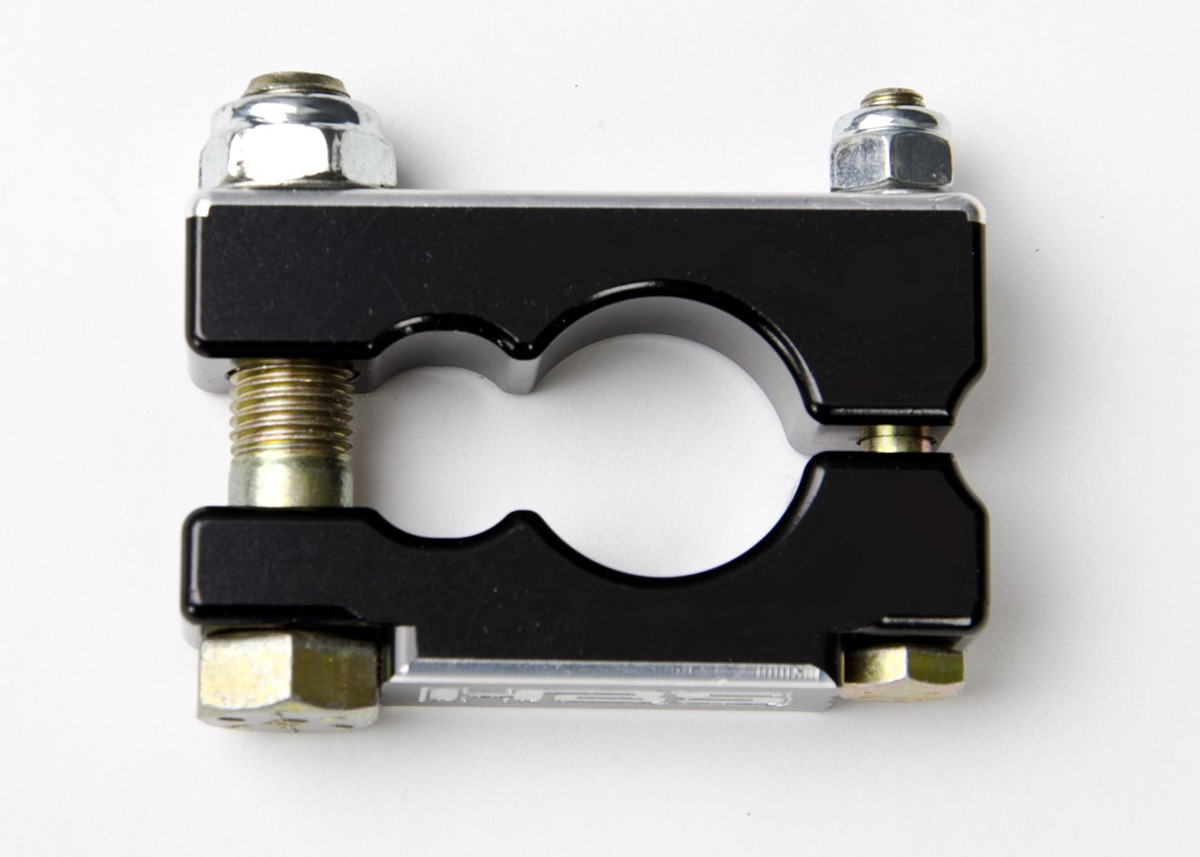

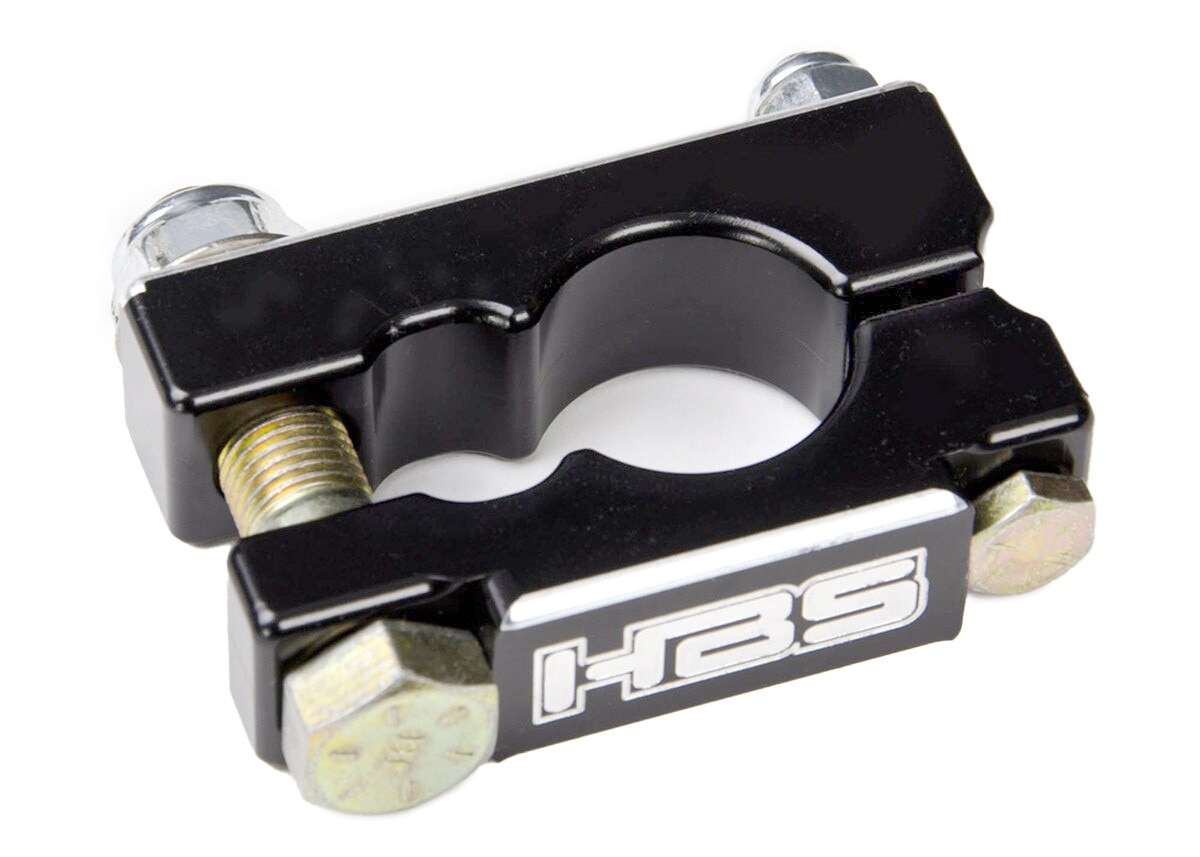

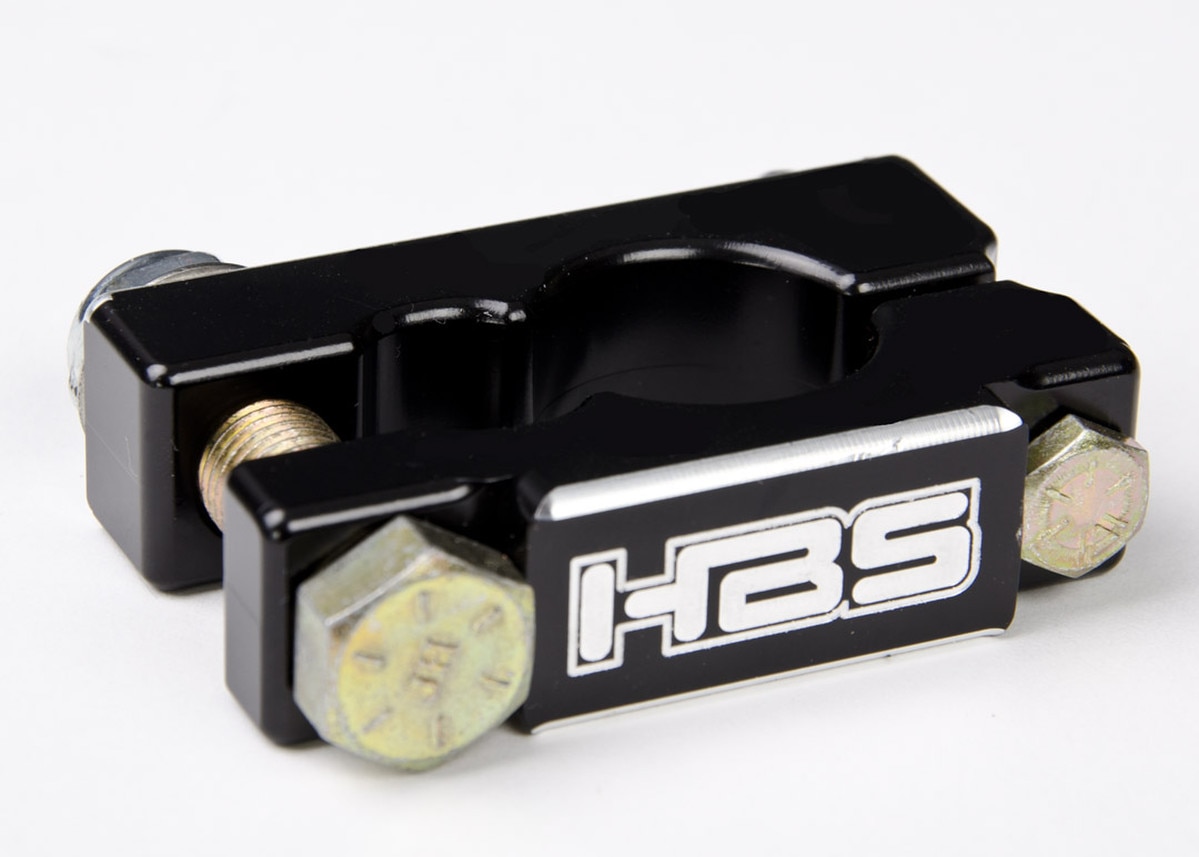

Panhard Bar Slider 1" x 7/16" Rod End

HBS design. Fits 1" Frame member and 7/16" Rod End. This is the one Hyper chassis use for the front panhard bar clamp.

Hardware:

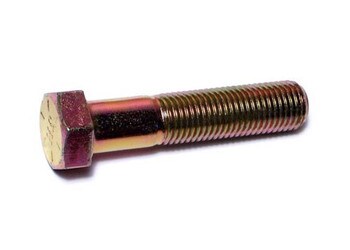

• (1) 7/16-20 x 2” HHCS with (1) 7/16-20 nylock half nut
• (1) 1/4-28 x 2” HHCS with (1) 1/4-28 nylock full nut
• (1) 1/4" AN washer
• (1) 7/16" AN washer

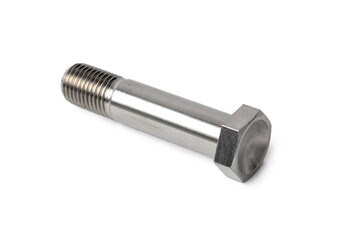

In order to meet the Sharp Mini Late Model rules, you will need to replace the 7/16-20 x 2" HHCS with a 7/16-20 x 2-¼" bolt. Our part numkber 971-07-20-2.25.

HYPER RACING’S GOLD STANDARD: Components marked with the gold H-Mark logo are part of Hyper Racing’s Gold Standard lineup, recommended for X4–X7 600cc Micro Sprint Chassis. Each one is tested and proven to deliver the highest level of performance, giving you confidence that you’re running parts built to meet our standard.
