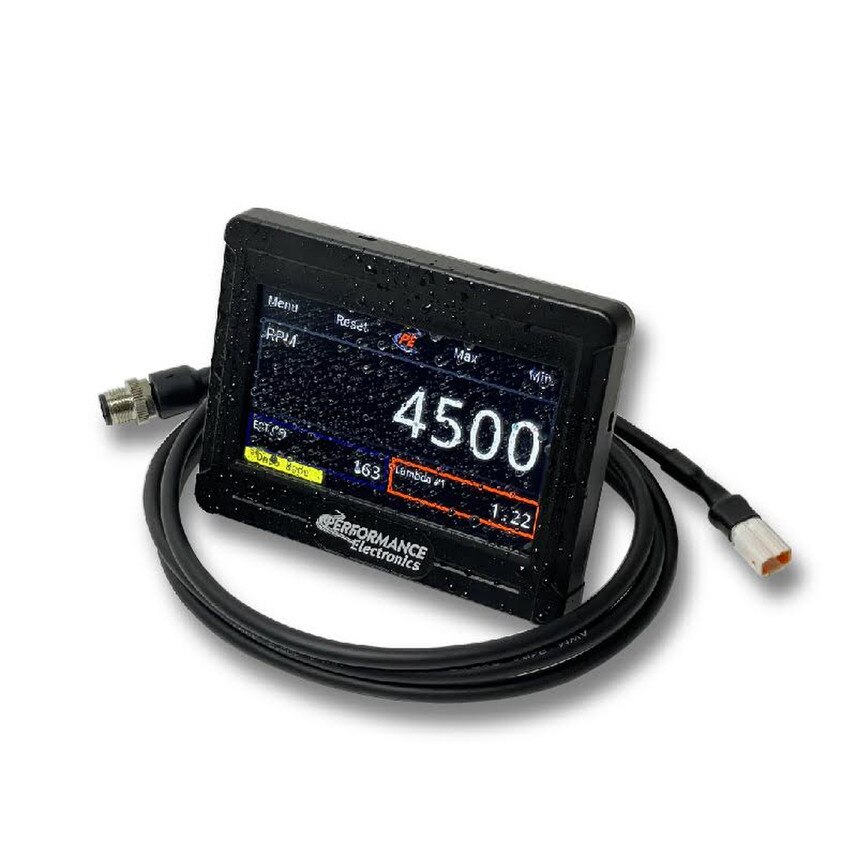

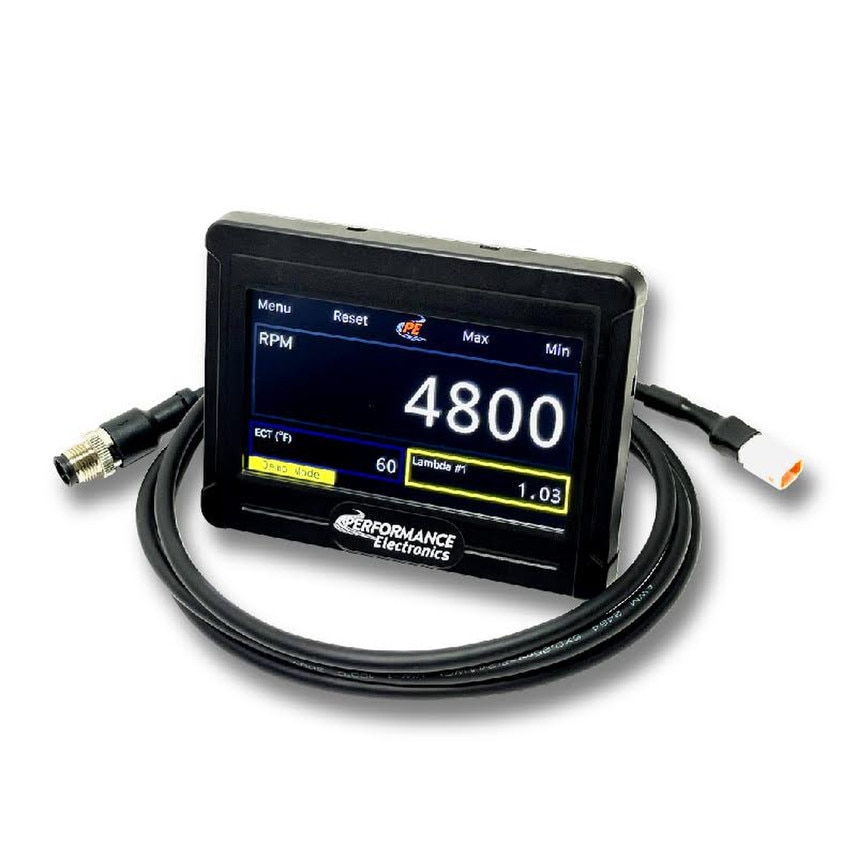

PE3 Sealed Dash Kit

The PE-Sealed Dash is now water resistant and allows you to monitor critical engine parameters from the driver’s seat when connected to a PE3 ECU or other compatible ECUs. The PE-Dash gives you the ability to configure warnings, alarms, screen playback and recall min/max values of monitored data with the touchscreen display like RPM, engine water temp, or any channels that are being displayed on the dash. The PE-Dash comes with an isolation mount configuration to mount to your dash.

• Water and Dust Resistant Enclosure – Tested to IP67 Standards
• Displays Up to 8 Data Channels
• Full Color LCD
• Configurable Multi-Touch Display
• Visible in Direct Sunlight
• Adjustable Brightness
• User configured Warning and Alarms
• Screen Playback Last Run
• Min/Max Recall

*PE Dash JST Pigtail required if connecting to a PE3 EFI ECU or non-PE3 ECU

Comes With:

• PE-Dash Capacitive Touch Screen

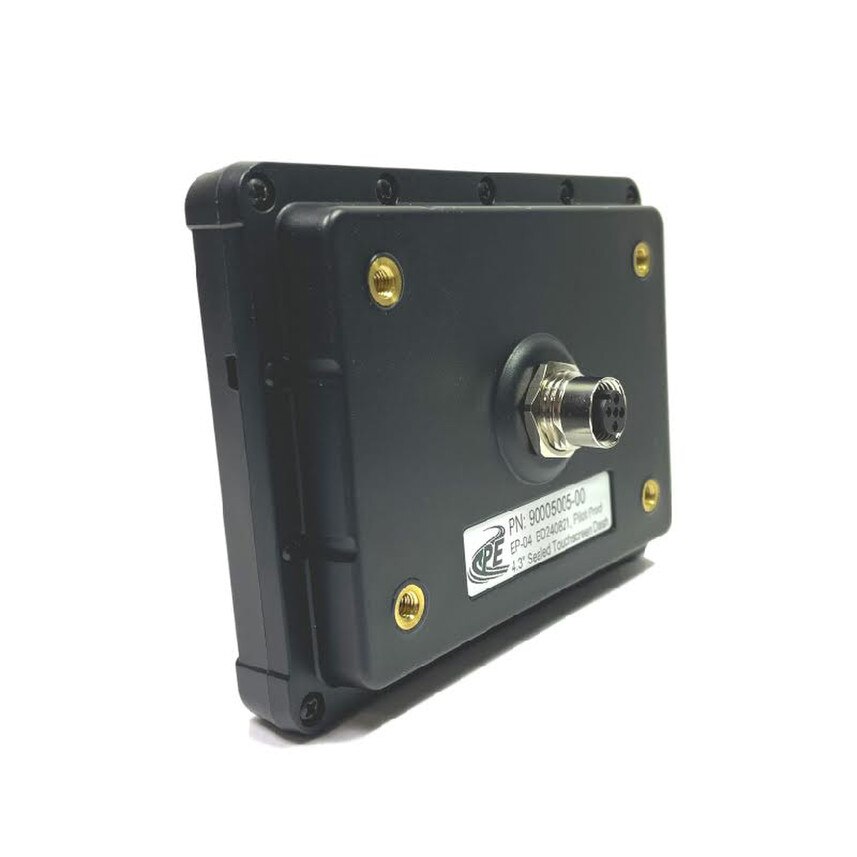

• Rugged Panel Mount Enclosure
• Panel Mount with 4 Vibration Isolators
• PE-Dash Communication Cable – 18″

Get the flush mounted dash for a professional installation, 604-542.

The PE dash only records min max of these data channels if they are setup and sensors are being used for:

• RPM
• Throttle Position (TPS)
• Air Temp (IAT)
• Engine Temp (ECT)
• Manifold Pressure (MAP)
• Manifold Boost (Boost)
• Battery Voltage (Battery)
• Ignition Angle (Ign Angle)
• Lambda/AFR#1
• Speed
• Injector Open Time (Open T)
• Lambda/AFR#2
• Oil Temp (Oil T
• Oil Pressure (Oil P)
• Fuel Temp (Fuel T)
• Fuel Pressure (Fuel P)

Will not record lap times or track mapping. No GPS data is available.
