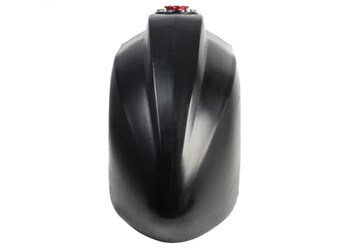

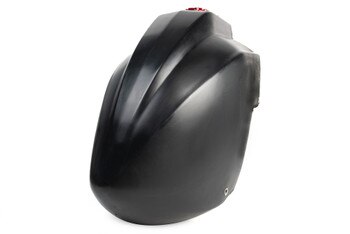

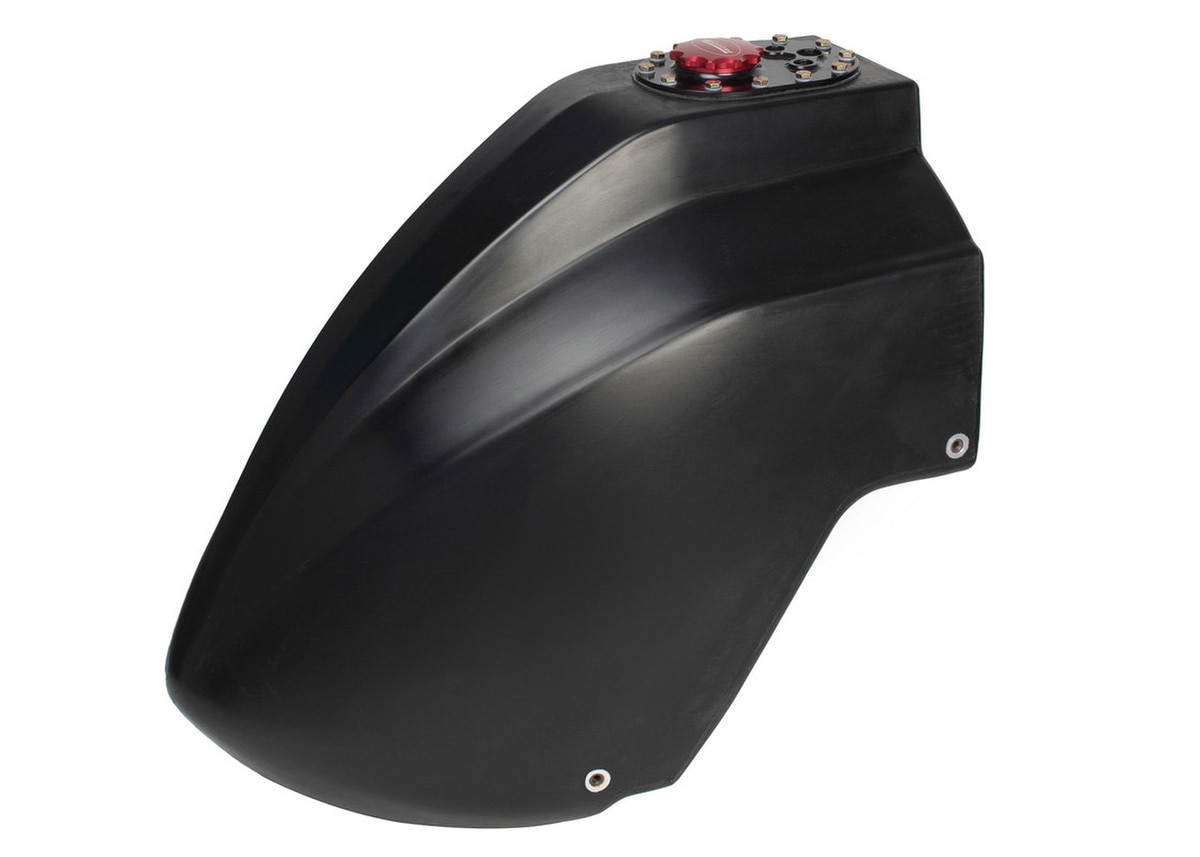

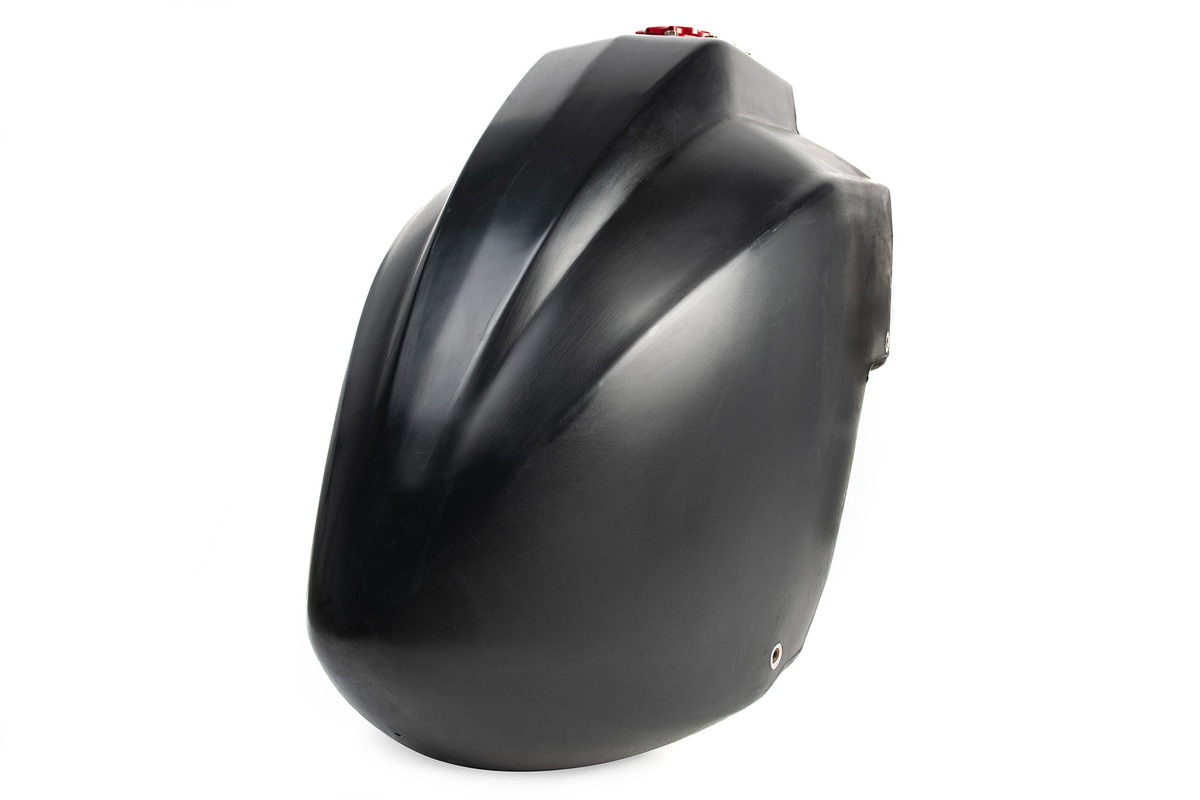

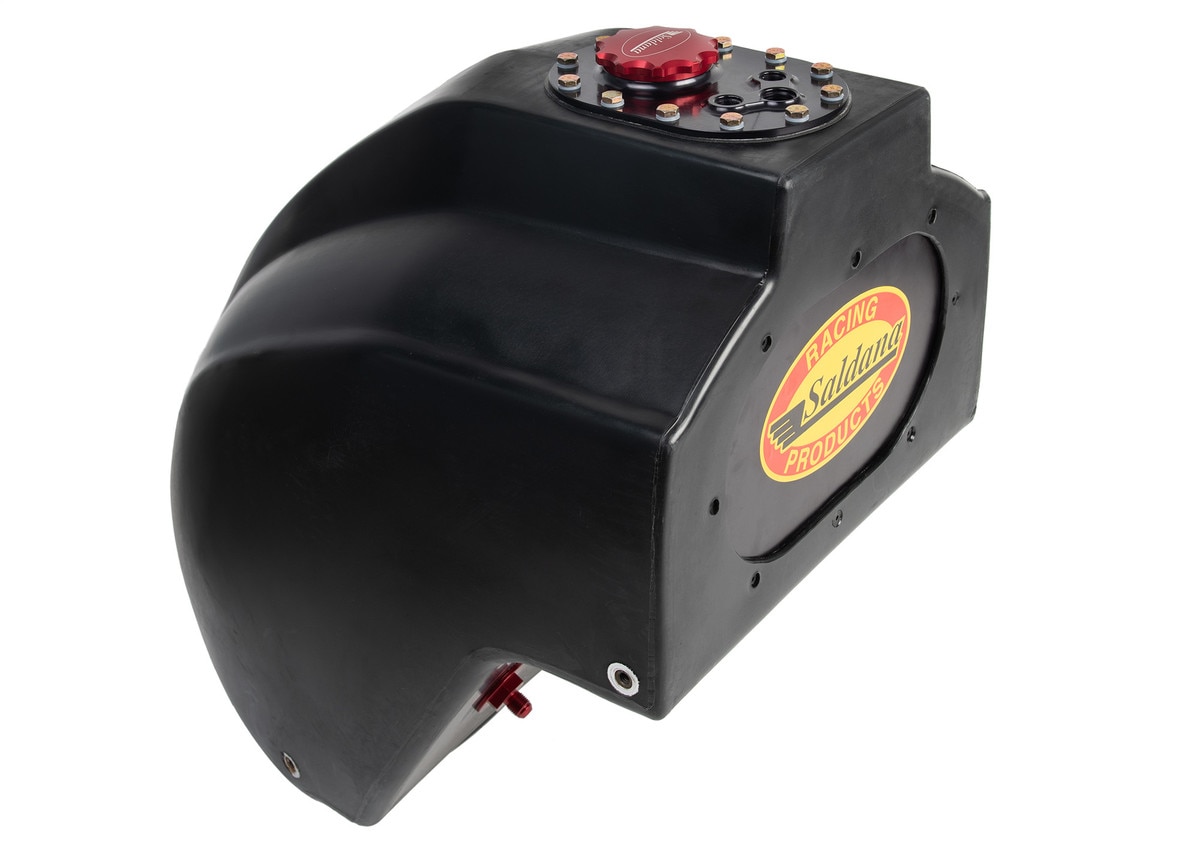

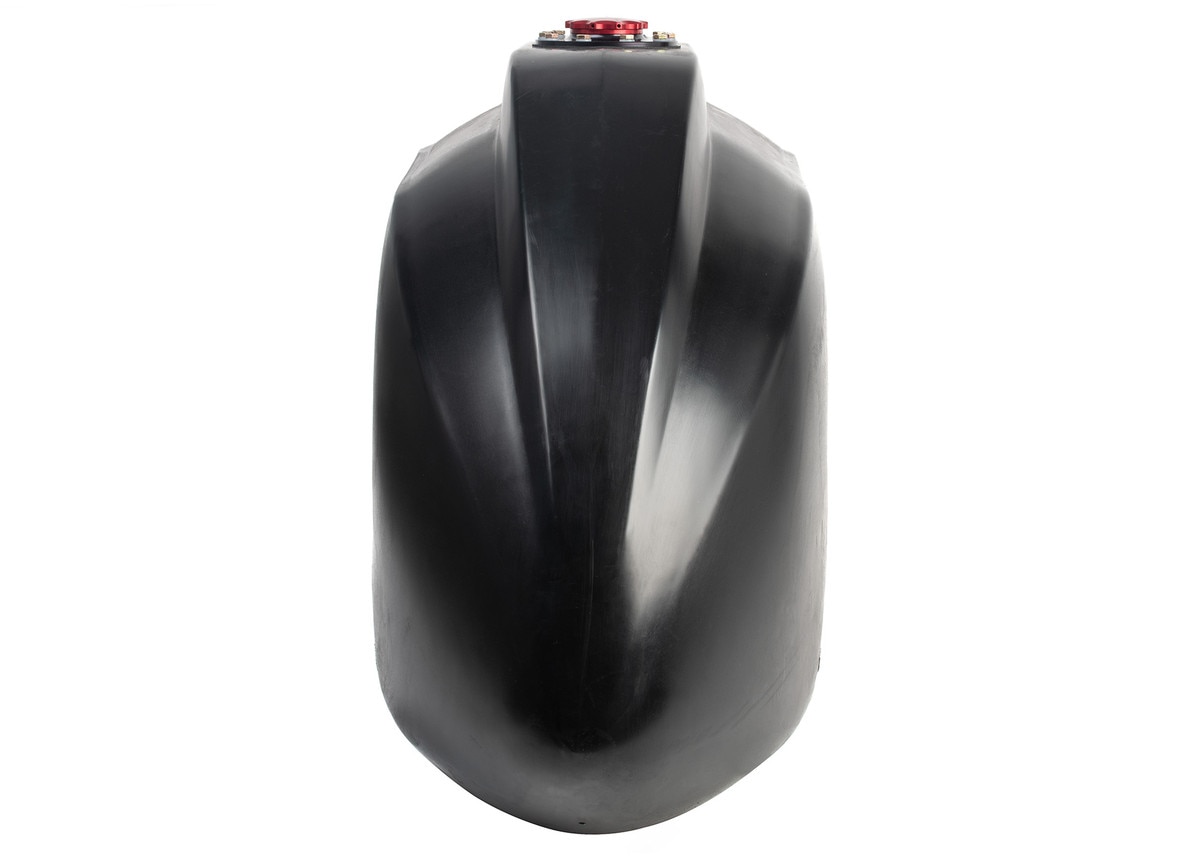

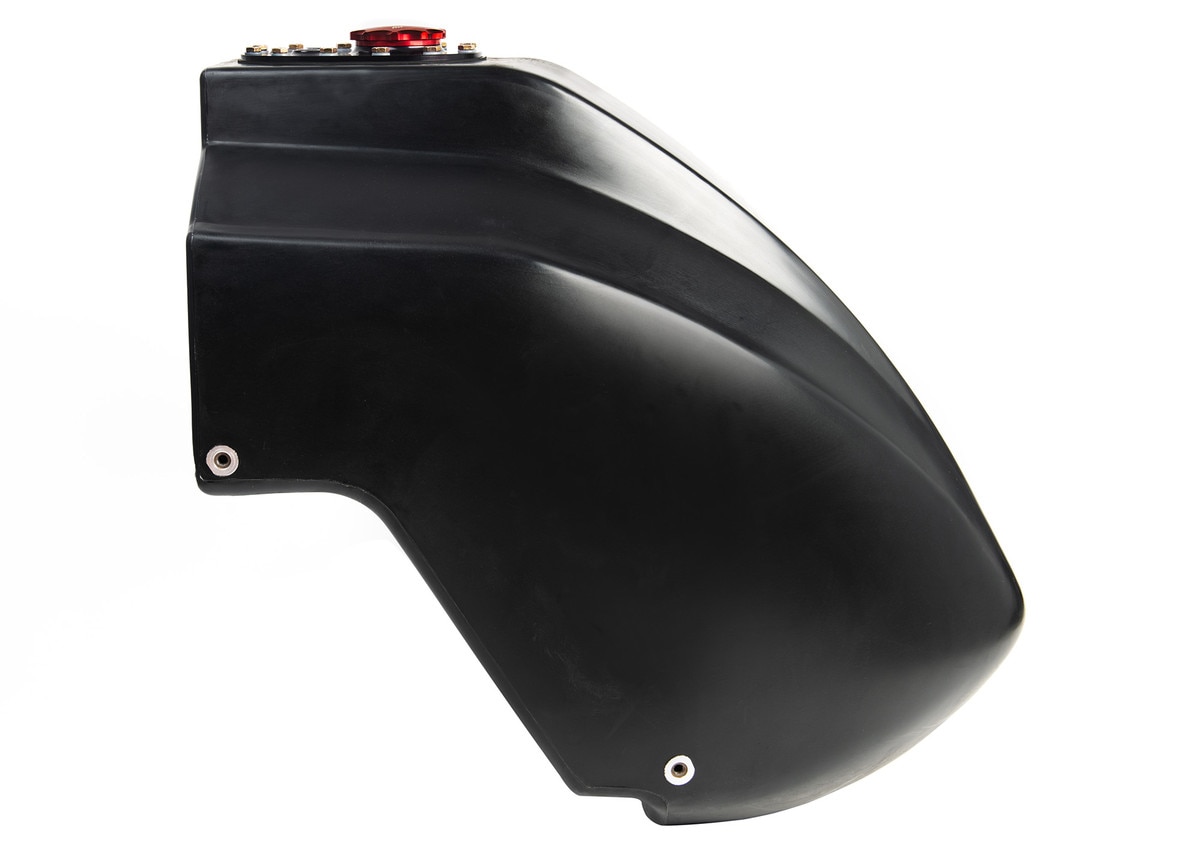

Lazer Fuel Forward Tank Tail with Bladder Alcohol 6AN
Brief Description
Details

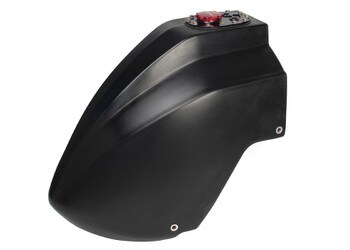

The Lazer Micro/Mini Sprint Tank Tail is second in the series of revolutionary Fuel Forward designs, exclusive to Hyper Racing! The Lazer Tank Tail design has been specifically created to complement our Lazer complete body style. Get all the features of the original Fuel Forward Tank Tail with the Lazer Fuel Forward Shell that will have heads turning. For use on your Micro/Mini Sprint or Lightning Sprint. Available for alcohol or gasoline with 6AN or 8AN fittings. When it comes to design and quality, it doesn't get any better than the Hyper Racing Lazer Tank Tail with bladder manufactured by Saldana Racing Products exclusively for Hyper Racing.
Features choice of bladder depending on the type of fuel you are running. Alcohol bladder is for alcohol ONLY and gasoline bladder is for gasoline ONLY. Failing to use the correct type of fuel (even if just for flushing) will destroy the bladder. Use our purge tank to safely prepare your system for off-season storage.
Includes:
- 14 gallon hard plastic Lazer Fuel Forward shell
- 8 gallon Fuel Forward bladder for alcohol
- Saldana lightweight threaded cap assembly
- access cover plate
- foam tail plug
- gasket for cap
- 6AN bulkhead fitting (for 8AN order # 14-1242)
- pick-up hose (user will need install this into the bulkhead)
- hardware

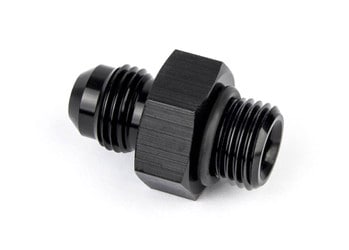

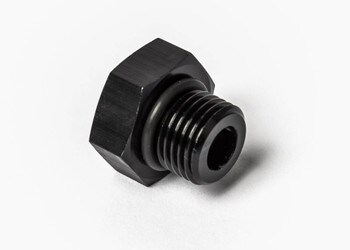

The cap assembly requires the use of (2) 41-581406 9/16" o-ring port plugs and a 41-985068 3/4" o-ring to 6AN (or 8 AN) for the return line. These items are sold separately.
The Fuel Forward System
The Original Fuel Forward Tank Tail was an industry first, conceived, designed and brought to the micro sprint industry by Hyper Racing. Mike Dicely, assisted by Jarrett Seng of RaceSeng Design, created this new ultimate tail design to get the fuel weight right where you want it: forward and lower by about 12%. Forward and lower is better, because it keeps the diminishing weight of fuel closer to the center of gravity of the car reducing the polar moment of inertia. Also, as fuel sloshes around behind the rear axle it has a whipping effect on the car as it negotiates a turn, making the car looser. Moving the fuel load of 40 pounds for a little over 5 gallons (on average) front and down will translate to better handling of a properly balanced car.
If the car needs a higher center of gravity to increase bite, the car or the driver can be raised. Keeping the fuel load down and front will keep handling consistent as the fuel load decreases as the race progresses.
The fuel bladder option of this tank takes the design intent to the extreme. The flexible rubber inner bladder does not occupy the back 8" of the tank, instead it is filled with energy absorbent foam. This serves two purposes, it adds a safety crush zone, and it forces the fuel even further forward. The bladder will hold a total of 8 gallons.

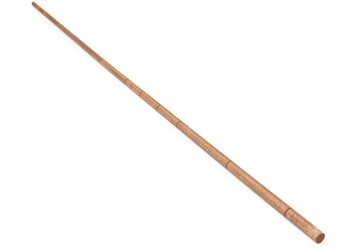

Don't forget to order our 80-418 fuel stick to measure your fuel!
Fuel Stick Measurements for this tank:
1 gallon 1-1/2"
2 gallons 5”
3 gallons 9”
4 gallons 11”
5 gallons 13”
6 gallons 15”
When measuring, make sure the stick is to the rear left furthest point, behind the shelf and to the left of the baffle.
