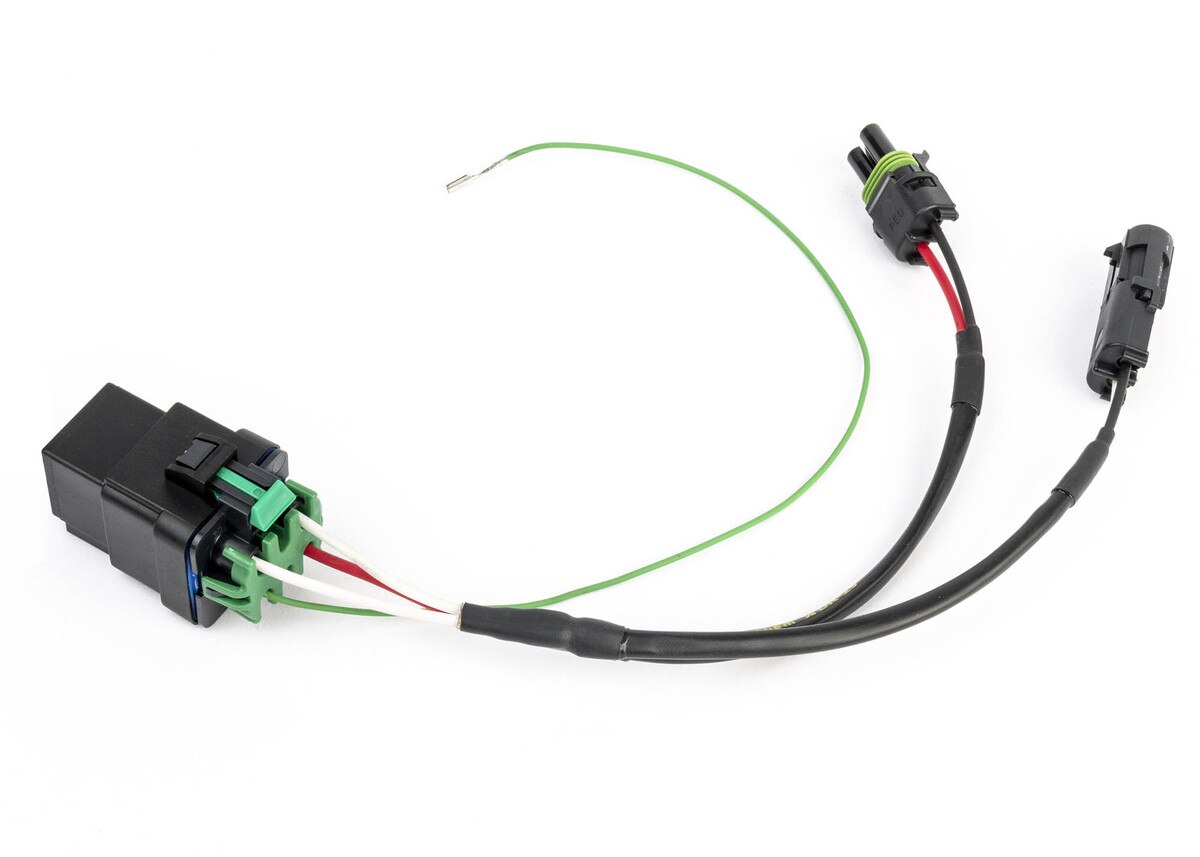

Fuel Pump Relay Kit for use with Hyper Chassis Harness or Similar

Safety first! Use this sealed relay to turn the fuel pump on and off as the ECU demands. It is a safety feature, so when the engine shuts off, the ECU will turn the pump off. This prevents fuel from continuing to flow when the driver cannot or does not turn the fuel off manually. If a fuel line is broken and the car is stopped, the relay will provide added protection against potential fire and feeding of fire. Complies with U6SA requirement for fuel pump relay.

The green wire (trip wire) will get pinned into the ECU connector or crimped to the relay trip wire from the ECU. See below for pin location in the ECU connector.

The two wire connectors will splice into the connection from the Hyper Chassis Harness Assembly to the fuel pump sub harness.

Fuel Pump Relay Signal Wires in ECU’s

Yamaha R6 ’03-’05 - Pin 32 (OEM wire color - light green)

Yamaha R6 ’08-’16 - Pin 23, left connector (OEM wire color - blue/yellow)

Yamaha R6 ’17 & Up - Pin 30, right connector (OEM wire color - blue/white)

Suzuki GSX-R ’08 & Up - Pin 4, left connector (OEM wire color - yellow/black)

Kawasaki ZX-6R ’05-’06 - Pin 4, left connector (OEM wire color - brown/yellow)

Kawasaki ZX-6R ’09-’12 - Pin 12, right connector (OEM wire color - brown/yellow)

Kawasaki ZX-6R ’13-’18 - Pin 7, right connector (OEM wire color - brown/yellow)

PE3 - Digital output 1 Pin 11, left connector (Hyper wire color - light green)
