Bell Crank Remote Panhard Adjuster Assembly

SKU 04-510
$189.00
(0)No Reviews yet

Brief Description

Bell Crank Remote Panhard Adjuster Assembly

Details

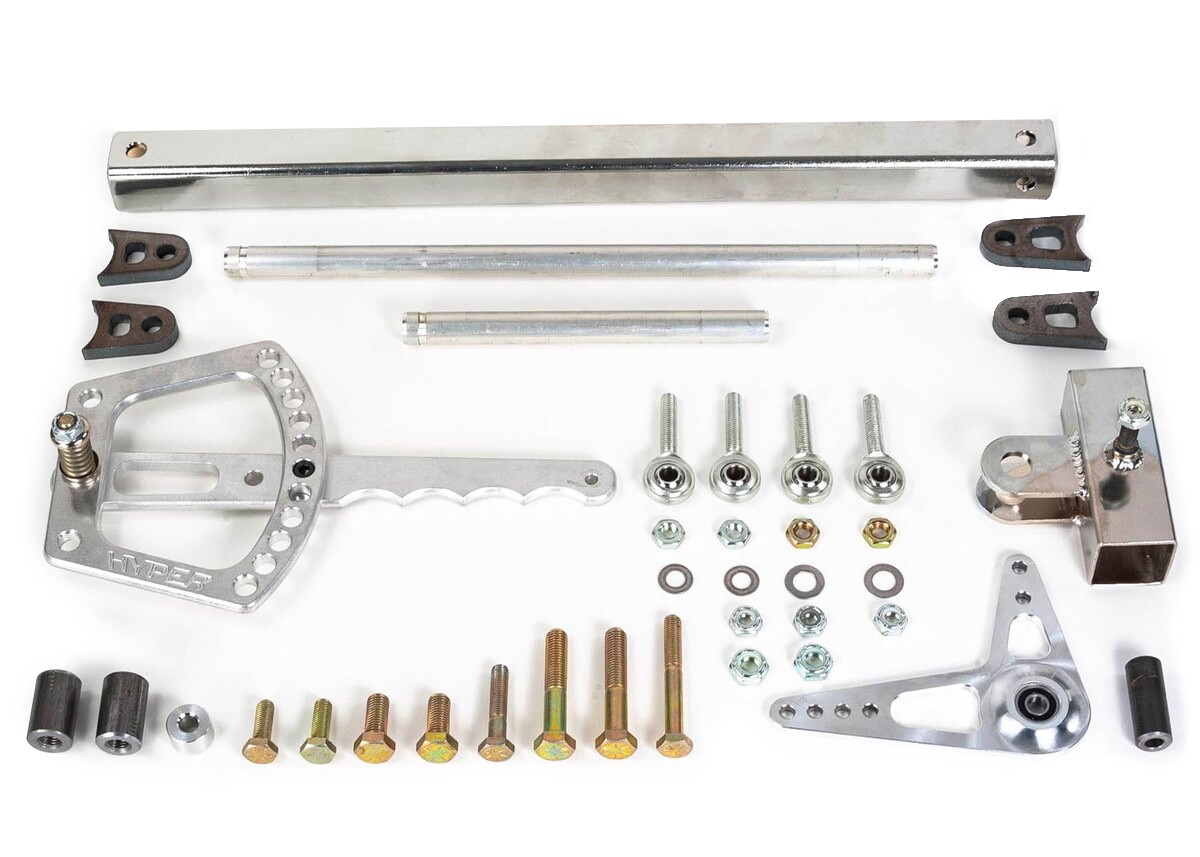

Includes slider tube, slider, weld-on bosses and tabs, 1/4" male rod ends (4), bell crank, short lever adjuster, long and short rods and hardware.

​​​​​​COMPONENTS:

04-504 - Panhard Slider Sleeve Tube (1)
04-507 -Panhard Slider, for Pinned and Adjustable Panhard Bars (1)
04-515 - Upper Crank Rod, 11" Long (1)
04-516 - Lower Crank Rod, 5-1/2" Long (1)
04-519 - Bell Crank (1)
04-525 - Bell Crank Spacer (1)
30-221 - Lever Adjuster, Short Handle for 600 Micro Sprint (1)
70-310 - 1/4" Right Hand Jam Nut, Plated Steel (2)
70-311 - 1/4" Left Hand Jam Nut, Plated Steel (2)
71-CML4 - CML4 Rod End 1/4" Male Left (2)
71-CMR4 - CMR4 Rod End 1/4" Male Right (2)
95-035 - 1/4" I.D. x 5/8" Spacer (1)
95-116 - 5/8" O.D. x 1" x 5/16"-24 Threaded Boss (2)
95-132 - 1/2" O.D. x 1 1/4" x 1/4" I.D. Boss (1)
976-04-28 HALF - 1/4-28 Nylock Half Nut (4)
T-05 - Rear Wing/Lower Panhard Bar Tab (2)
T-45 - Upper Panhard Bar Tab (2)
