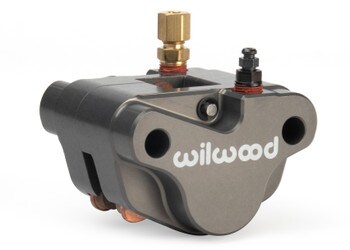

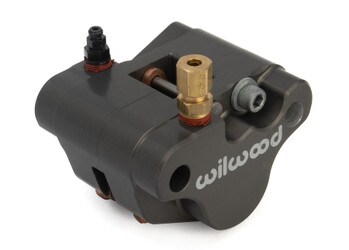

Wilwood Billet Caliper 2-Piston Caliper, Junior Sprint/Go-Kart

Billet Aluminum, A unique self retracting and adjusting piston system has been incorporated into this caliper which enables the piston to retract as the brake line pressure is reduced.

Weighing a meager 1.2 pounds, the caliper’s lightweight billet design includes high performance, high friction brake pads. Additional features include deep cup stainless steel piston for reduced heat transfer, cotter pin, pad retainer, internal fluid passage and anodized finish.

2-¼" Mounting Center distance and designed for a 1/8" thick rotor.

Wilwood Part No. 120-5498

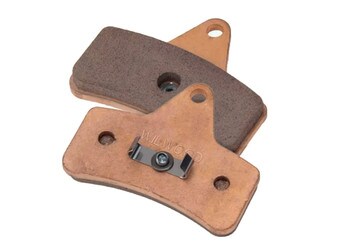

Wilwood brake Pad 150-5602K, rebuild kit 220-5766.
