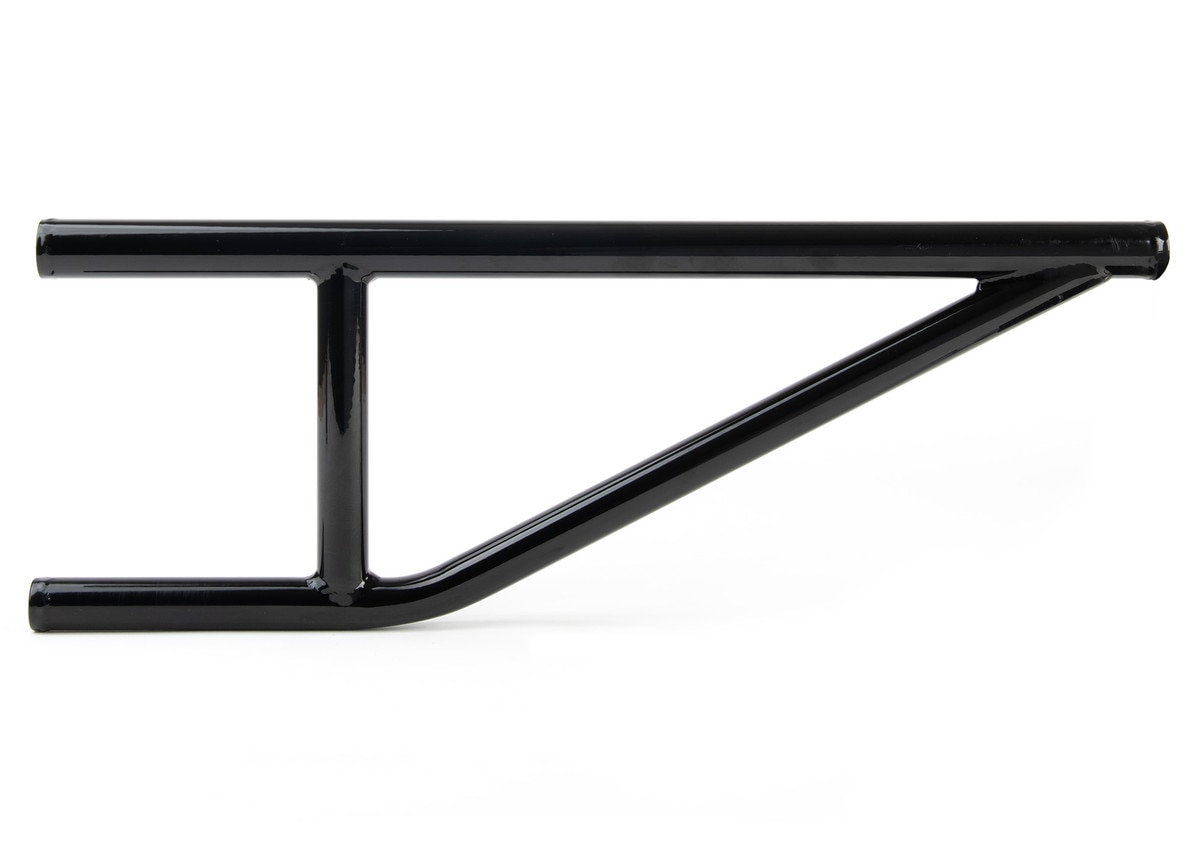

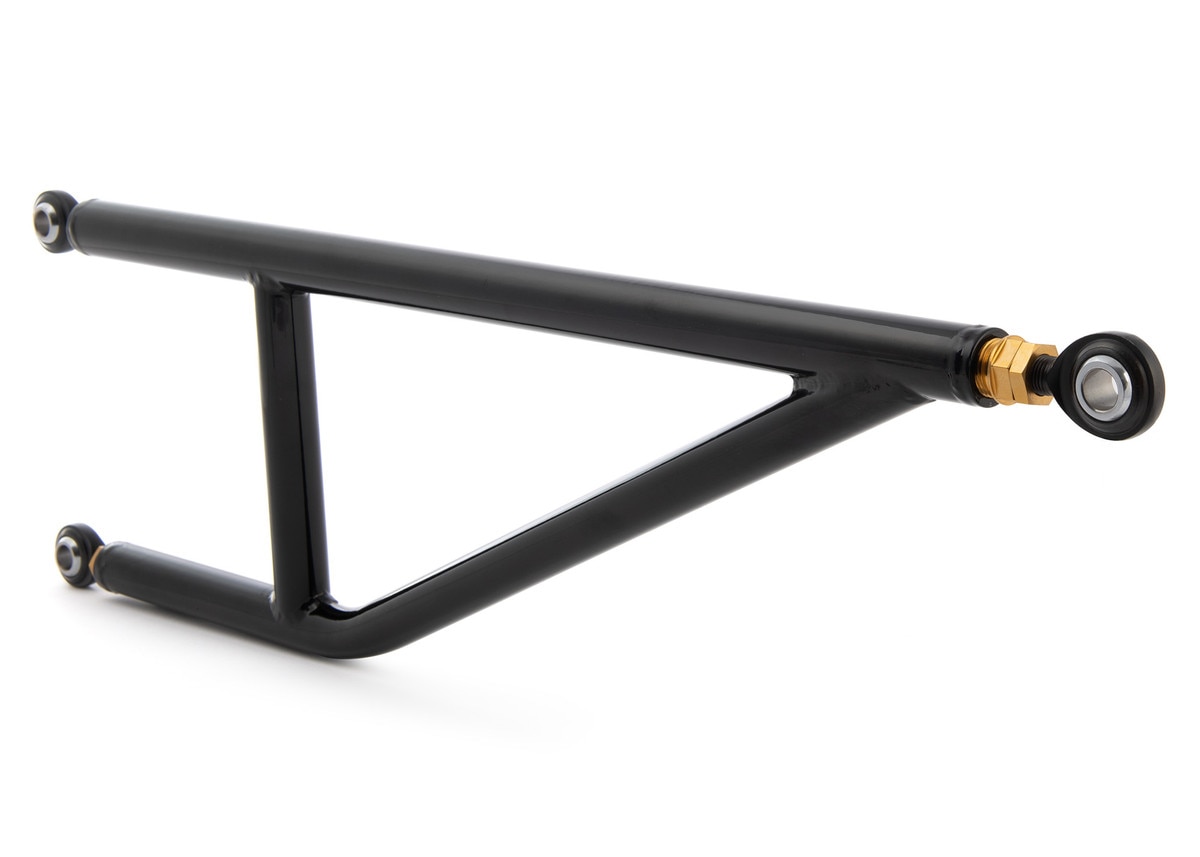

Turnbuckle 20" Wishbone, Left Side, Long Wheelbase, or Right Side, Short Wheelbase, Lower Hole

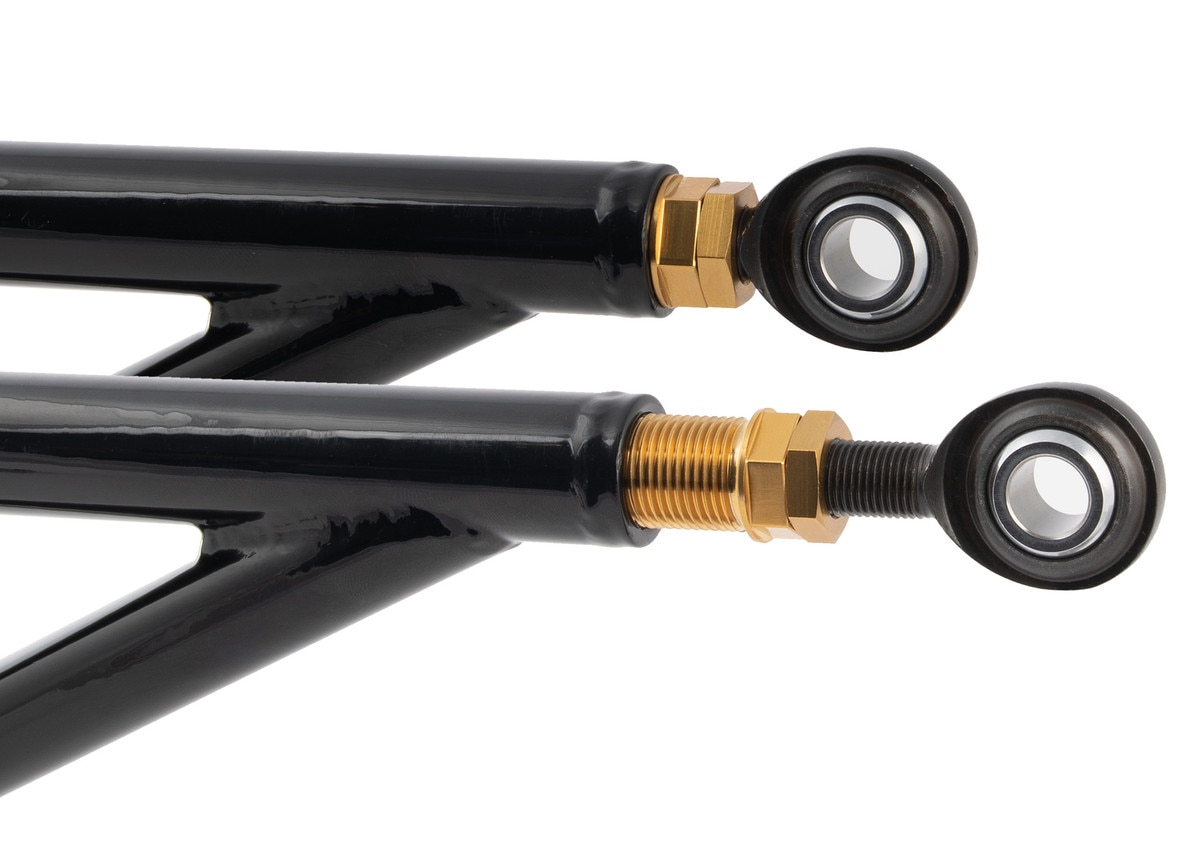

Turnbuckle Wishbone design allows for super easy length adjustment. Simply break the jam nut loose and turn the turnbuckle to lengthen or shorten the wishbone by up to 1-1/2". Right hand turnbuckle and left hand rod end threads enable the rapid adjustment. Use our handy Thin 3/4"-13/16" Wrench for Wishbone Turnbuckle to make adjustments with minimal effort.

How to order the correct Turnbuckle Wishbone: If currently using a standard wishbone, simply order the turnbuckle wishbone in the same length as your standard wishbone, since the turnbuckle wishbone measurements account for the addition of the turnbuckle insert and jam nut (all sold separately). For example, the 20” turnbuckle wishbone actually measures 19-1/4” across the top, but after adding the turnbuckle insert, the median effective top length is 20”. 95-1072 Titanium Turnbuckle, rod ends and jam nuts are all sold separately. In cases when the rod end is at full extension, it is recommended to add a 70-700Ti 3/4" jam nut (sold separately) to the turnbuckle.

This wishbone fits the X4, X6, and X7 (standard axle position, long wheelbase) on the LEFT side. Also fits the X7 chassis on the RIGHT side when the rear axle is used in the forward axle position (short wheelbase) and the lower frame mounting hole. When installed, the median effective top length is 20".

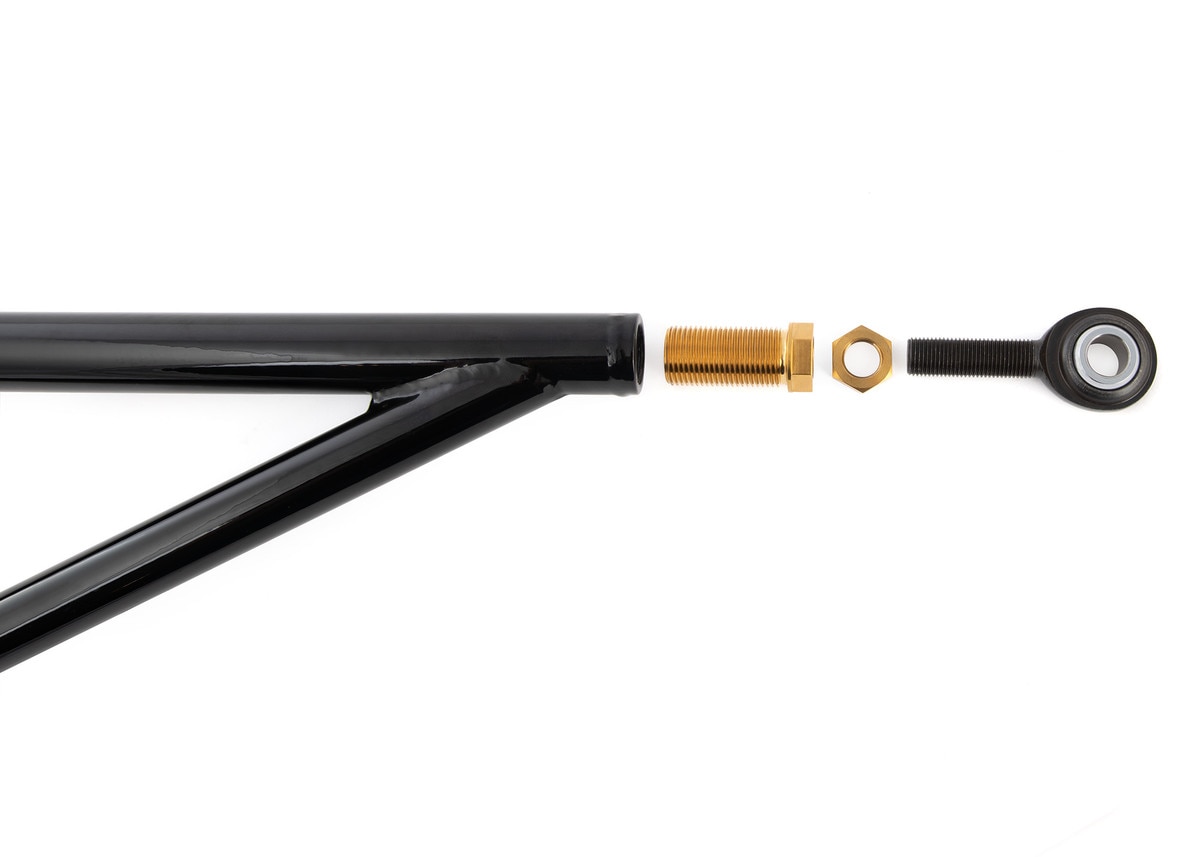

Requires 95-1072 Titanium Turnbuckle, 1/2" male left hand rod end & jam nut on the front, and two 7/16" right hand rod ends & jam nuts on the rear. In cases when the rod end is at full extension, it is recommended to add a 3/4” jam nut (sold separately) to the turnbuckle.

Turnbuckle wishbones are fabricated from 4130 chromoly tubing in our Lewisberry, PA facility, and powder coated black.

Can I turn a standard wishbone into a turnbuckle wishbone? No. The turnbuckle wishbone has a 3/4”-16 thread instead of a 1/2”-20 thread, so you need to purchase the turnbuckle wishbone and the corresponding turnbuckle, jam nut and rod end.

HYPER RACING’S GOLD STANDARD: Components marked with the gold H-Mark logo are part of Hyper Racing’s Gold Standard lineup, recommended for X4–X7 600cc Micro Sprint Chassis. Each one is tested and proven to deliver the highest level of performance, giving you confidence that you’re running parts built to meet our standard.
