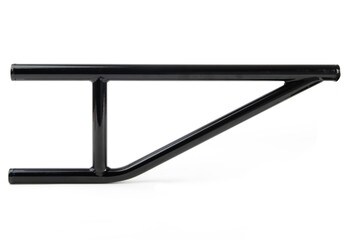

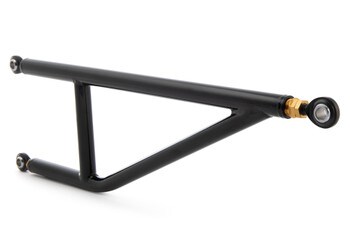

Turnbuckle 20-3/4" Wishbone, Right Side, Short Wheelbase, Upper Hole

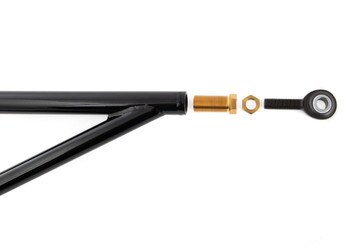

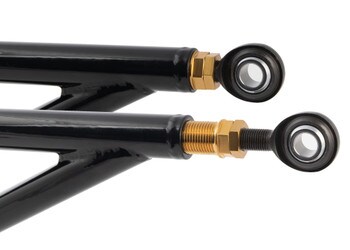

Turnbuckle Wishbone design allows for super easy length adjustment. Simply break the jam nut loose and turn the turnbuckle to lengthen or shorten the wishbone by up to 1-1/2". Right hand turnbuckle and left hand rod end threads enable the rapid adjustment. Use our handy Thin 3/4"-13/16" Wrench for Wishbone Turnbuckle to make adjustments with minimal effort.

How to order the correct Turnbuckle Wishbone: If currently using a standard wishbone, simply order the turnbuckle wishbone in the same length as your standard wishbone, since the turnbuckle wishbone measurements account for the addition of the turnbuckle insert and jam nut (all sold separately). For example, the 20” turnbuckle wishbone actually measures 19-1/4” across the top, but after adding the turnbuckle insert, the median effective top length is 20”. 95-1072 Titanium Turnbuckle, rod ends and jam nuts are all sold separately. In cases when the rod end is at full extension, it is recommended to add a 70-700Ti 3/4” jam nut (sold separately) to the turnbuckle.

This wishbone fits the X7 style chassis on the right side in the upper frame hole, when the rear axle is in the forward position (short wheelbase). When installed, the median effective top length is 20-3/4".

Requires 95-1072 Titanium Turnbuckle, 1/2" male left hand rod end & jam nut on the front, and two 7/16" right hand rod ends & jam nuts on the rear. In cases when the rod end is at full extension, it is recommended to add a 3/4” jam nut (sold separately) to the turnbuckle.

Turnbuckle wishbones are fabricated from 4130 chromoly tubing in our Lewisberry, PA facility, and powder coated black.

Can I turn a standard wishbone into a turnbuckle wishbone? No. The turnbuckle wishbone has a 3/4”-16 thread instead of a 1/2”-20 thread, so you need to purchase the turnbuckle wishbone and the corresponding turnbuckle, jam nut and rod end.
