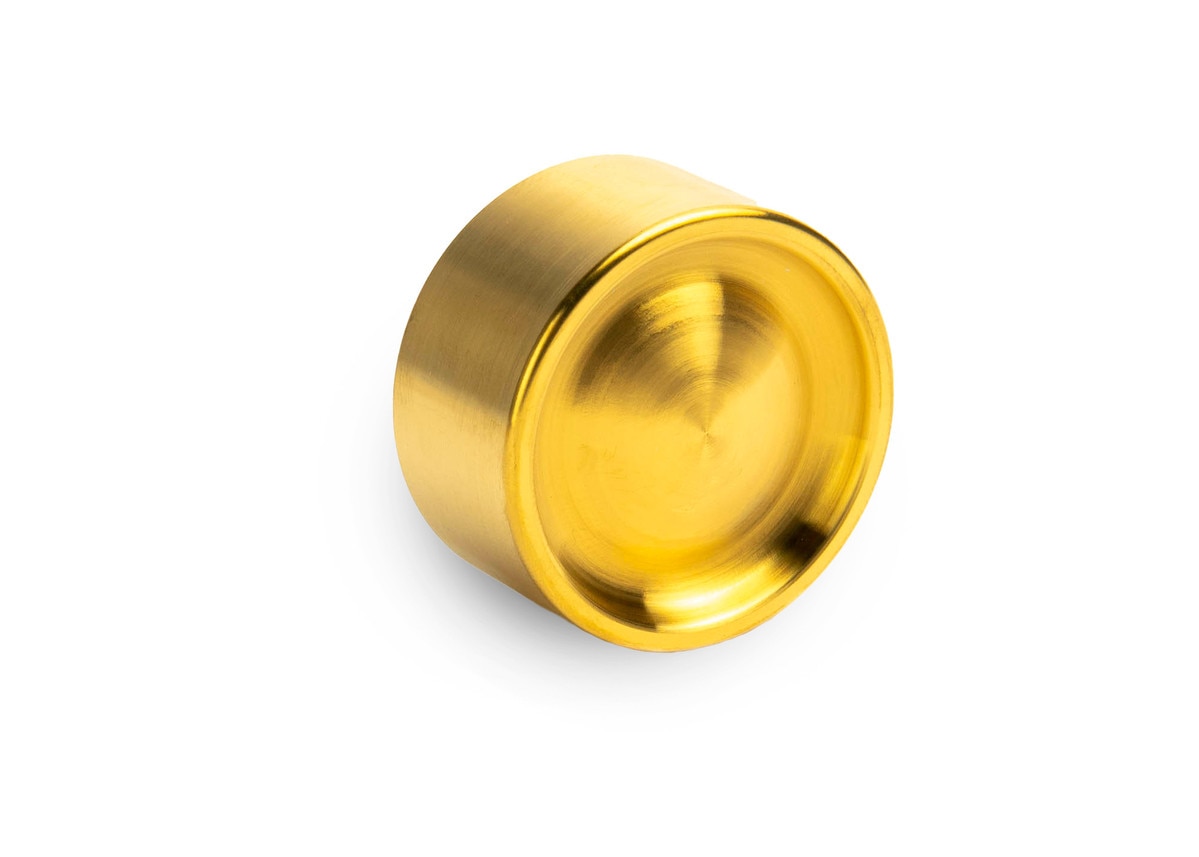

Ti Piston for Dynalite, 3/8" Rotor (each)
Details
Reduce the chances of boiling your brake fluid. Save weight (62 grams per pair, 104 grams for 4 piston caliper).
Direct replacement for Wilwood Part # 200-7528. 1.750" diameter. Fits 3/8" thick rotor. For 600's running a 3/16" rotor, use the 36-1051Ti to eliminate the need for brake pad spacers.
Hyper's very own 6AL-4V Titanium Brake Caliper pistons are made from extremely low heat conductive titanium material to significantly reduce the chances of boiling your brake fluid. As you can see by the chart below, titanium will transfer 3 times less heat than Wilwood's stainless steel piston.
Direct replacement for Wilwood Part # 200-7528. 1.750" diameter. Fits 3/8" thick rotor. For 600's running a 3/16" rotor, use the 36-1051Ti to eliminate the need for brake pad spacers.
Hyper's very own 6AL-4V Titanium Brake Caliper pistons are made from extremely low heat conductive titanium material to significantly reduce the chances of boiling your brake fluid. As you can see by the chart below, titanium will transfer 3 times less heat than Wilwood's stainless steel piston.
Material | Grade | Thermal Conductivity |
Aluminum | 7075 – T6 Alloy | 130 |
Steel | 1330 | 51.9 |
Steel Alloy | 4118 | 44.5 |
Stainless Steel | 304 | 21.5 |
| 310 | 14.2 |
Titanium | CP, commercially pure, Grade 2 | 16 |
| 3.2 Al-4V alloy | 11.8 |
| 6Al-4V alloy, Grade 5* | 6.7 |
