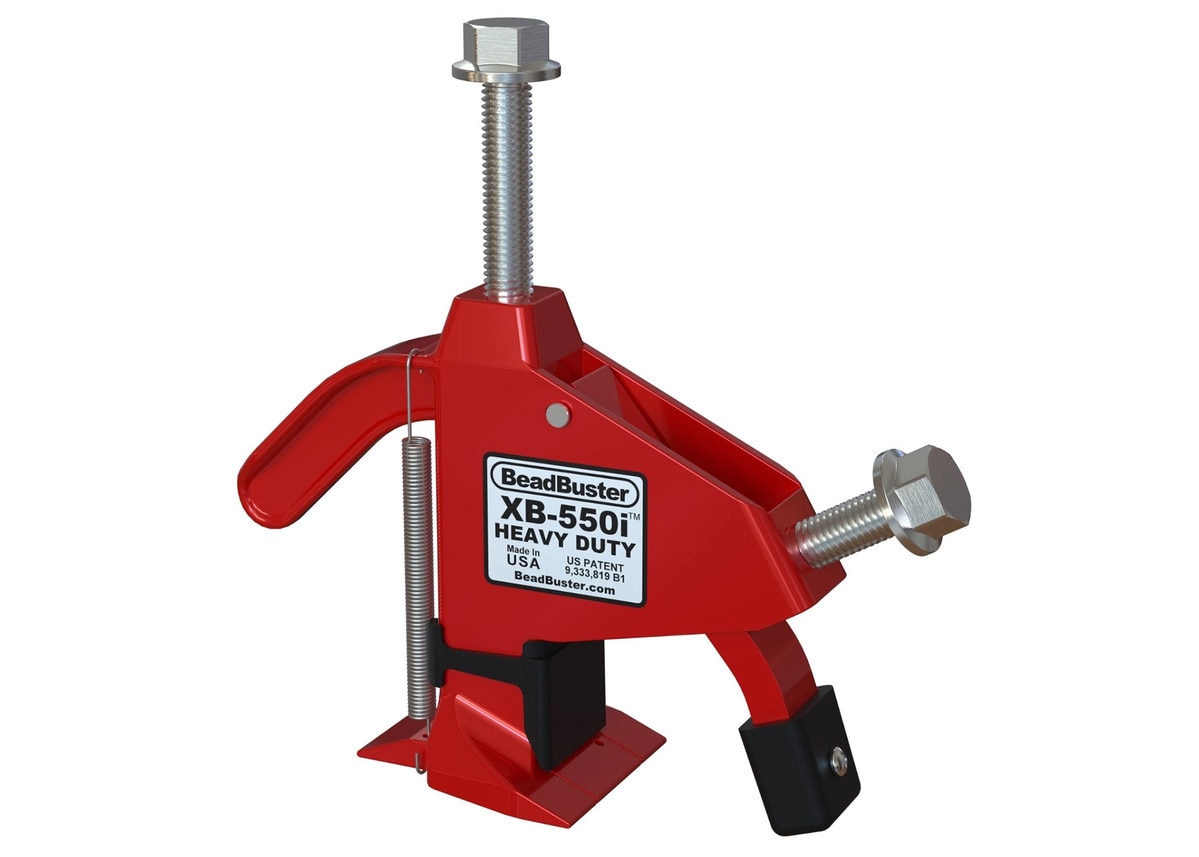

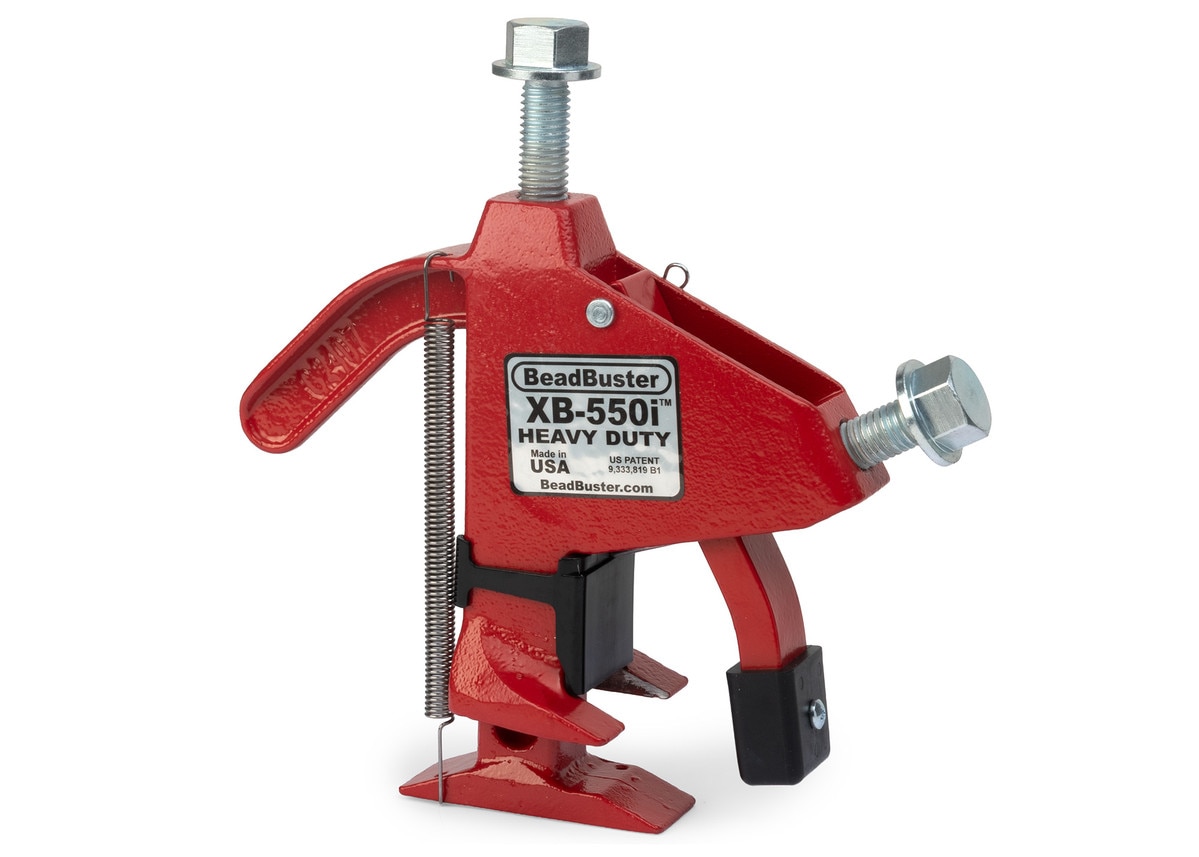

BeadBuster XB-550i, 9" to 22" wheels

Made in USA. Investment Cast, Hardened Chrome-Moly Steel Construction, Grade 8 Hardware.

• Micro Sprints
• Sprint Cars
• Midgets
• Farm Tractors
• Lawn Mowers, Garden Tractors
• Agricultural & Industrial Tires
• Heavy OTR (Off The Road) Tires
• Skid Loaders
• ATV’s, UTV’s (Side x Side’s)
• Military Vehicles
• Passenger vehicles
• Trucks, 4×4’s, Jeeps
• Rock Crawlers, Mud Boggers
• Heavy, Highly Modified Trucks (Monster Trucks)
• Semi Tractor Trailers
• Light Trailers

BEADBUSTER XB-550i HD FEATURES

• Ultimate rugged design
• Heavy duty for big tires and commercial use
• 4-way configurable for a variety of rim sizes (2-sided ram foot and included snap on plastic spacer)
• Premium build quality, 3 year manufacturer's warranty
• Tool body and ram foot made from hardened chrome-moly steel (AISI 4140, HRC 30)
• Improvement from old design: mild steel
• Investment casting tool body and ram foot
• Improvement from old design: weldments
• Custom grade 8 bolts
• Improvement from old design: grade 5
• Crowned bolt tips prevent mushrooming and thread damage
• Improvement from old design
• Custom alloy steel clevis hinge pin
• Improvement from old design: screw & wing-nut
• Polyester powder coat finish
• Padded clamp arm (Will not scratch or dent rims.)
• Patented design

SPECIFICATIONS:

• Weight: 6.8 lbs
• Size: 10″ x 10″ x 3″
• Max Rim Lip Depth Range (foot length): 0.585″ to ~1.50″
• Max Rim Lip Width (clamp opening): 2.70″
• Max Rim Lip Thickness: 1.75″
• Rim Diameter: Any
• Rim Width: Any
• Rim Material: Any
• Max Ram Extension (throw): 2.756″ (see diagram)
• Max Clamp Force: 8.1 tons
• Rim Material: 14.9 tons

The XB-550i is designed to handle the BIG tires that you’ll find on agricultural and industrial OTR wheels, large trucks, military vehicles, etc. The patented configurable ram foot can accommodate a large range of rim lip sizes, and it also works on ATV, UTV and Micro Sprints, Midgets, and Sprint Cars. It's still far more portable than any other OTR bead breaker, and much less expensive. If you are a racer, farmer, business owner, or a large vehicle enthusiast, you can use this pneumatic tire bead breaker to easily change your own tires whenever, and wherever you want.

IMPORTANT NOTES:

• A 15/16″ wrench is required to drive the clamp and ram bolts. Hand wrenches will work, but power tools are recommended. You can use an impact wrench but use caution with a 1/2″ pneumatic impact to not over-torque the bolts. A 3/8″ or 1/2″ cordless impact wrench is ideal.
• Tire Spoons are required to finish the job of removing the tire from the rim. Very large tires (>48″ dia.) may require even larger tire irons.
• The XB-550i will NOT work on 7″-8″ ATV wheels. It will work on 9″ or larger ATV wheels.
• Do not use a hammer to force the tool into place. Damage to the tool caused by hammering will void the warranty.  For tires with no/little gap, instead use screw drivers and small pry tools to open a gap in the tire/rim interface to get the tool started, and then allow the clamp bolt to do the work.
