1-3/4" x 56" Univ Splined Rear Axle Black w/ Shoulder Spacers

Includes (2) 055-1002 Radiused Reducers to stack up against the shoulder. This new axle requires these new spacers.

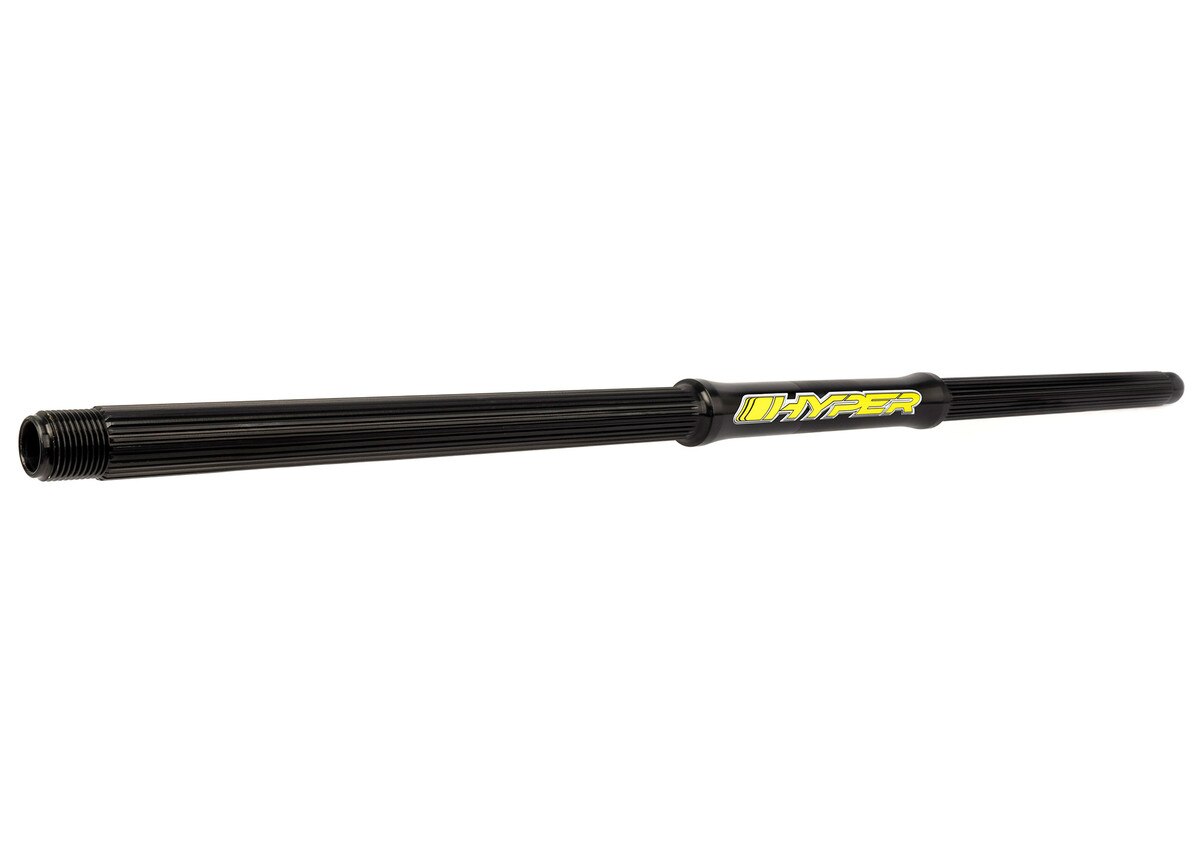

This 1-3/4" diameter x 56" long Universal Splined Rear Axle provides additional length to move the right rear and left rear wheels out farther. This longer length also allows using less offset right rear wheels for better tire wear.

CNC machined 1-3/4" diameter and 56" long splined rear axle is made from 7075 T-6 Aluminum with 27 splines. Super strong. Measures 21-3/8" from end of axle to shoulder on left, and 21-3/8" from end of axle to shoulder on right. Black anodized finish and laser etched Hyper Racing logo completes this high quality axle.

This axle has a radiused transition into the shoulder. 055-0752 3/4" Radiused Axle Spacer works perfectly with this axle.

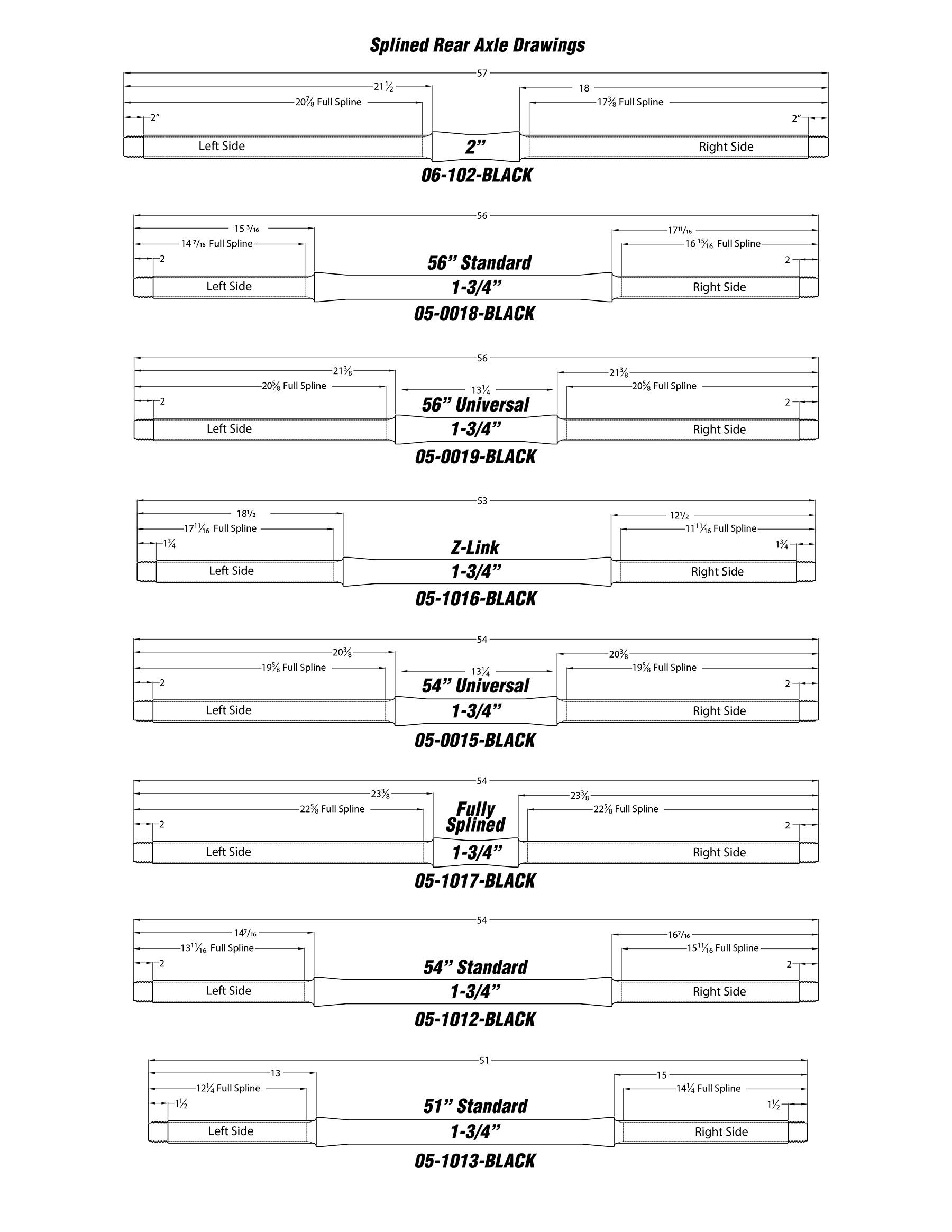

Want to compare all of our axles side by side? Check out Related Documents below for measurements of all the Rear Axles on one page.

1-3/4" x 56" Universal Splined Rear Axle fits 600cc Sprints, Lightning Sprints, Micro/Mini Sprints.

The center hole going through the axle is 1.00" diameter hole through, with a 1-1/8" dia. x 1-5/8" deep counter bore on each end.
