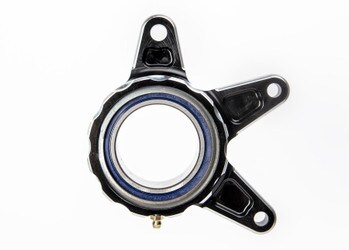

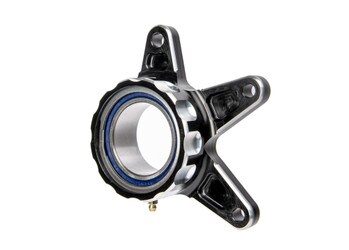

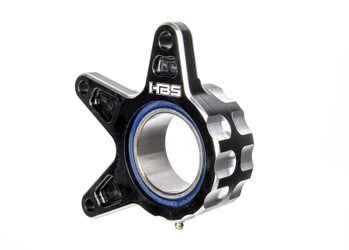

1-3/4" Brake Floater, 9-1/4" Rotor, 4-Piston Caliper

Double Wide Brake Floater for 4-Piston Caliper, 1-3/4” Splined Rear Axle and 9-1/4" Brake Rotor includes our high quality standard bearing.

Caliper spacing is 3-1/2" for the Wilwood GP320 4-Piston Brake Caliper (part # 36-101). Fits the Hyper 600cc Jacob's Ladder Chassis. Uses the 9-1/4" brake rotor. Bearing and snap ring are included. For any and all bearings, DAYLube™ High Performance Grease is your go-to product, so be sure to have it on hand. We recommend the bearings be greased before the first use with DAYLube™ High Performance Grease as it does not fling off.

Use 20.5" steel brake rod on '07 & Up Hyper Chassis in the standard wheelbase configuration. Use 19.5" steel brake rod on '07 & Up Hyper Chassis in the short wheelbase configuration.

Additional hardware not included in kit:

(1) 7/16-20 x 1-1/2" HHCS to attach the steel brake rod
(2) 3/8-24 x 1-1/2" HHCS with (2) 3/8-20 Nylock half nuts to attach the brake caliper
