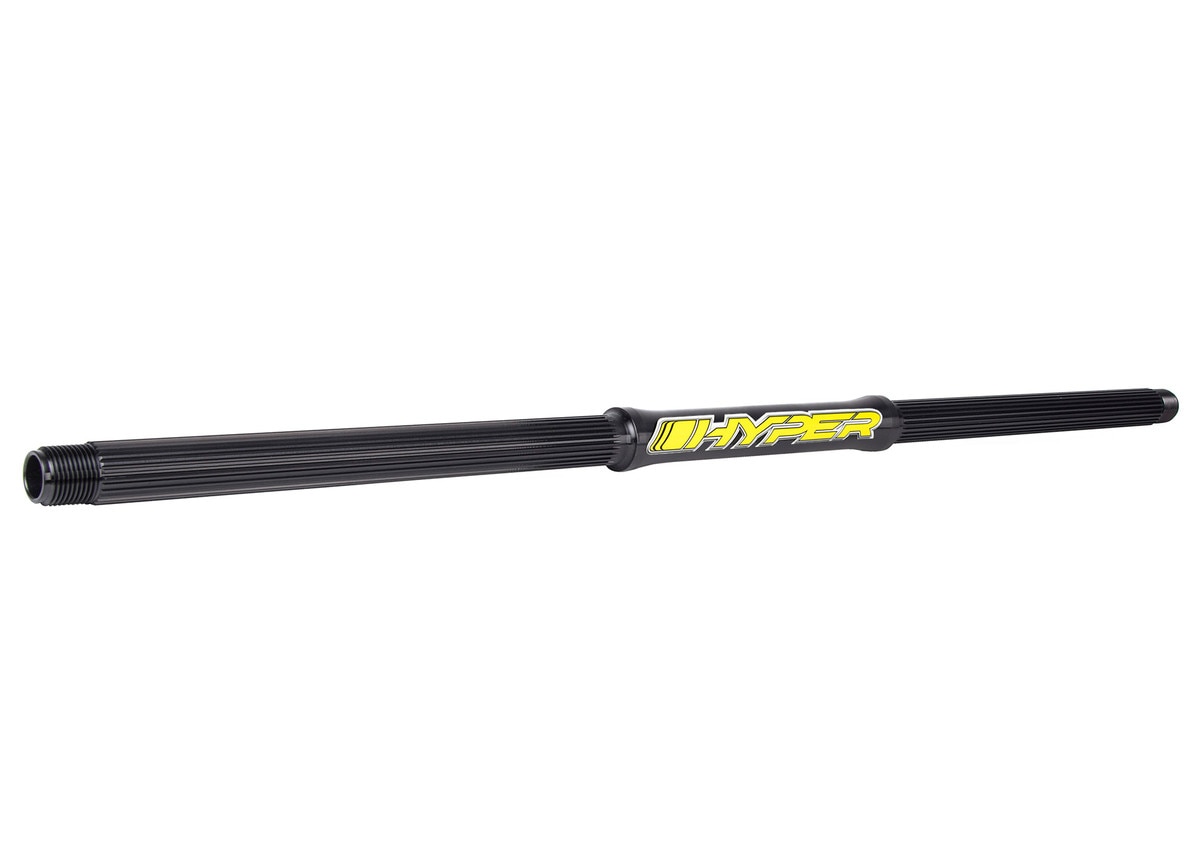

1-3/4" 54" Univ Splined Rear Axle Black w/ Shoulder Spacers

Includes (2) 055-0752 Radiused Reducers to stack up against the shoulder. This new axle requires these new spacers.

This 1-3/4" diameter x 54" Universal Splined Rear Axle fits Hyper 600cc Z-Link Chassis.

CNC machined 1-3/4" diameter x 54" long splined rear axle is made from 7075 T-6 Aluminum with 27 splines. Super strong. Measures 20-3/8" from end of axle to shoulder on left, and 20-3/8" from end of axle to shoulder on right. Black anodized finish and laser etched Hyper Racing logo completes this high quality axle.

This axle has a radiused transition into the shoulder. 055-0752 3/4" Radiused Axle Spacer works perfectly with this axle.

Want to compare all of our axles side by side? Check out Related Documents below for measurements of all the Rear Axles on one page.

1-3/4" x 54" Universal Splined Rear Axle fits 600cc Sprints, Lightning Sprints, Micro/Mini Sprints.

The center hole going through the axle is 1.00" diameter hole through, with a 1-1/8" dia. x 1-5/8" deep counter bore on each end.
