X7 270cc Chassis Kit 3
Details
X7 Hyper 270cc Chassis Kit 3
New for 2017, the X7 is the latest example of our extreme engineering. This is the 270cc version of our world famous 600cc chassis. It is built on the exact same frame as the 600 chassis with the exception of the engine mount. At any time, the 270 engine mount can be cut out and the 600 engine mount welded in for about $275. We recommend the 270 be configured as a Jacob's ladder with coil over or with torsion front. All frames can be used as both short wheelbase (good for light drivers, slick tracks, and wingless) or as a long wheelbase (the standard X6/X4 position) chassis. Just switch bearing carrier plates and one wish bone to make the change.
New for 2017, the X7 is the latest example of our extreme engineering. This is the 270cc version of our world famous 600cc chassis. It is built on the exact same frame as the 600 chassis with the exception of the engine mount. At any time, the 270 engine mount can be cut out and the 600 engine mount welded in for about $275. We recommend the 270 be configured as a Jacob's ladder with coil over or with torsion front. All frames can be used as both short wheelbase (good for light drivers, slick tracks, and wingless) or as a long wheelbase (the standard X6/X4 position) chassis. Just switch bearing carrier plates and one wish bone to make the change.
Click here for more information on the X7 chassis.
- Complete Hyper 4130 TIG welded frame

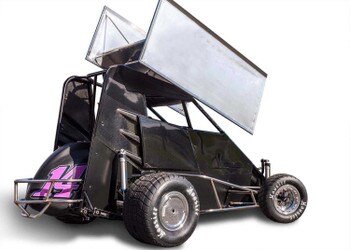

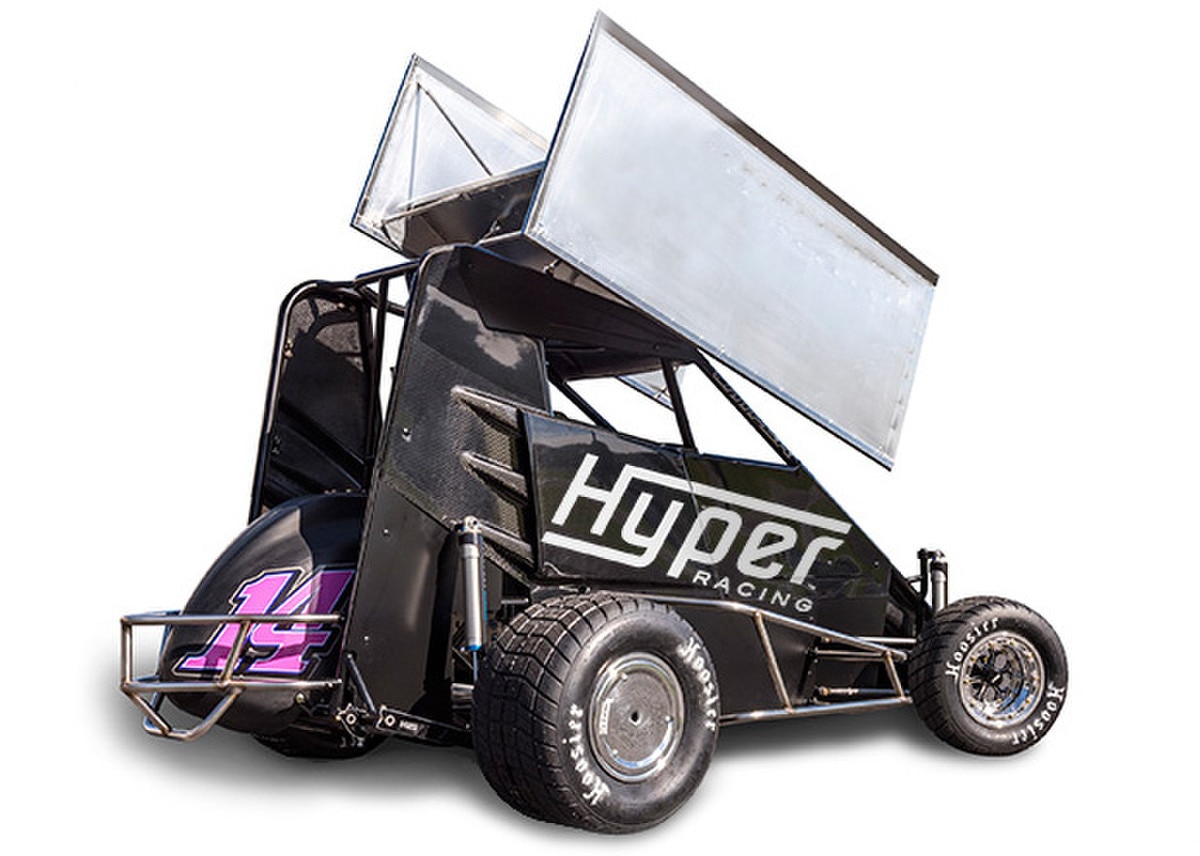

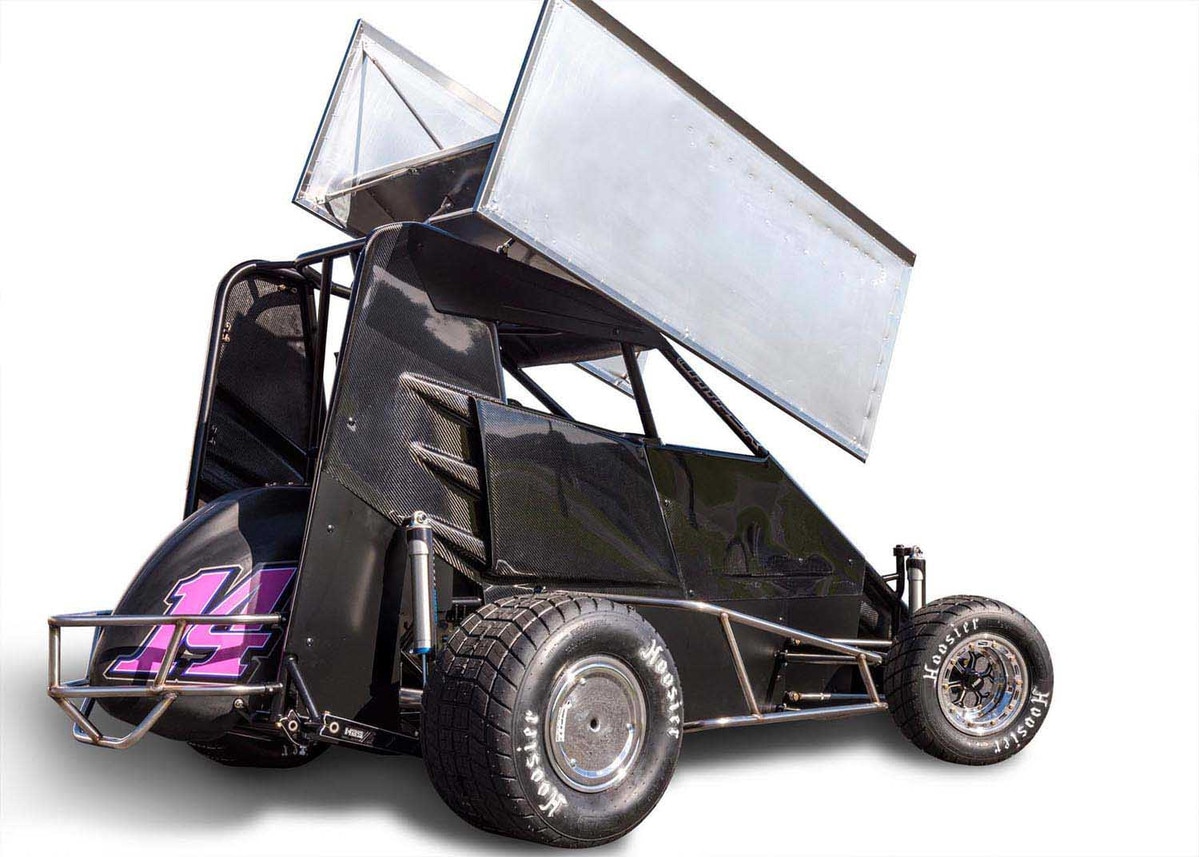

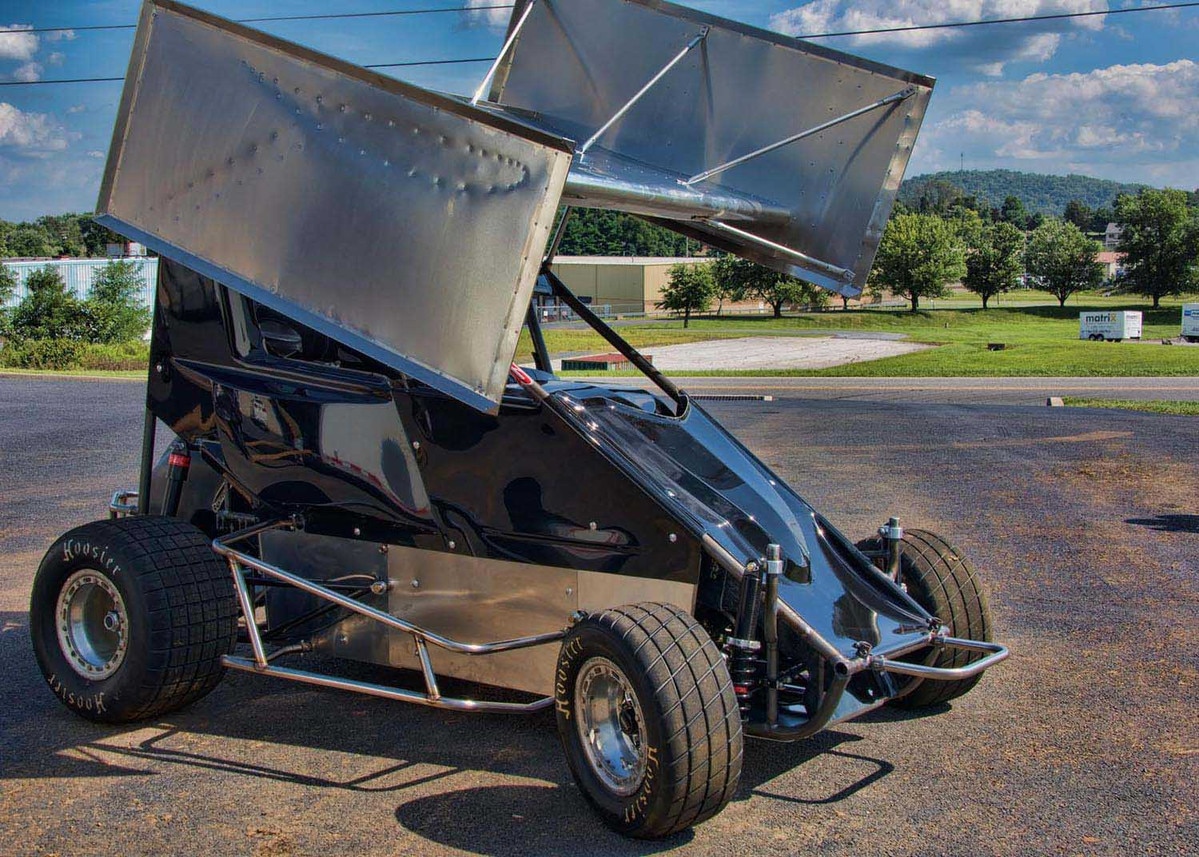

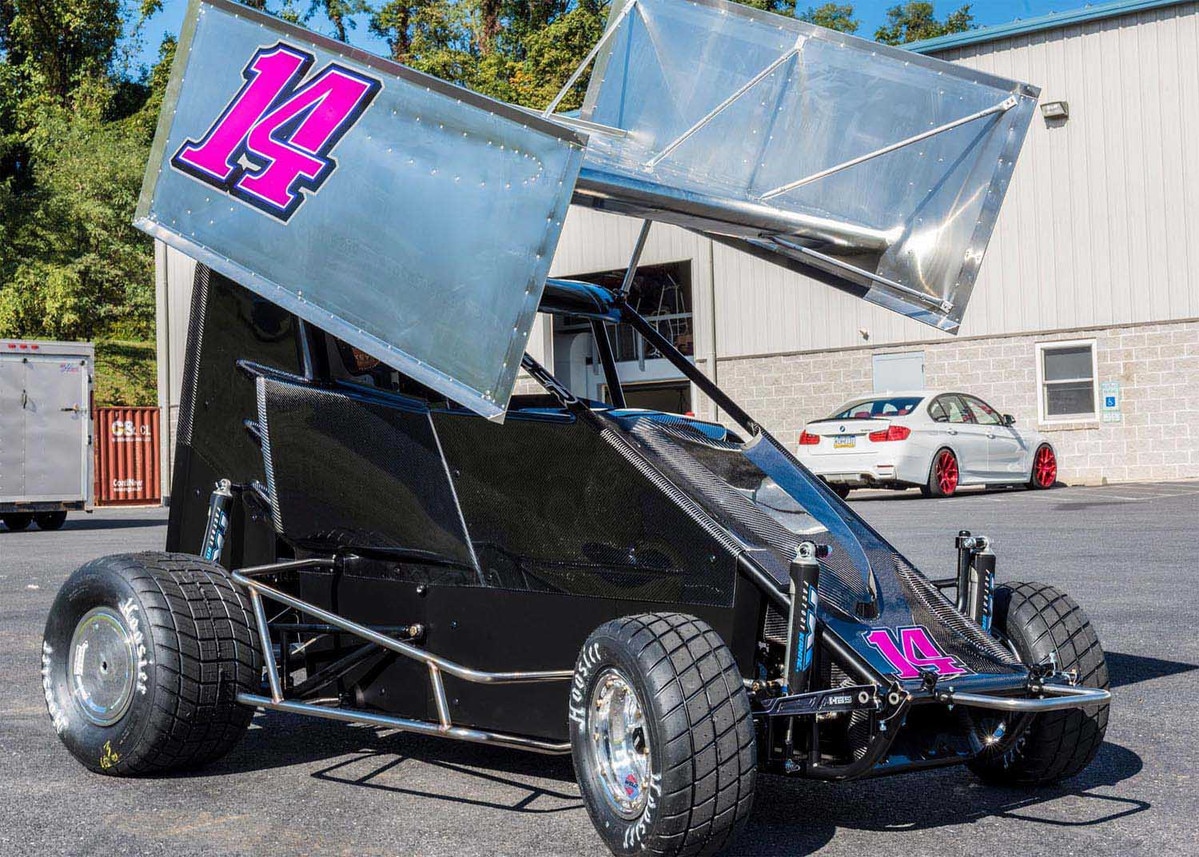

- The above pictures do not reflect the new arm guards and cage panels, the new panels are included in this kit
- Hyper's original rubber bushing engine mount designed to reduce the harsh vibrations produced by the 270cc single cylinder two stroke design.
- 5-piece Aero hood, right and left fiberglass arm guards, fiberglass radiator shroud, sun visor, body panels, firewall, and belly pans<
- Fuel forward wet tank tail
- Stainless steel bumpers, nerf, and injector protector bar
- 1-3/4" x 51" long Splined rear axle assembly with HBS wheel centers
- Complete 40.5" long x 1-3/4" diameter front axle assembly with HBS wheel centers, threaded dust caps, tapered roller bearings, powder coated front axle, and deluxe spindles
- Complete torsion rear, coil over front suspension package
- Adjustable pedal assembly with throttle cable
- Steering system featuring adjustable tilt steering includes: Rack and pinion steering with universal joints, splined quick release HBS hub with clamp assembly, collapsible steering shaft and 15" aluminum steering wheel
- Hooped rear bumper
- Front mount radiator assembly with fittings and cap
- Wilwood master cylinder and 2 piston Wilwood brake caliper with steel braided brake line
- Multi point Jacob’s ladder and front panhard bar with adjustable clamp
- Simpson 5-point harness
- Aluminum swaged radius rods with Black 4130 Rod ends
- Chromoly wishbones
- Aluminum panel fasteners
- Hardware bolt kit
- 270 shifter assembly
