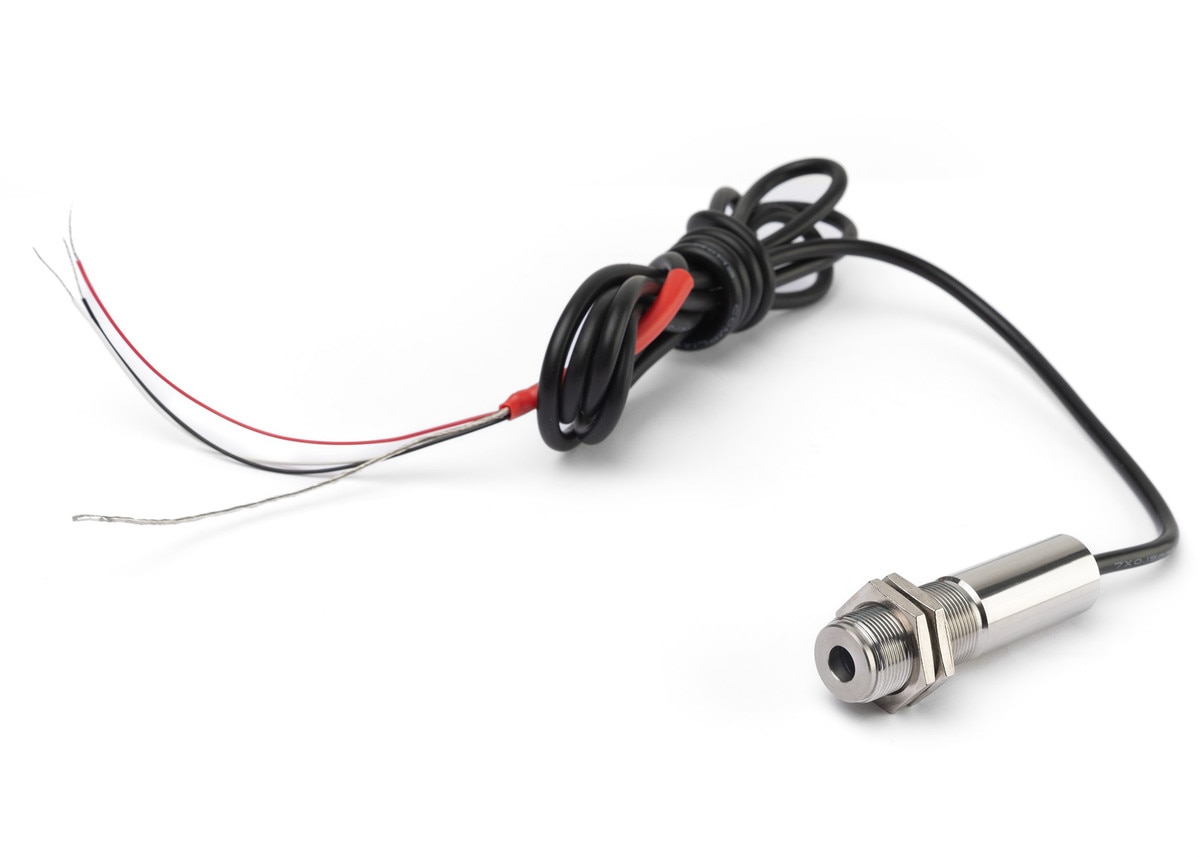

Infrared Tire and Track Temperature Sensor

Used to record track surface temperature or tire temperature. It also can be used to measure brake temperature.

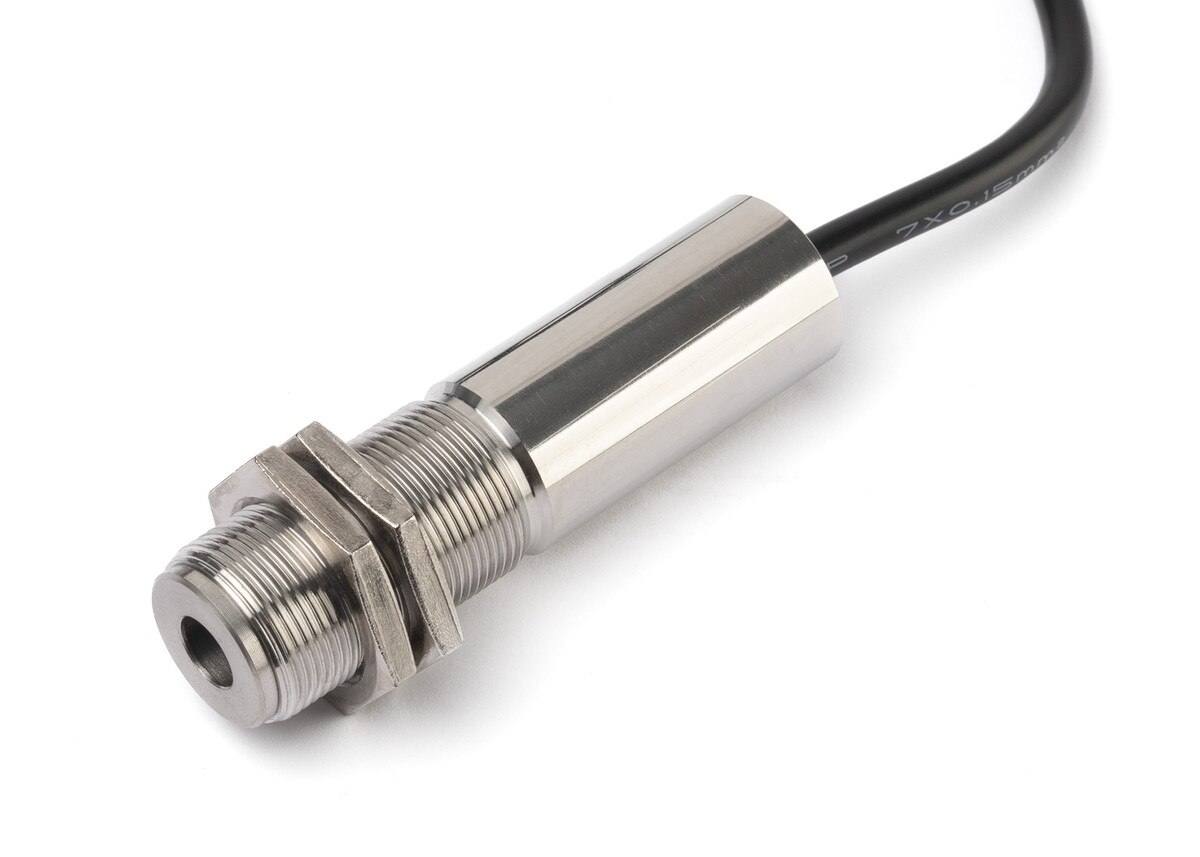

• M18 Infrared Temperature Sensor
• Product size (Diameter): M18*1mm

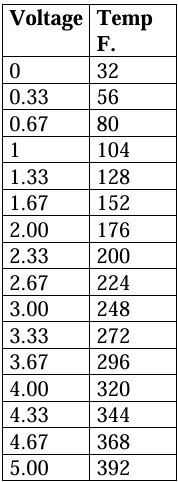

• Output signal: 0-5V
• Sensor length: 68mm
• Measuring temperature: 32-392F (0-200C)
• Supply voltage: DC12V
• Response time: 240ms
• Accurac: ±1% or ±1℃
• Detect distance: 2 feet (Max: within 1000mm)
• Connection: 2 meter cable leads
• Includes bracket

Wiring:

• Red: Supply Voltage, 6-24VDC
• Black: Ground, Clean Sensor Ground
• White: Signal, 0-5V
• Clear: Shielded Cable, Chassis Ground/Optional
