Shock Travel sensor, 6" x 1/2"

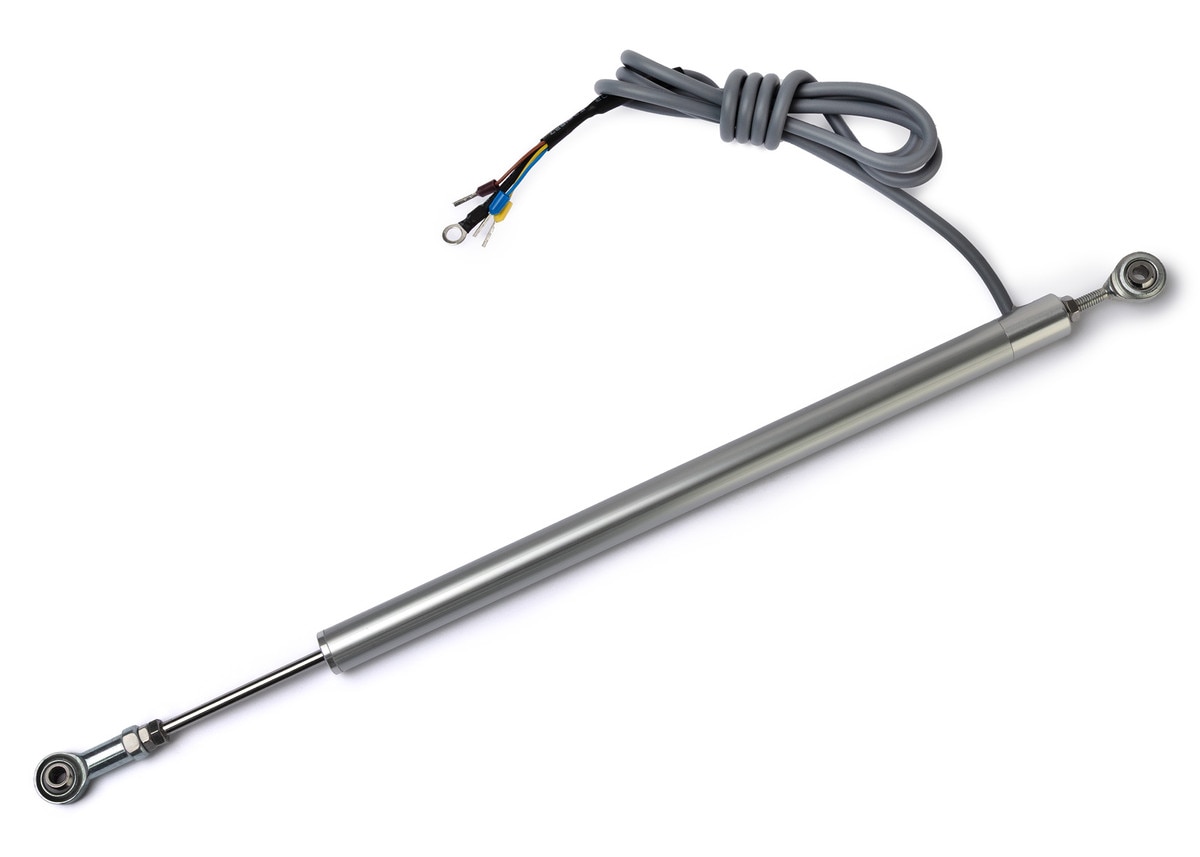

6" Shock travel sensor.

• Perfect for shock position and deriving shock velocity.
• 1/2" Diameter, 6" Stroke.
• Overall length at full compression 11" Long.
• Overall length at full extension 17" Long.
• Sensor outputs 0-5V analog signal.
• Compatible with all major dataloggers including FuelTech.

Brown = 5V Power Circuit (From ECU or data logger.) Blue = 0V Ground (To ECU sensor ground/data logger sensor ground Yellow = Signal Wire (Wired to input channel) Black = Shielded Ground (If you are not using a shield, connect ring terminal to chassis or cut off and heat shrink back.)

Calibration: After installing your shock travel sensor, you will need to set up your data acquisition device. Every system is different however; the basic configuration is common. For systems that already have shock sensors preprogrammed in a drop down, select the sensor with the same travel. To setup your shock travel sensor to show +/- inches of travel calibrate as 0 volts = 0 inches and 5 volts = 6".

You will want to note what your static ride height is in the data acquisition unit before racing so that you can see how much your travel is and where the car is up on that corner vs down. This will reveal some very intersting information!
