Midget/Lightning Sprint Front Axle Assembly

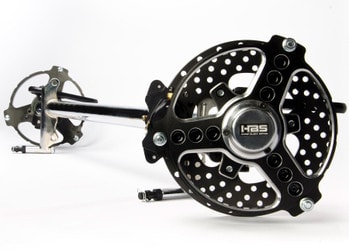

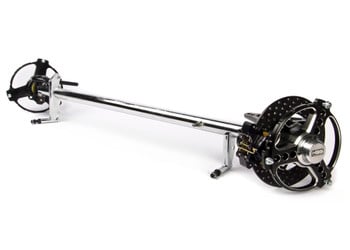

Features 13" 3-spoke wheel hubs, heavy duty angular contact bearings with seal on back and sealed dust cap. 1-3/4" diameter 4130 powder coated black front axle, steel steering rod (not shown in picture), and a left front brake assembly.

Includes:
017-105 Hyper Lightning Sprint & Midget Front Axle, Black (1)
017-150 Midget/Lightning Sprint Spindle (2)
017-160 Midget/Lightning Sprint Kingpin, Steel (2)
017-165 Kingpin Cap For 017-160 (2)
017-167 Kingpin Bearing and Race Kit for Midget/Lightning Sprint (2)
031-500 Chromoly Tie Rod 41.5" for Midget (1)
167-100 Midget/Lightning Sprint Single Steering Arm (2)
167-110 Midget Steering Arm Bottom (1)
257-105 13" Tri-Bolt Front Hub for Midget/Lightning Sprint (1)
257-100 13" Tri-Bolt Front Hub w/ Left Front Brake Mount (1)
36-100 Wilwood Dynalite Single Brake Caliper (1)
36-301 Wilwood Soft Brake Pads Q Aluminum Rotor (1)
367-150 Aluminum Front Brake Rotor (1)
367-155 Left Front Caliper Mount (1)
41-982203 1/8" NPT to 3AN Elbow Fitting
971-06-24-1.00 3/8-24 x 1" HHCS (2) Brake Caliper
971-07-20-1.50 7/16-20 x 1-1/2 HHCS (2) Right Front Steering Arm
971-08-20-1.50 1/2-20X1-1/2 HHCS (6) Radius Rods & Steering Rod
971-08-20-4.00 1/2-20X4"HHCS (2) Shock Mount
973-07-20-1.50 7/16-20 x 1.5" FCHS (2) Left Front Steering Arm
976-08-20 HALF 1/2-20 Nyloc Half Nut (5)

This axle is designed for a coil over front end, but we can make your axle if you supply us with a drawing. Use the Custom Axle Spec Sheet by clicking on the PDF icon.

 Custom Axle Spec Sheet
