Jacob's Ladder Assembly, Steel Pins, Junior Sprint

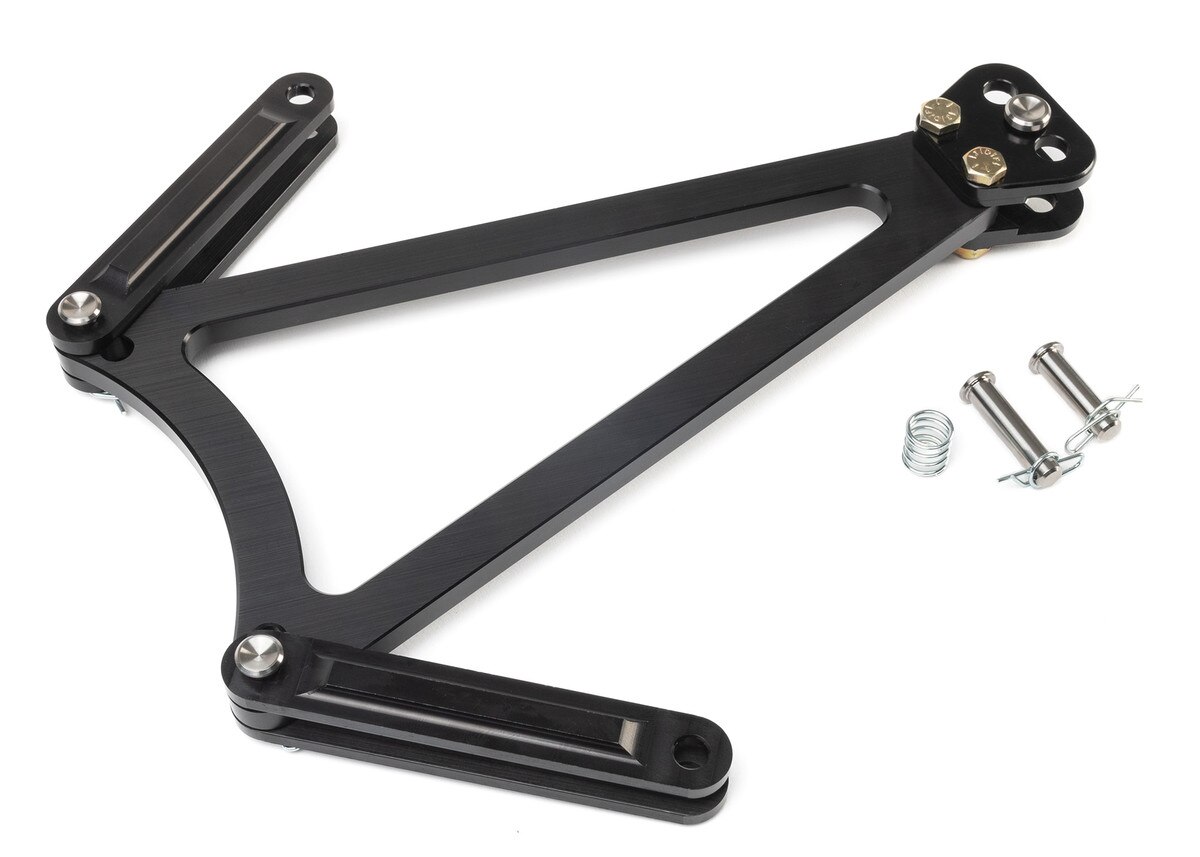

Picture shows the Ti pins shown in 04-100. This kit includes the steel pins.

Includes:

• 041-620 Jacob's Ladder Strap, 4" (4)
• 041-603 Jacob's Ladder Paddle (1)
• 04-608 Pin Set for Jacobs Ladder (1)
• 04-604-2 3 Point Jacob's End Tab (2)
• 971-04-28-1.25 1/4-28 x 1-1/4 Long HHCS (2)
• 976-04-28 HALF 1/4-28 Nylock Half Nut (2)

Includes all the pins you need to attach this to the chassis.

This Jacob's Ladder is for an 8" spread between the strap pins on the frame and 10" from the strap location on the paddle to the rod end center of the bearing carrier. The distance between the strap holes in the paddle are 4" & 4-¾".
