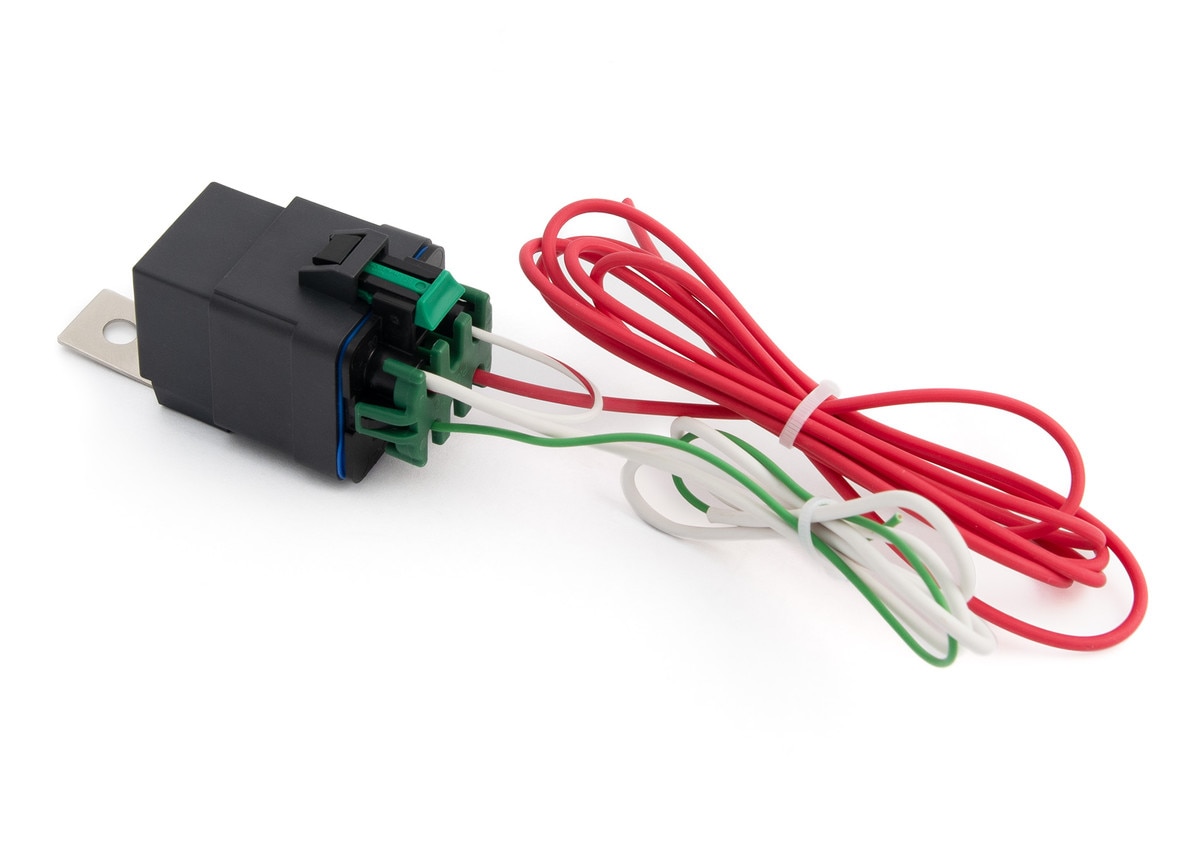

Fan Relay Kit, Universal

Use this relay to have the ECU turn the fan on and off as the water temperature reaches your predetermined temperature. The temperature setting is programmed into the ECU at the time it was flashed.

Green wire (trip wire): Pin into the ECU connector or crimp to the fan trip wire from the ECU

White wire: Attach to the (+) positive side of the fan.

Red wire: Attach to the (+) positive side of the battery.

Run a separate black wire (not included) from the (-) negative side of the battery to the (-) negative side of the fan connection.

Fan Relay Signal Wires in ECU’s

Yamaha R6 ’03-’05 - Pin 42, (OEM wire color - green/yellow)

Yamaha R6 ’08-’16 - Pin 5, left connector (OEM wire color - blue/yellow)

Yamaha R6 ’17 & ’Up - Pin 20, right connector (OEM wire color - green/yellow)

Suzuki GSX-R ’08 & ’Up - Pin 6, left connector (OEM wire color - green/red)

Kawasaki ZX-6R ’05-’06 - Pin 6, left connector (OEM wire color - black/blue)

Kawasaki ZX-6R ’09-’12 - Pin 13, right connector (OEM wire color - black/blue)

Kawasaki ZX-6R ’13-’18 - Pin 17, left connector (OEM wire color - black/blue)

PE3 - Digital output 2 Pin 2, left connector (Hyper wire color-white)

Fuel Pump Relay Signal Wires in ECU’s

Yamaha R6 ’03-’05 - Pin 32 (OEM wire color - light green)

Yamaha R6 ’08-’16 - Pin 23, left connector (OEM wire color - blue/yellow)

Yamaha R6 ’17 & Up - Pin 30, right connector (OEM wire color - blue/white)

Suzuki GSX-R ’08 & Up - Pin 4, left connector (OEM wire color - yellow/black)

Kawasaki ZX-6R ’05-’06 - Pin 4, left connector (OEM wire color - brown/yellow)

Kawasaki ZX-6R ’09-’12 - Pin 12, right connector (OEM wire color - brown/yellow)

Kawasaki ZX-6R ’13-’18 - Pin 7, right connector (OEM wire color - brown/yellow)

PE3 - Digital output 1 Pin 11, left connector (Hyper wire color - light green)
