Custom Splined Rear Axle

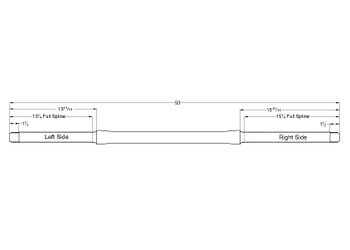

This is for a custom Splined rear axle. It can be either 2" or 1-¾", same price for either size. Please email a drawing to mike@hyperracing.com of what you would like. Maximum allowed length is 57".

You must order two axles to get this price. Otherwise it is an additional $100. Please allow 4-8 weeks for the axle to be made and black anodized. If you don't want anodizing, delivery will be 1 week sooner.

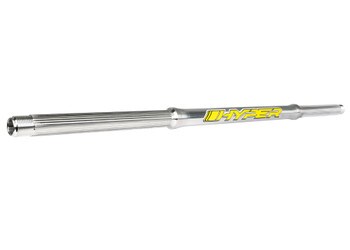

CNC machined splined rear axle is made from 7075 T-6 Aluminum with 27 splines. Super strong.

This axle has a radiused transition into the shoulder. 055-0751 3/4" Radiused Axle Spacer or 055-1001 1” Radiused Axle Spacer for the 1-¾" axle and use 061-0751 for the 2" rear Axle.



These Splined Rear Axles fits 600cc Sprints, Lightning Sprints, Micro/Mini Sprints.
