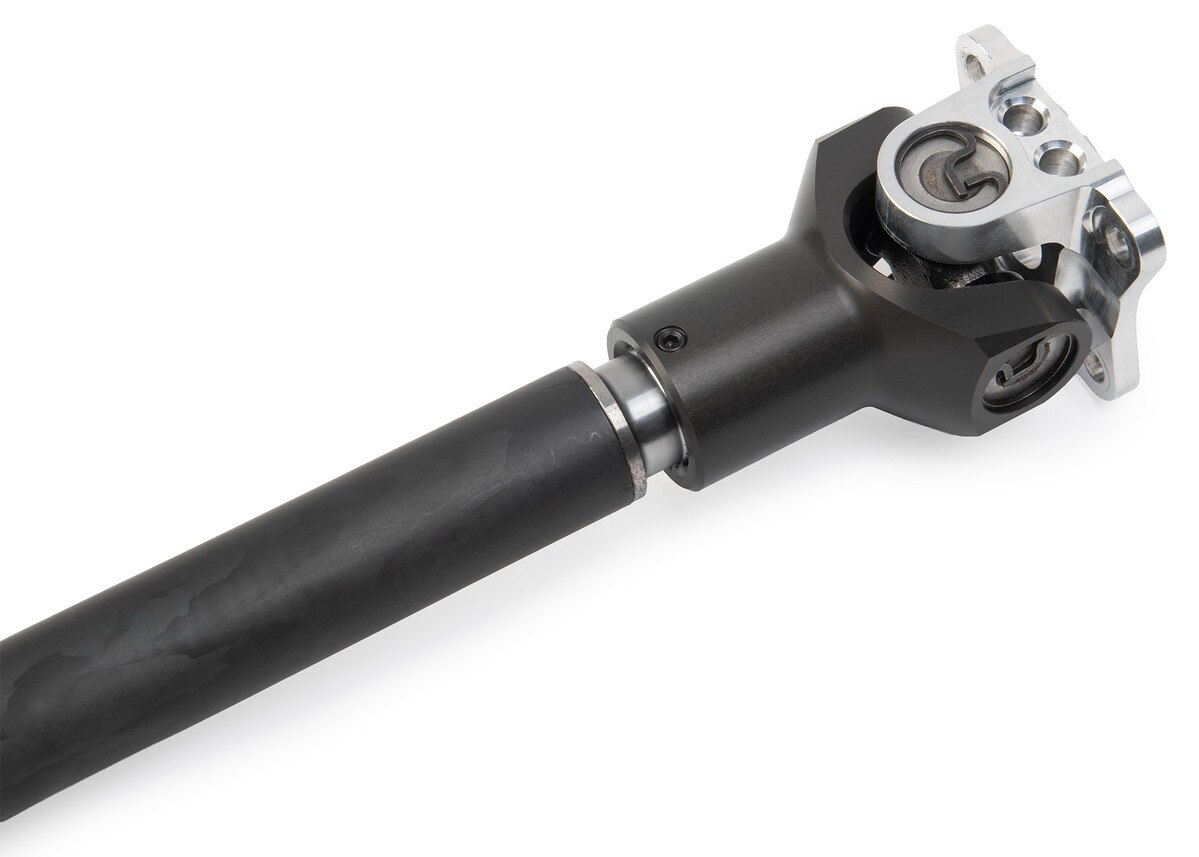

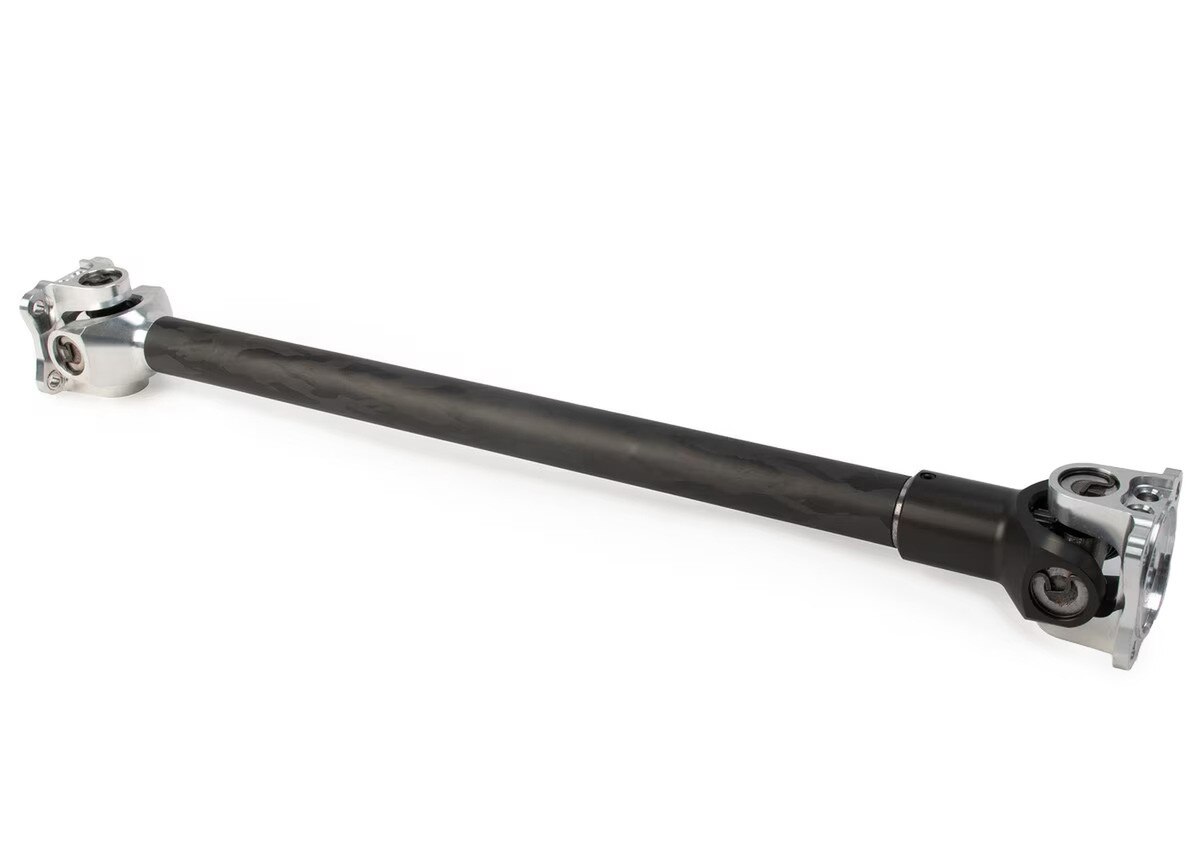

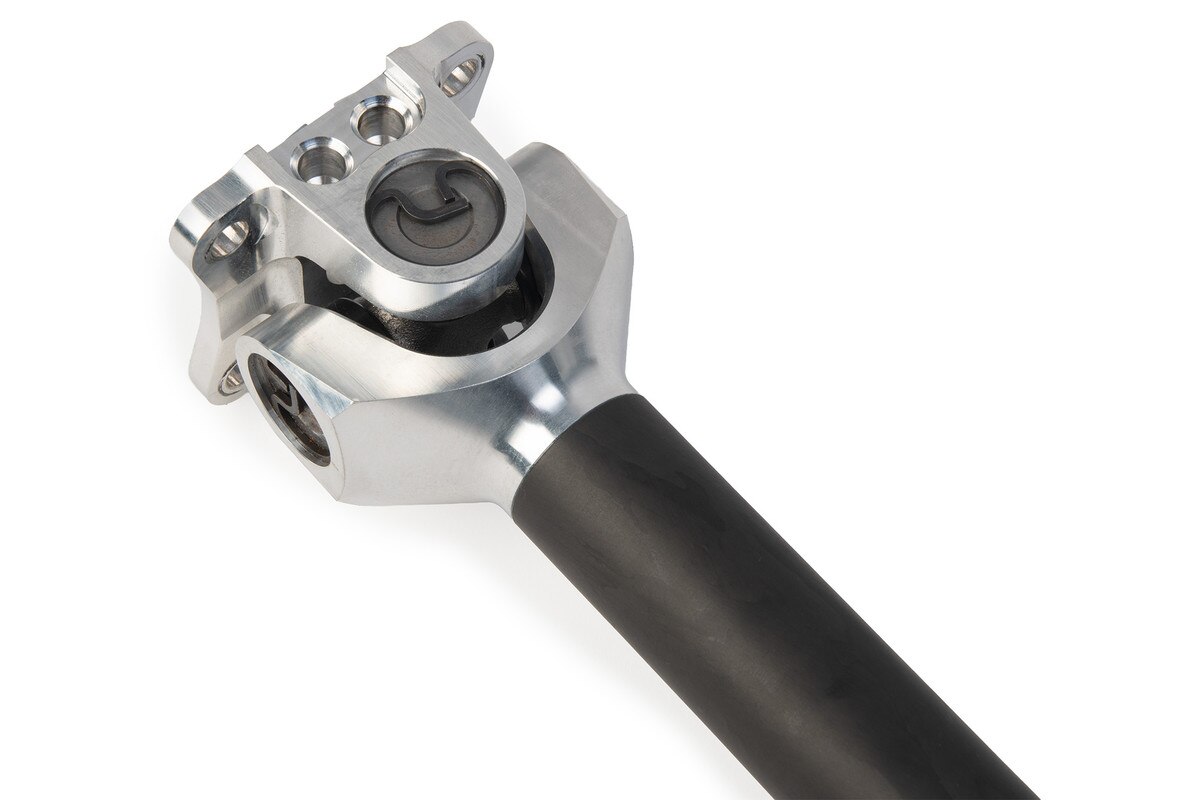

Carbon Fiber TQ Drive Shaft

Lightweight, carbon fiber TQ Drive Shaft Adapter for the output shaft of the ’09 & Up Suzuki GSXR 750.

These shafts are made to order. Please look at the .pdf document below and provide us with the flange to flange measurement. Please allow some time for the shaft to be made before shipment. Typical delivery time is 3-5 weeks.

The slip yoke has a total travel range of .875", with roughly .300" of compressive travel and .575" of extension.

The maximum angle is 10 degrees.

2.75" bolt pattern with a 2.25" male pilot.

Drive Shaft Measurements
