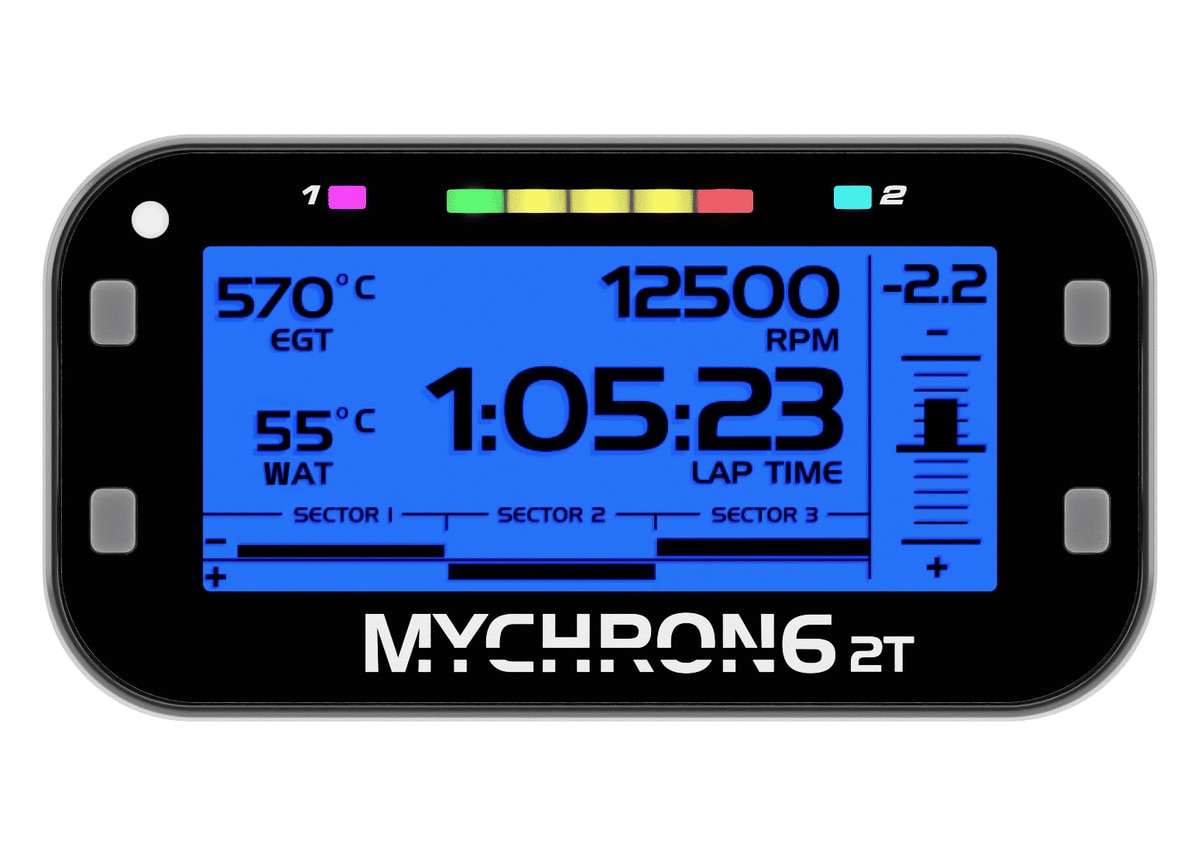

Aim MyChron 6 2T

The MyChron 6 2T, manages two temperature values acquired from exhaust gas, cylinder head or water temperature sensors. The unit we sell comes with, 100 cm USB 2.0 A-Type C-Type cable, RPM wire, 1 10mm water temp sensor with split extension for the second sensor (second sensor sold separately, 604-202 exhaust temp sensor), Race Studio 3 software downloadable for free from the AiM website.

The MyChron 6 2T includes the integration of increasingly advanced technologies, such as high-precision GPS, 6-Axis IMU (accelerometer), Bluetooth connectivity, a second CAN port for additional sensors, 4 GB memory upgrade, and a long-lasting battery. This all transforms the new MyChron6 into a powerful data analysis center, capable of providing extremely accurate and detailed information from these new sources.

• Ready for future mobile app integration with iPhone and Android.
• Waterproof
• Larger 4GB memory for more data logging (3,000 hours)

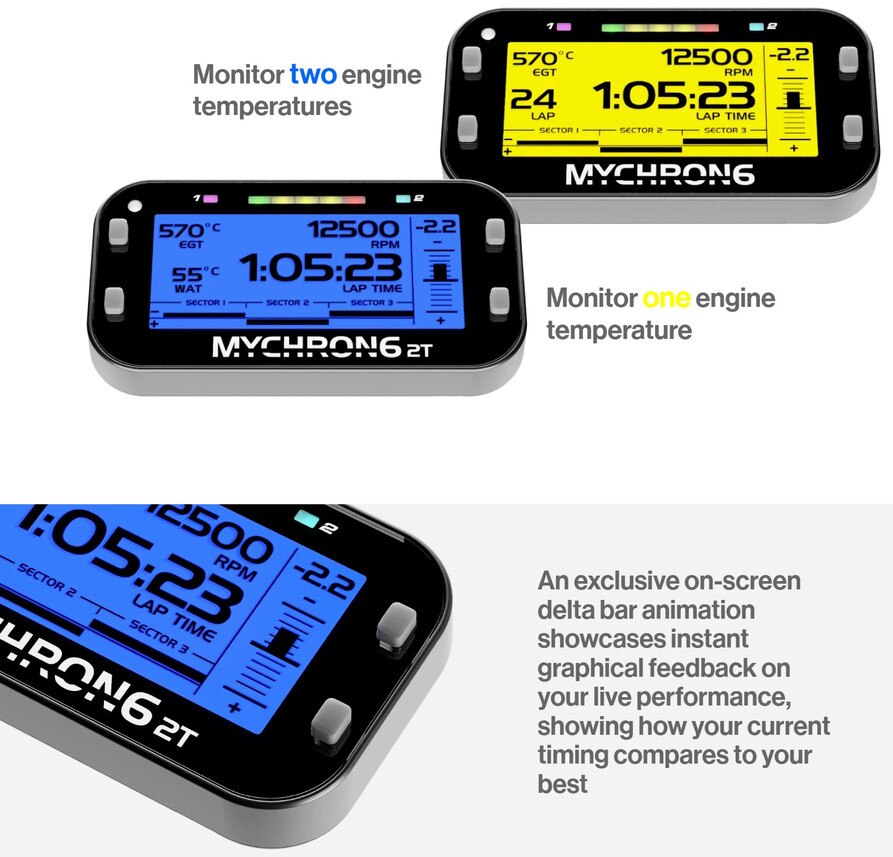

• Delta Bar provides, on-screen graphical feedback, comparing your current times to your best time
• Data transfer is seamless via built-in Wi-Fi or the USB-C connection, making it quick and easy to review and manage your data after every session.
• Configurable display pages
• Very accurate 25 Hz GPS tracking
• 8 configurable RGB backlights
• 2 configurable Alarm LEDs
• Integrated GPS
• 5 RGB LEDs configure for each gear
• Powered by a lithium battery providing up to 20 hours of use. Recharge using a USB Type C cable which is included in the box.
• Utilizes a “6-axis accelerometer”, a sensor that measures motion along 6 degrees of freedom, combining a 3-axis accelerometer with a 3-axis gyroscope, allowing it to detect both linear acceleration (movement in a straight line) and angular velocity (rotation around an axis) simultaneously; it measures both how fast something is moving and how it's rotating in 3D space.

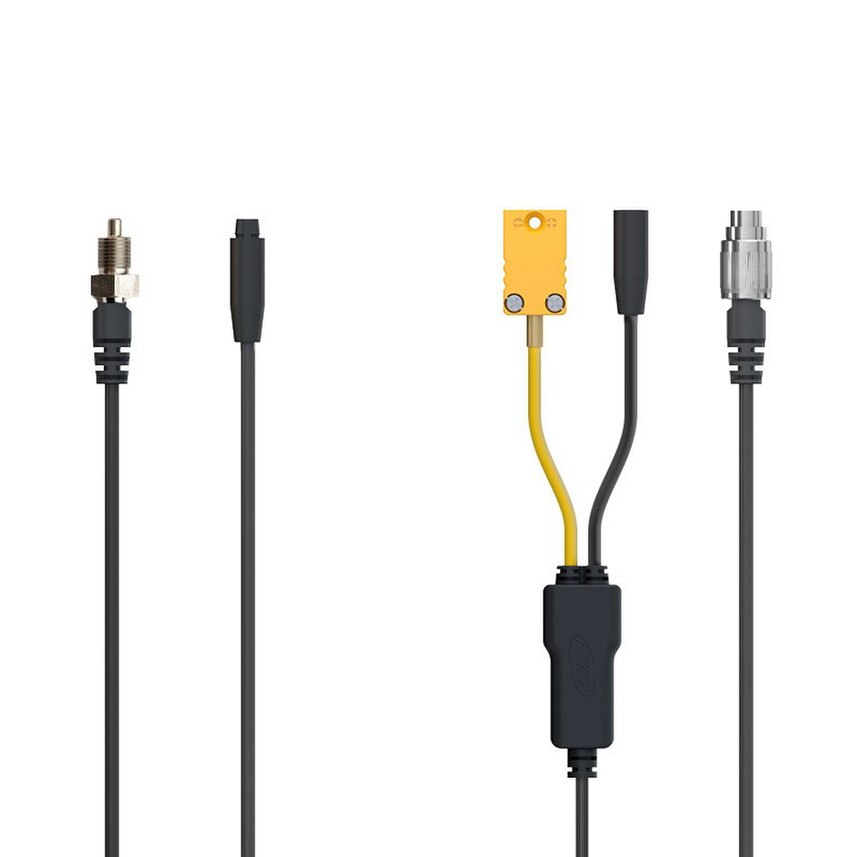

In The Box

• Battery Charger with Cable
• RPM Cable
• M10 Water Temperature Sensor
• Choice of temperature sensors
• Aim Sticker

Technical

• Use With Race Studio 3
• Multifunctional LEDs: 5 RGB LEDs
• Alarm LEDs: 2 configurable
• Temperature inputs: 2
• Inertial platform: 6 axis, frequency 50 Hz
• Digital outputs: 1, programmable high/low activation
• Body: PA6 GS30%
• Battery: Rechargeable Lithium
• Memory: 4 GB
• Wifi: Yes
• Bluetooth: Yes
• Resolution: 320 x 136 pixels
