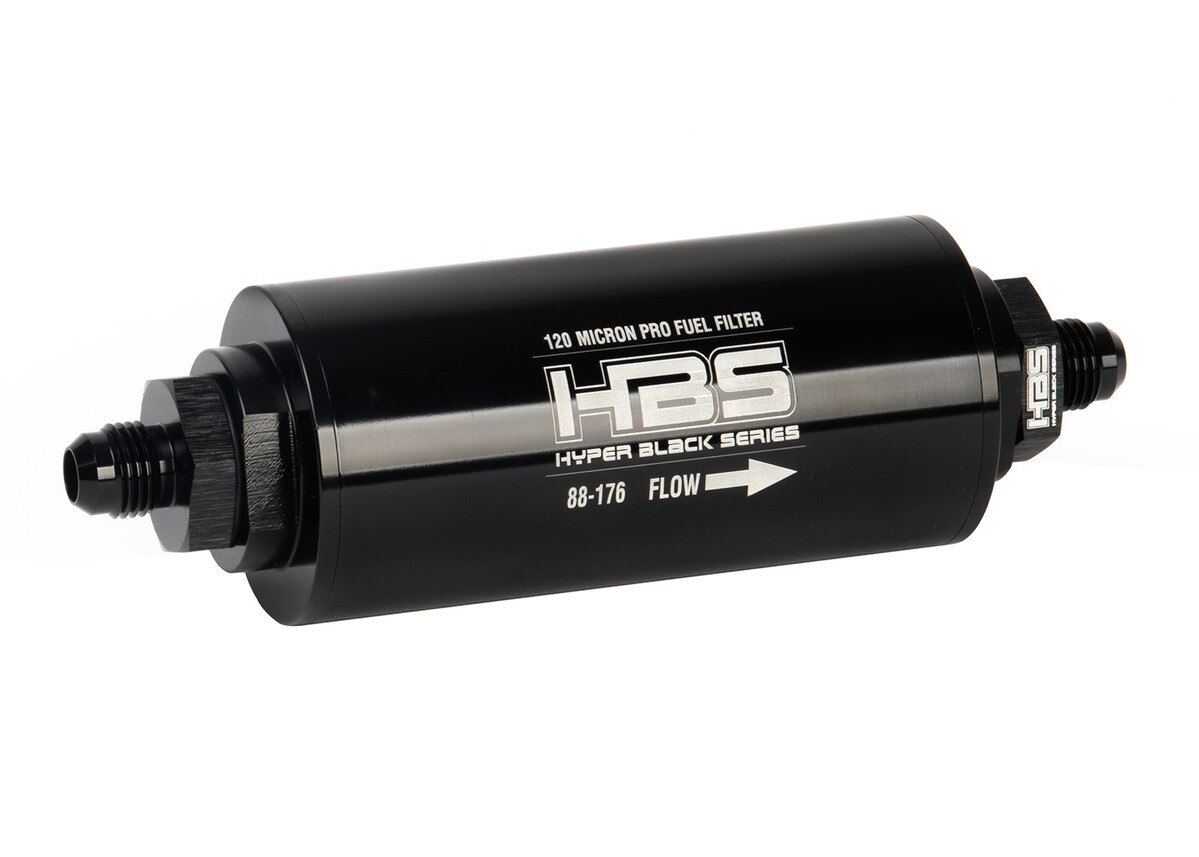

120 Micron Short Fuel Filter -8AN

Compatible with gasoline. See special notes to use with Methanol (88-1771 is recommended to use with methanol)

Now includes new stainless steel element that has no glue, epoxy, solder, or weld.

Any glue, epoxy, weld, or solder will eventually fail, this element is only mechanically assembled so it will last a long, long time.

he HBS Short Pro Fuel Filter with 120 Micron Filter Element is recommended for electronic fuel injection to be used before the fuel pump. Aluminum housing with 8AN inlet and outlet. 120 micron stainless steel pleated filter element is removable for cleaning. This is an exclusive Hyper Racing product.

HBS Short Pro Filter features:

• Removable 8AN fittings that can be replaced if damaged or replaced with a -6 or -10AN fittings if needed.
• Stainless steel pleated element with an o-ring seal internally to insure no dirt slips through.
• Black anodized throughout to help stop corrosion
• Shorter length for times when there isn't room for our longer filter
• Epoxy Glue to secure Screen to end caps on the element, perfect for gasoline.

This filter should be cleaned using our Ultrasonic Cleaner 80-675. Compressed air and solvent will not clean the element properly.

To help this filter element last if used with methanal, do not allow it to set in methanal alcohol for more than 1 week. Turn the fuel pump on every 3 days to keep the fuel circulating and oxygen out of the system. For best results when using methanal, use the full stainless steel version of this, 88-1771.

2" diameter and 4-1/4" long.
