Chassis Squaring Kit, 13" Wheel

SKU 80-627
$269.00
(0)No Reviews yet

Brief Description

Chassis Squaring Kit, 13" Wheel for Lighting Sprints

Details

This Chassis Squaring Kit for 13" Wheels is the one to purchase if you already have the 80-616 Set-Up Blocks. For use with 13" wheels on Lightning Sprints and Midgets. Fits 5-bolt and 3-bolt front hubs.

This kit will very accurately and easily square the axles, set toe, measure wheel base, and block the axle to set turns.

For use with 13" wheels on Lightning Sprints and Midgets. We also sell an equally beautiful and functional version of this product for the 10" wheels (80-6261).

Click on the PDF Information link for detailed instructions and be sure to view the video.

What sets this system apart is the ability to square the axles with the car at simulated ride heights. As the car tilts and pitches, the axles change their position, these blocks and plates will allow you to simulate that so you can square the axles in the same position the car is when it is on the track.

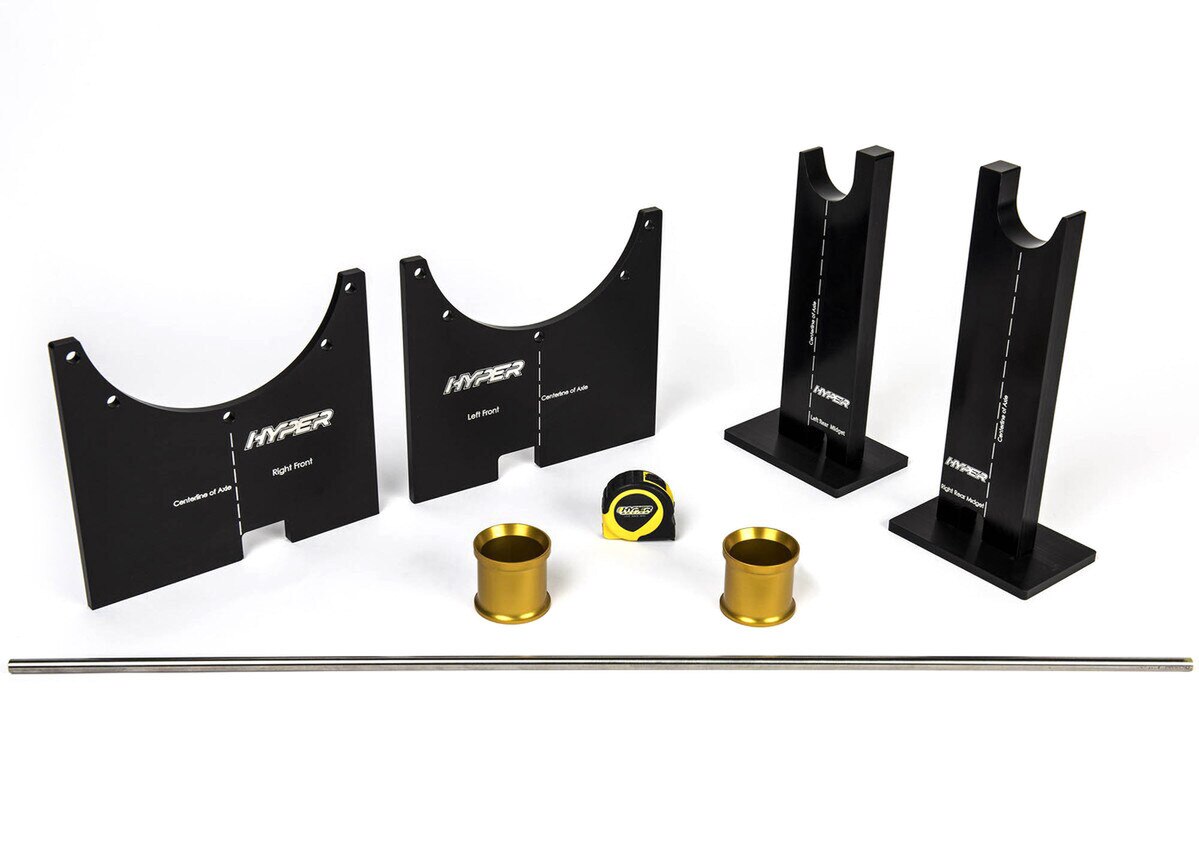

The front plates bolt onto the front hubs, the rear blocks (right side is higher to simulate stagger) hold the rear axle on the gold spacers that take the place of the rear wheel centers. The adjustable setup blocks are set to different heights to simulate wedge and pitch, they go between the bottom frame rail and the ground.

A special machined rod slides perfectly into the hollow rear torsion bar to provide an accurate and easy line to measure off of to square the rear axle. Or on the Midgets, you can square the rear axle off of the engine plates.

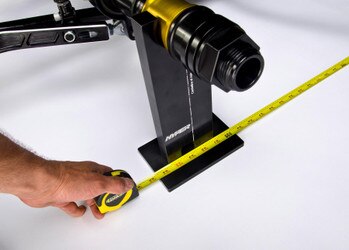

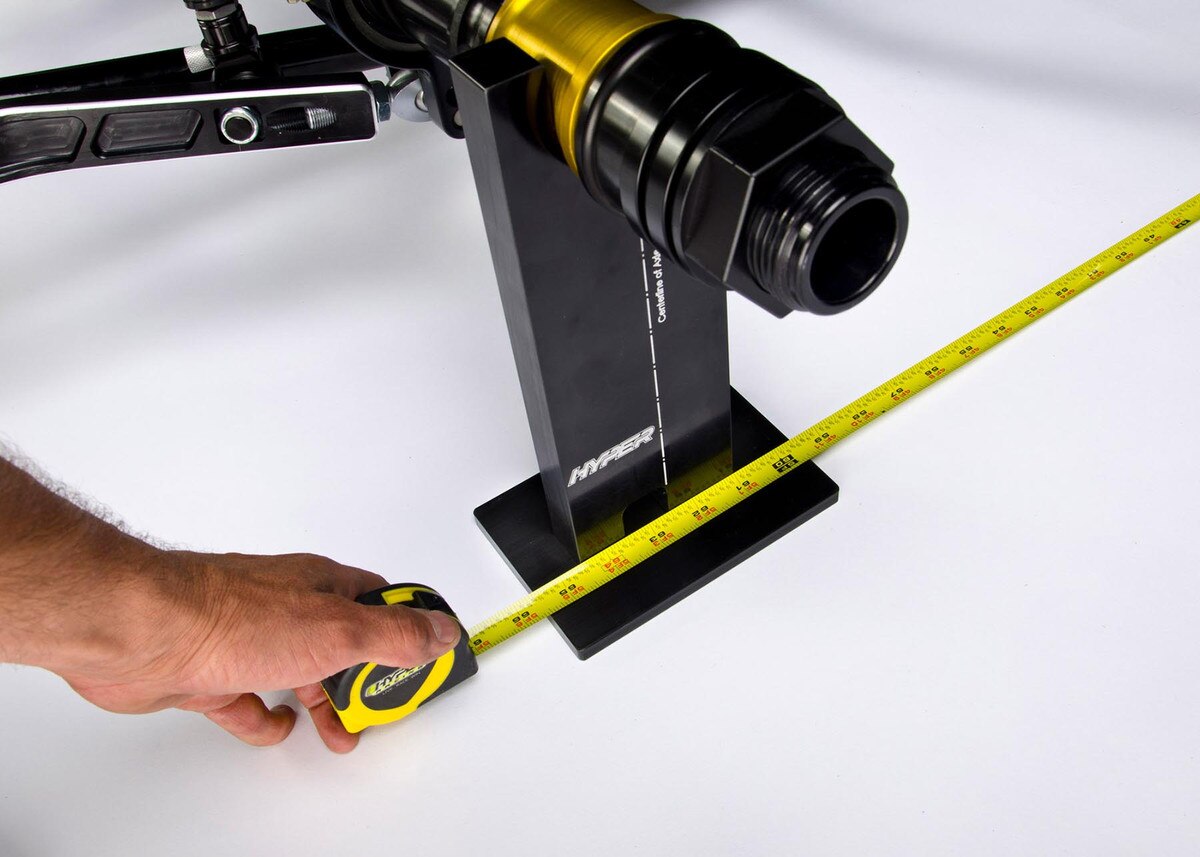

Front plates and rear squaring blocks have a slot machined in exactly locating the center of the axles. Just hook the included 120" tape measure on the slot and measure to the other axle to very accurately determine the wheelbase. No more calculators!

The front plates also provide an easy way to measure toe. Simply hook the tape measure onto the backside of the one plate and measure over to the backside of the opposite plate. Repeat on the front side and the difference is the toe. All done simply and accurately with one person. Can I get an Amen!
