Spring Dyno Service

Hyper Racing’s Spring Dyno Service brings state of the art technology to provide you all the information you need about your suspension springs. Springs are never what their stated rating is. Know what you have!

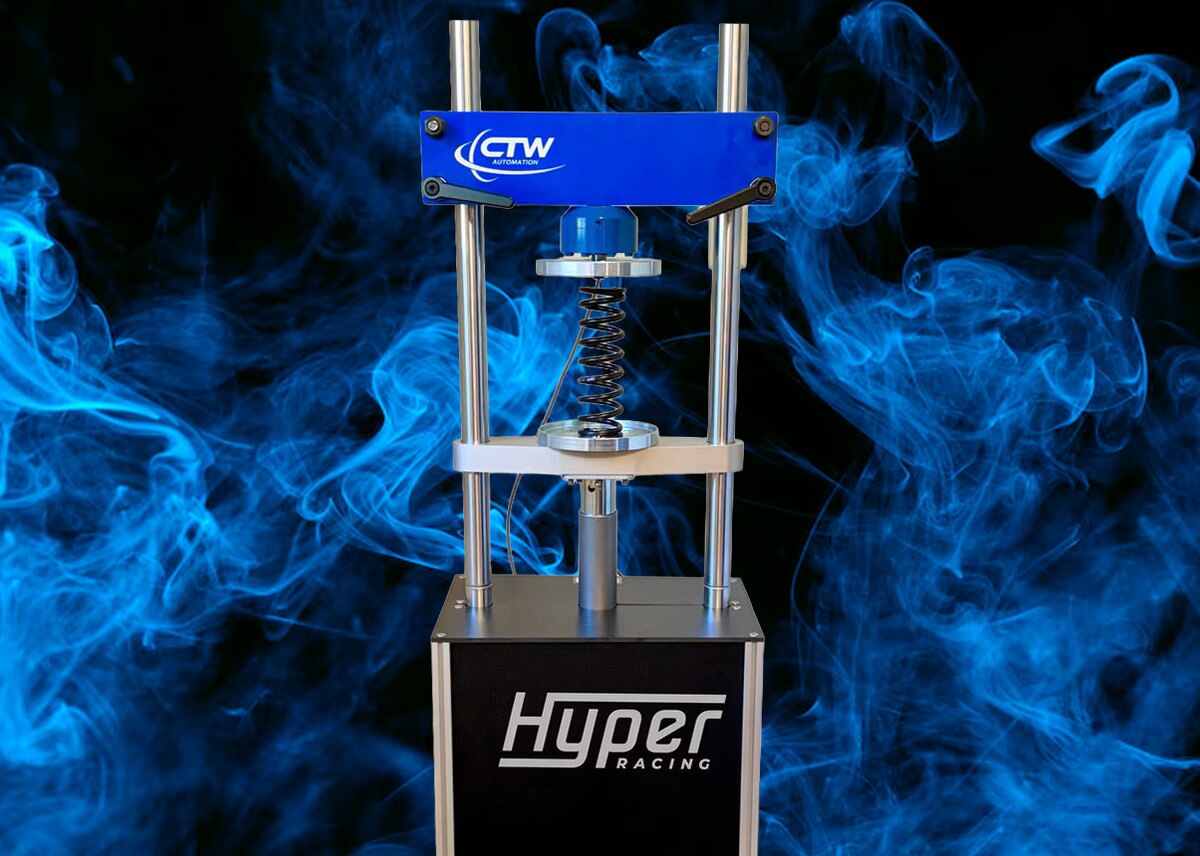

Our ⁠CTW Automation SR-17 Spring Rater is a specialized, software-driven machine designed to measure spring rate, hysteresis, and force curves for coil, elastomer, and bump rubber springs. It uses constant-velocity input for precise data collection, allowing users to analyze linear, progressive, or digressive behavior in both compression and extension.

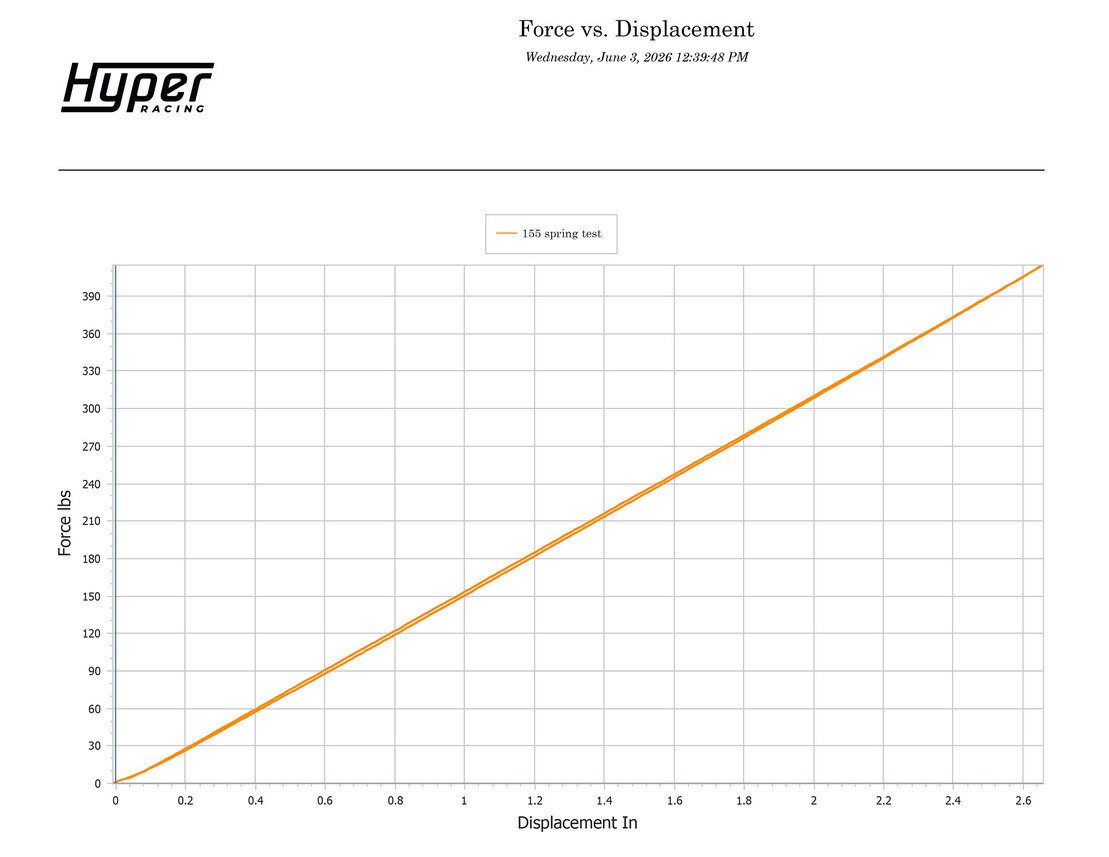

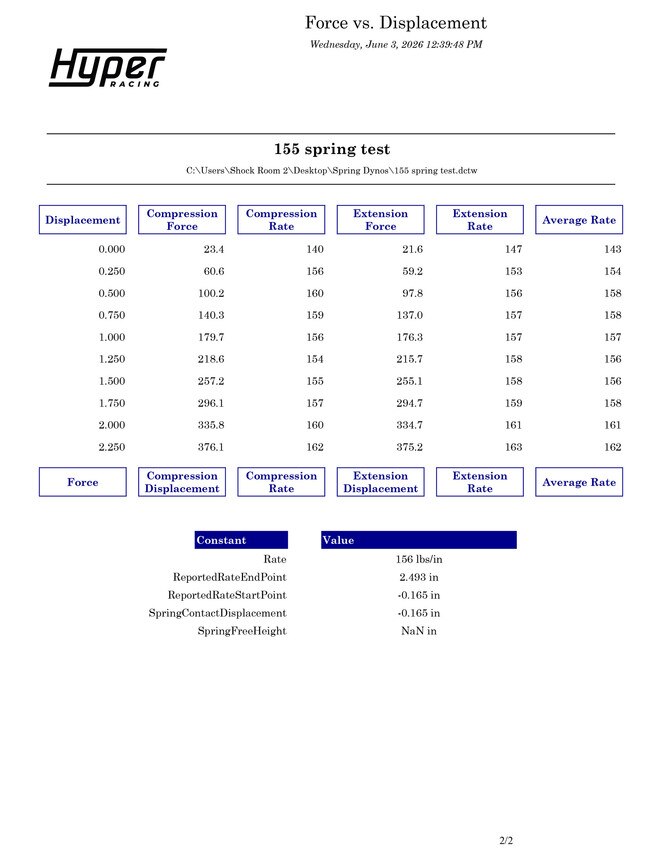

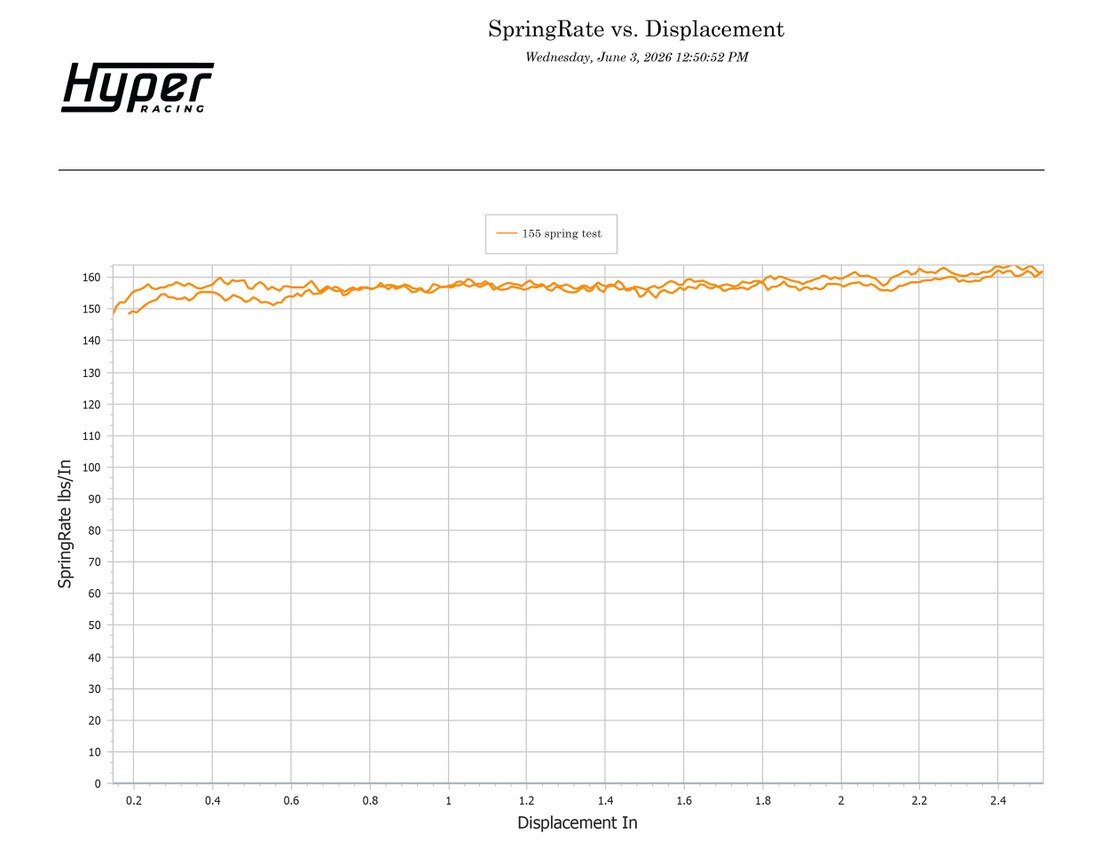

You can see on the images, one of the graphs we can reproduce is the springs rate as it changes every 1/100", its called spring rate vs displacement.

We can dyno pretty much any length, diameter and rate spring.
