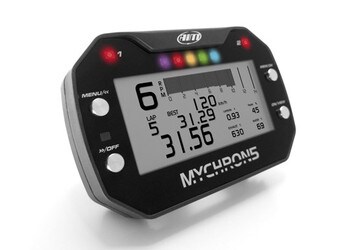

MyChron 5 -2T for 600's, 270's, and Quarter Midgets

SKU 604-099
(0)No Reviews yet

Temporarily Out of Stock

Brief Description

MyChron 5 -2T for 600's, 270's, and Quarter Midgets


RPM Read Out for 600cc and Other Motorcycle Engines
To acquire the RPM read out from a motorcycle engine, simply solder or use a wire tap to connect the black RPM wire of the Mychron to the signal wire of the cylinder #1 ignition coil. The signal wire is the wire that is a different color on each coil. The Mychron 5 or 4 will not be able to read the low voltage rpm signal generated by the tach wire of the ECU.

GPS Included!
No more infrared beacons.The MyChron5 2T (2 temperature display) completely changes the rules of the game because its included internal GPS samples lap and split times as well as speed, position on track (track mapping) and acceleration, with precision and reliability that is simply not comparable to traditional tools and even with previous GPS systems.

Wireless Data Download through a Wi-Fi Connection
MyChron5 will allow you to download data wirelessly, using an easy and safe Wi-Fi connection: No more cables!. Connection is secure, so no fear of other viewing your data.

Includes Rechargeable Lithium Battery
Forget the expensive and short-lasting traditional 9V batteries: The MyChron5 rechargeable lithium battery lasts more than ten hours. Charge it with a USB charger and race all day. It can also be powered by an external 12V power source.

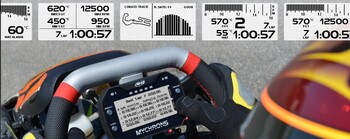

Create Your Own Screen Layout
Choose optimal layout for your data Lap and split times, best lap, RPM, gear number, track map and much more are shown in pre-configured pages: you will be able to choose the page layout you prefer to better monitor your data. At the end of your session, you can recall the summary of your three best laps: lap time, max/min RPM, speed and temperature right on the Mychon's screen. For your best lap, you will also see splits and best theoretical time.

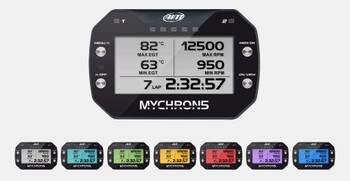

Clean Readability
To maximize readability of data, you need plenty of room. That is why MyChron5 features a wide 268x128 pixel graphical display. The screen can be backlited in one of the seven colors. The incorporated light sensor makes brightness and contrast ideal in all light conditions.

Compatibility with MyChron4 expansions and add-ons

In the Box

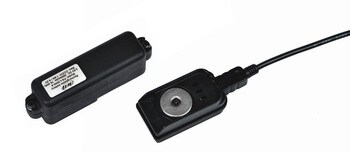

MyChron5, battery charger with cable, RPM cable, 2 temperature sensors (water and exhaust gas), CD Race Studio 3. Optic/magnetic receiver (if you don't want to use GPS).

Weight in Pounds
