Raychem Chassis Harness Kit, 4 Switch, Complete

Our Raychem/Deutsch/TXL Wire Chassis Harness provides extra safety, reliability, and eliminates many common problems like incorrect wire gauges that cause low battery voltage issues while under load and connection problem from inferior connectors.

***Important: Purchase the 408-4192 ECU Pigtail separately since this is different for each ECU make.***

Works with any manufacturer's chassis. Features upgraded Deutsch style connector, Raychem DR-25 covering, and TXL wire. The Raychem Chassis Harness outperforms all others in every metric.

It is dressed in Raychem shrink tubing which is hands down the best harness covering for motorsports applications. Raychem offers:

• Flexible for ease of assembly and component placement
• Flame retardant with an operating temperature range of -103°F to 302°F
• Abrasion resistant
• Stands up to the chemicals in fuel, hydraulic fluid, and oil.
• Meets MIL-I-23053/16 specifications.
• All connector locations are labeled.

The Deutsch style DT Connectors offer field proven reliability and rugged quality. They were designed for and used in aviation and military applications. These high-quality watertight sealed connectors are known for their ease of use. No more struggling at the track to try to get your connectors apart.

TXL (thin-wall cross-linked) Automotive Wire is a type of wire that is extremely durable, lightweight, impressively flexible, and resistant to high temperatures.

The relay box is for ECU controlled fuel pump and fan activation. Using the ECU to control the fuel pump is much safer than a manual switch since the fuel pump will shut off automatically when the engine stops to prevent fuel from pumping out any broken lines or fittings as soon as possible. It also allows data extraction from the ECU without the fuel pump running the entire time.

The fan relay will automatically turn the fan on and off preventing the engine from overheating or running too cool.

This kit is designed to use our EVO Fuel Injection Engine Harness. If you want to use a different engine harness, you will need the engine harness Deutsch DT Connector.

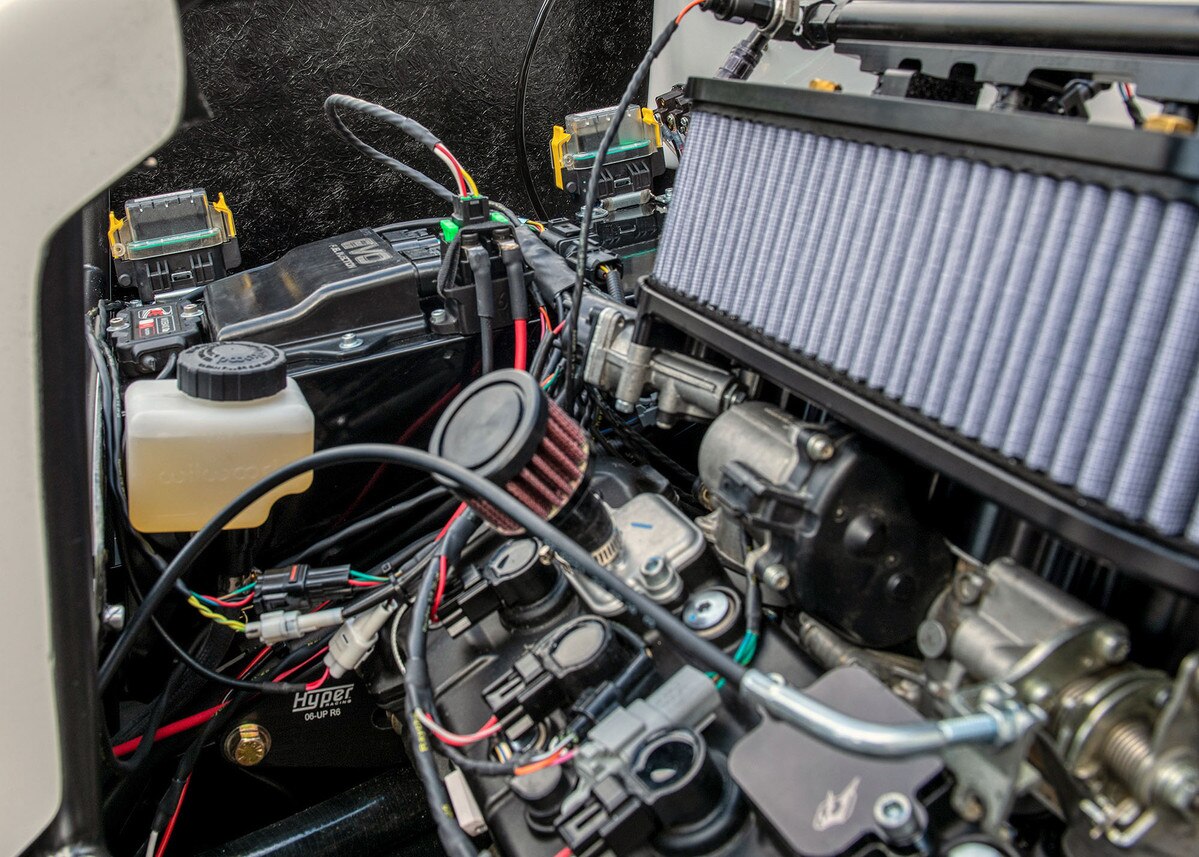

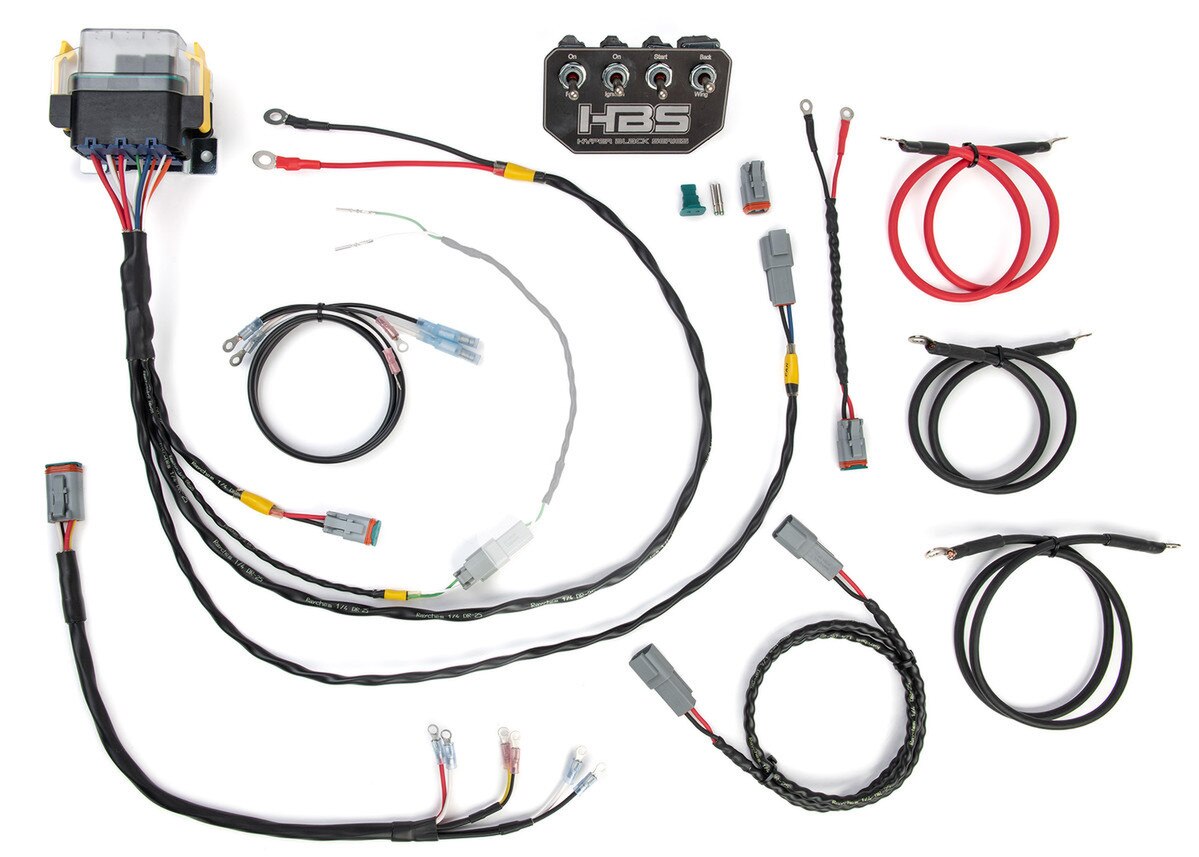

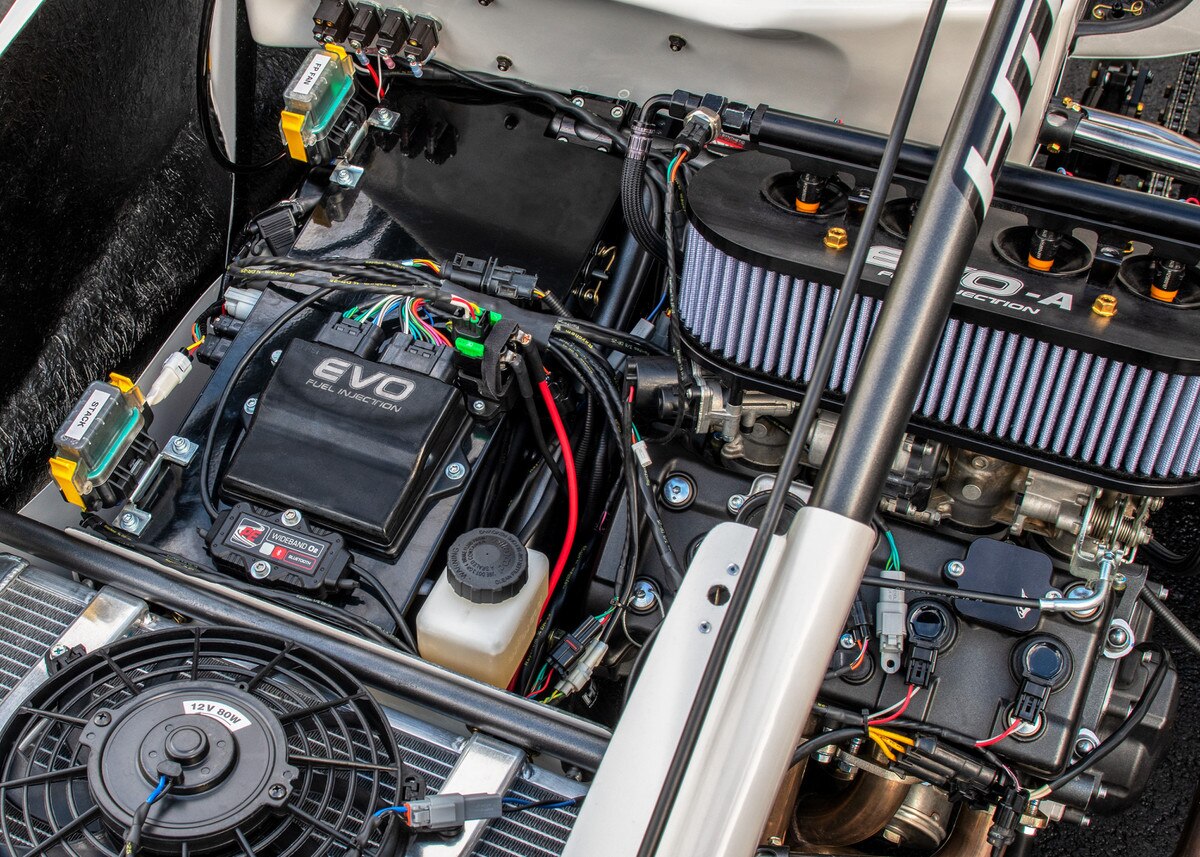

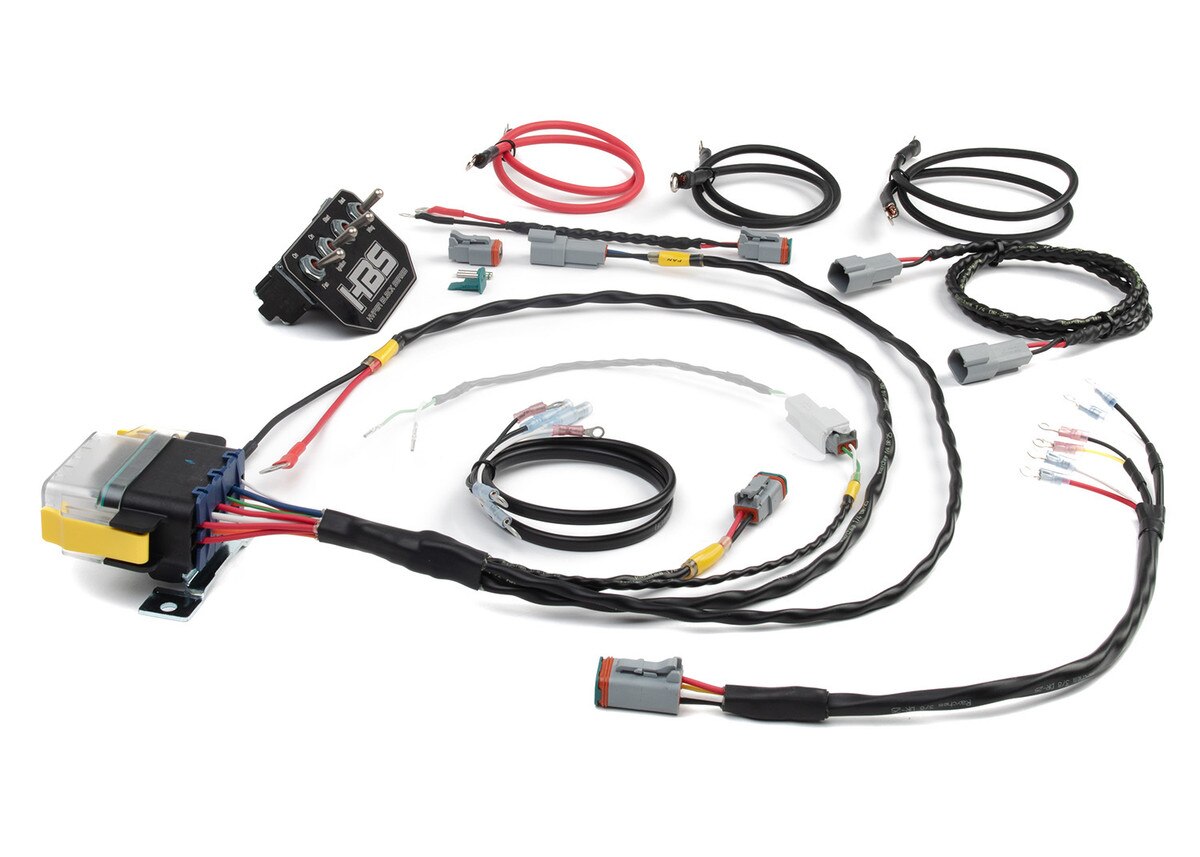

This kit includes:

• 608-0201 Engine Harness to Switch Panel Harness
• 608-0301 Raychem Fuel Pump Harness
• 608-0311 Raychem Fuel Pump Pigtail
• 608-4191 Fuel Pump and Fan Relay Box
• 608-050 Electric Wing Adjuster Harness Short
• 600-33101 Sealed Ignition Switch (2)
• 30-215 Sealed Wing Adj. Switch
• 600-340 Sealed Starter Switch
• 608-113 Negative Battery Cable 30", Black
• 608-112 Negative Battery Cable 24", Black
• 608-102 Positive Battery Cable 24", Red
• 608-005 HBS 4 Switch Plate

  Fuel Pump Relay Signal Wires in ECU’s (green wire on pigtail)

Yamaha R6 ’03-’05 - Pin 32 (OEM wire color - light green)

Yamaha R6 ’08-’16 - Pin 23, left connector (OEM wire color - blue/yellow)

Yamaha R6 ’17 & Up - Pin 30, right connector (OEM wire color - blue/white)

Suzuki GSX-R ’08 & Up - Pin 4, left connector (OEM wire color - yellow/black)

Kawasaki ZX-6R ’05-’06 - Pin 4, left connector (OEM wire color - brown/yellow)

Kawasaki ZX-6R ’09-’12 - Pin 12, right connector (OEM wire color - brown/yellow)

Kawasaki ZX-6R ’13-’18 - Pin 7, right connector (OEM wire color - brown/yellow)

PE3 - Digital output 1 Pin 11, left connector (Hyper wire color - light green)

Fan Relay Signal Wires in ECU’s (white wire in pigtail)

Yamaha R6 ’03-’05 - Pin 42, (OEM wire color - green/yellow)

Yamaha R6 ’08-’16 - Pin 5, left connector (OEM wire color - blue/yellow)

Yamaha R6 ’17 & ’Up - Pin 20, right connector (OEM wire color - green/yellow)

Suzuki GSX-R ’08 & ’Up - Pin 6, left connector (OEM wire color - green/red)

Kawasaki ZX-6R ’05-’06 - Pin 6, left connector (OEM wire color - black/blue)

Kawasaki ZX-6R ’09-’12 - Pin 13, right connector (OEM wire color - black/blue)

Kawasaki ZX-6R ’13-’18 - Pin 17, left connector (OEM wire color - black/blue)

PE3 - Digital output 2 Pin 2, left connector (Hyper wire color-white)
