Pinned 5/8" Clamp for wing motor
Details

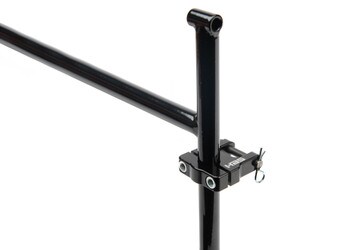

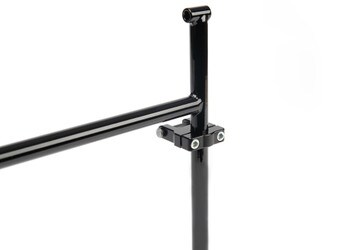

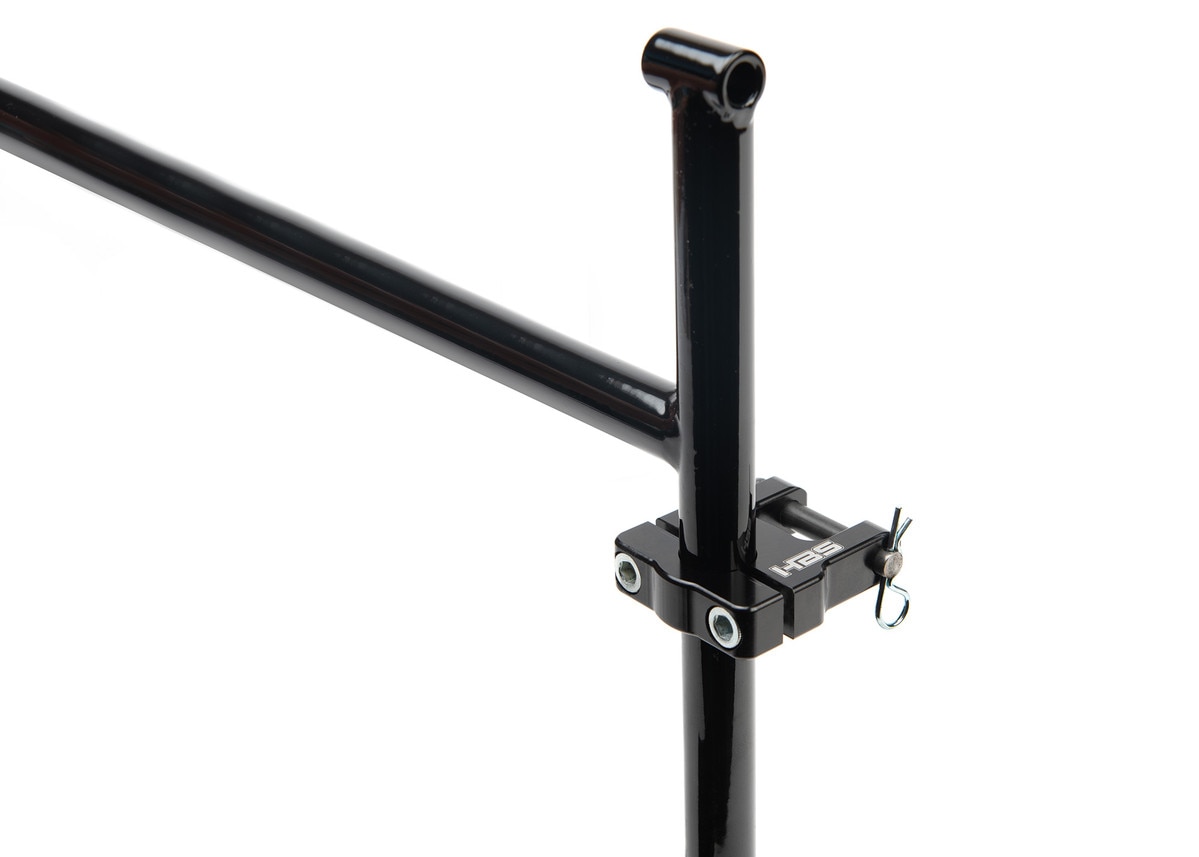

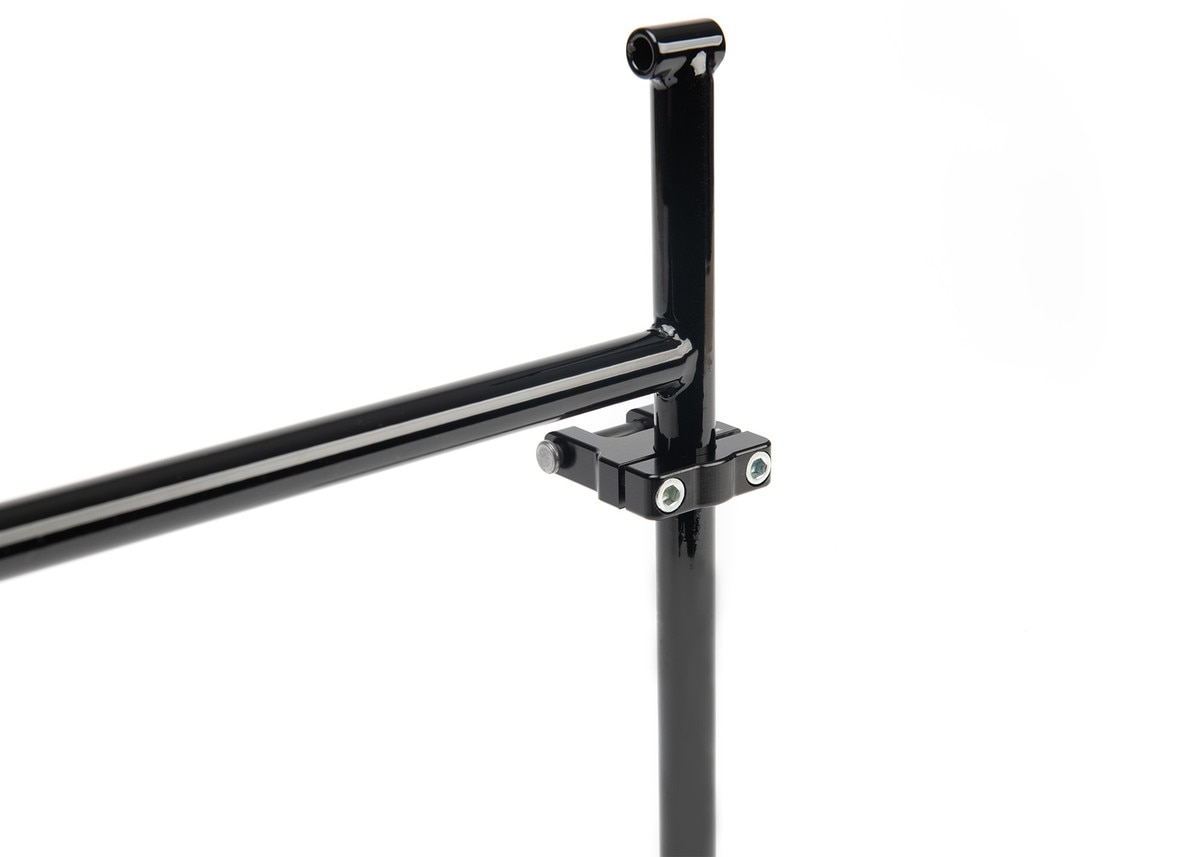

This clamp enables the wing adjuster motor to mount to your 5/8" rear wing upright (Hyper Standard). It can also have many other imaginative uses. Such as on the nerf bar to hold a chain tensioner spring.

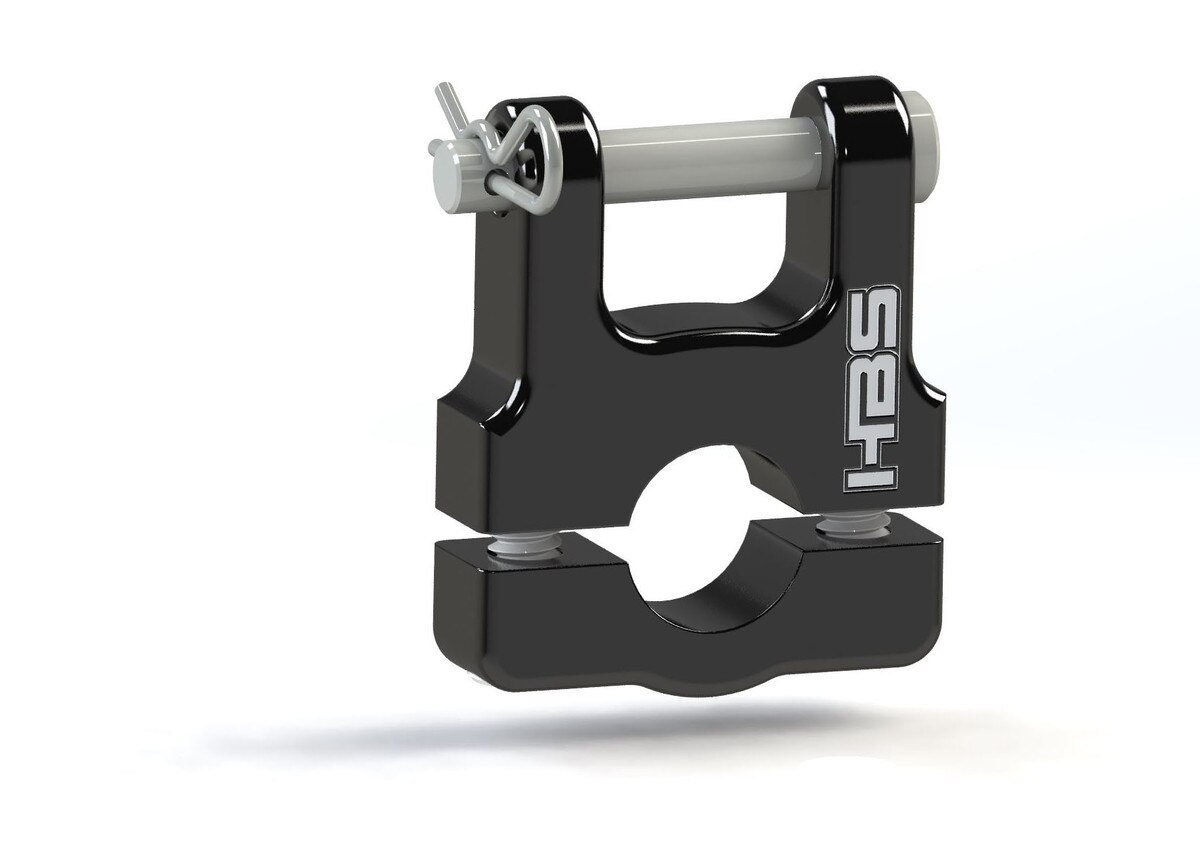

This design uses a clevis pin with a hairpin clip through two bosses machined into the clamp body to hold the wing motor in place. This design is stronger and enables the quick removal of the wing motor when switching from winged to wingless racing.
It allows you to change the position of where the wing mounts on the rear wing upright. This can be useful for eliminating binds and maximizing the distance traveled by the wing motor.
This design uses a clevis pin with a hairpin clip through two bosses machined into the clamp body to hold the wing motor in place. This design is stronger and enables the quick removal of the wing motor when switching from winged to wingless racing.
It allows you to change the position of where the wing mounts on the rear wing upright. This can be useful for eliminating binds and maximizing the distance traveled by the wing motor.
This clamp will only fit a tube diameter size of 3/4".
Hardware:
- 1/4-20 x 7/8" SHCS (2)
- 30-2081 Pin (1)
- 381-106 Hair Pin Clip (1)
