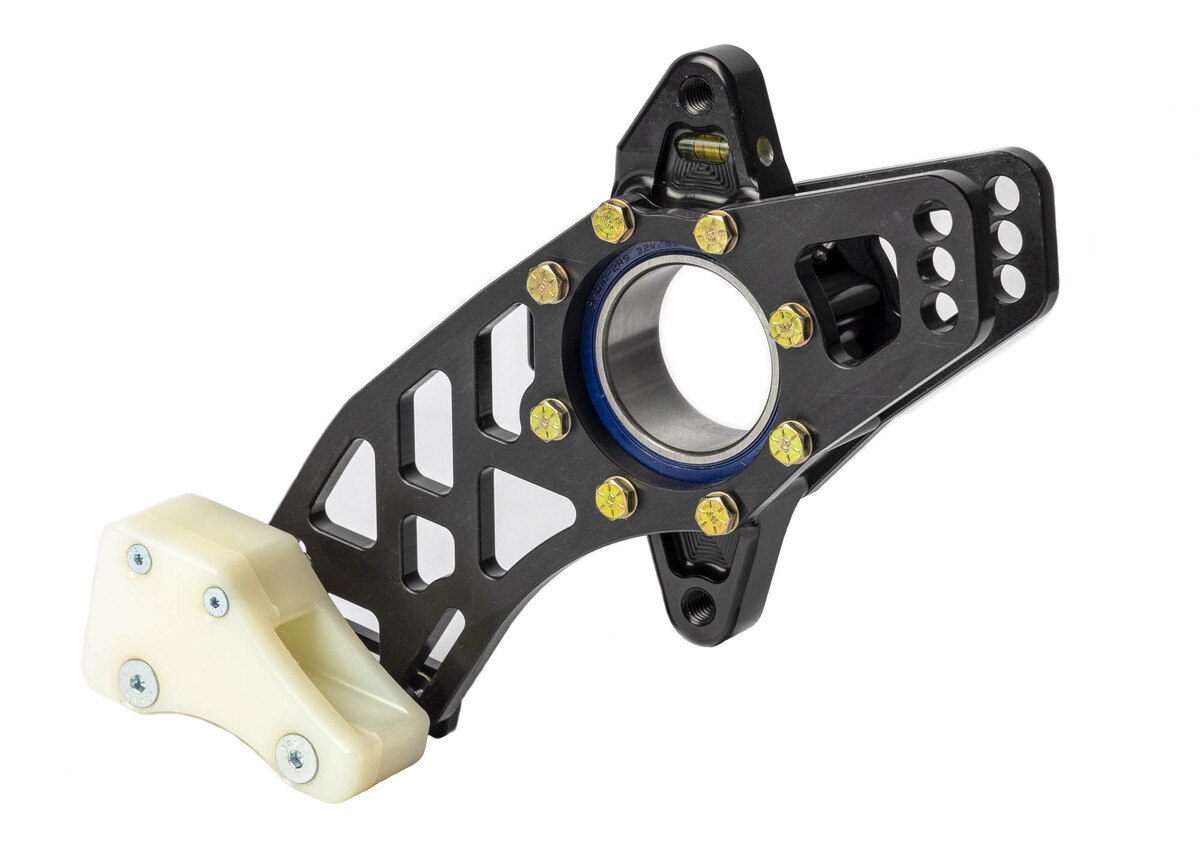

1-3/4" X7LCS270 Bearing Carrier Short Wheelbase
Details
For 1-3/4" Splined Rear Axle. Fits the X7 Chassis on the left side. Fits 33-48 tooth sprockets, generally on 270cc. Use when configuring for the short wheel base, rear axle forward location. Fits Jacob's ladder or panhard bar configuration.
CNC machined Bearing Carrier, includes double row angular contact bearing, bubble level, and grease fitting. Control arm mount distance is 6".
We recommend the bearings be greased before the first use with Champion Grease 74-332 or Daylube Nanoceramic Racing Grease 77-800.
Uses (8) 1/4-20 x 2" HHCS.
CNC machined Bearing Carrier, includes double row angular contact bearing, bubble level, and grease fitting. Control arm mount distance is 6".
We recommend the bearings be greased before the first use with Champion Grease 74-332 or Daylube Nanoceramic Racing Grease 77-800.
Uses (8) 1/4-20 x 2" HHCS.
(2) 5/16-18 x 4" FHCS to hold Chain Guide Block when using 1-1/4" or 1-1/2" long spacers with (2) 5/16" Hard Washers. For the 1" or 3/4" long spacers, use (2) 5/16-18 x 3-1/2" FHCS and for 1/2" or 5/16" spacers, use (2) 5/16-18 x 3" FHCS.
